When selecting a scissor lift table for warehouse or industrial use, the rated load capacity is often the first specification buyers check. However, a lift table rated for 1,000 kg is not necessarily suitable for every load weighing 1,000 kg.
The actual application matters. A pallet positioned centrally on the platform creates a different loading condition from a heavy machine placed near one edge. A load rolling onto the platform introduces different forces from a stationary load, while a forklift driving onto a lift table creates additional structural and operational risks.
Understanding scissor lift table load capacity requires evaluating not only the total weight but also how the load is distributed, how it enters the platform, and how the equipment is operated.
This guide explains the differences between uniformly distributed loads, centred loads, edge loads, rolling loads, and forklift access. It also clarifies the limitations of rated capacity and why a standard scissor lift table must not automatically be treated as a drive-on loading platform.
The rated load capacity is the maximum load specified by the manufacturer for a defined equipment configuration and permitted operating conditions.
Depending on the design, the rating may apply to a particular load distribution, platform position, lifting range, and operating mode.
It should not be interpreted as an unrestricted allowance to place any load of the same weight anywhere on the platform.
A scissor lift table's rated capacity must be considered together with its technical documentation, including:
Permitted load distribution
Platform dimensions
Maximum lifting height
Loading and unloading conditions
Operating restrictions
Applicable safety requirements
If the intended application differs from the conditions covered by the manufacturer's specifications, the supplier or a qualified engineer should confirm suitability before use.
Consider two loads, each weighing 800 kg.
One is a pallet with goods distributed evenly across its base. The other is a compact steel component with most of its weight concentrated near one corner.
Although both loads have the same total mass, their effects on the platform and lifting mechanism may differ considerably.
The concentrated load may create higher local forces, greater bending demands, or uneven loading across the scissor mechanism. The suitability of the table therefore depends on the load's footprint, centre of gravity, support points, and permitted loading arrangement.
A uniformly distributed load is spread relatively evenly across a defined supporting area of the platform.
Typical examples include:
Pallets carrying evenly distributed cartons
Containers with balanced contents
Workpieces supported across multiple points
A uniformly distributed load generally avoids the extreme concentration of force associated with a small, heavy object resting on a limited area. However, the distribution must still fall within the manufacturer's specified loading conditions.
Consider the load's footprint and the positions at which it contacts the platform.
A pallet may appear evenly loaded from the outside but contain heavy components concentrated at one end. Similarly, a long product supported at only two points may impose concentrated forces even if its overall weight is distributed along its length.
The actual support arrangement matters more than appearance alone.
A centred load has its centre of gravity positioned approximately over the intended central loading area of the platform.
Keeping the centre of gravity within the permitted area can help maintain balanced loading and reduce uneven forces on the lifting mechanism.
The centre of gravity determines how the load's weight is distributed relative to the supporting structure.
If the load shifts significantly to one side, the reactions at the supports may become uneven. Depending on the design, this can increase loads on particular arms, rollers, bearings, or structural connections.
For this reason, buyers should confirm the permitted centre-of-gravity location and loading arrangement rather than relying only on the total weight.

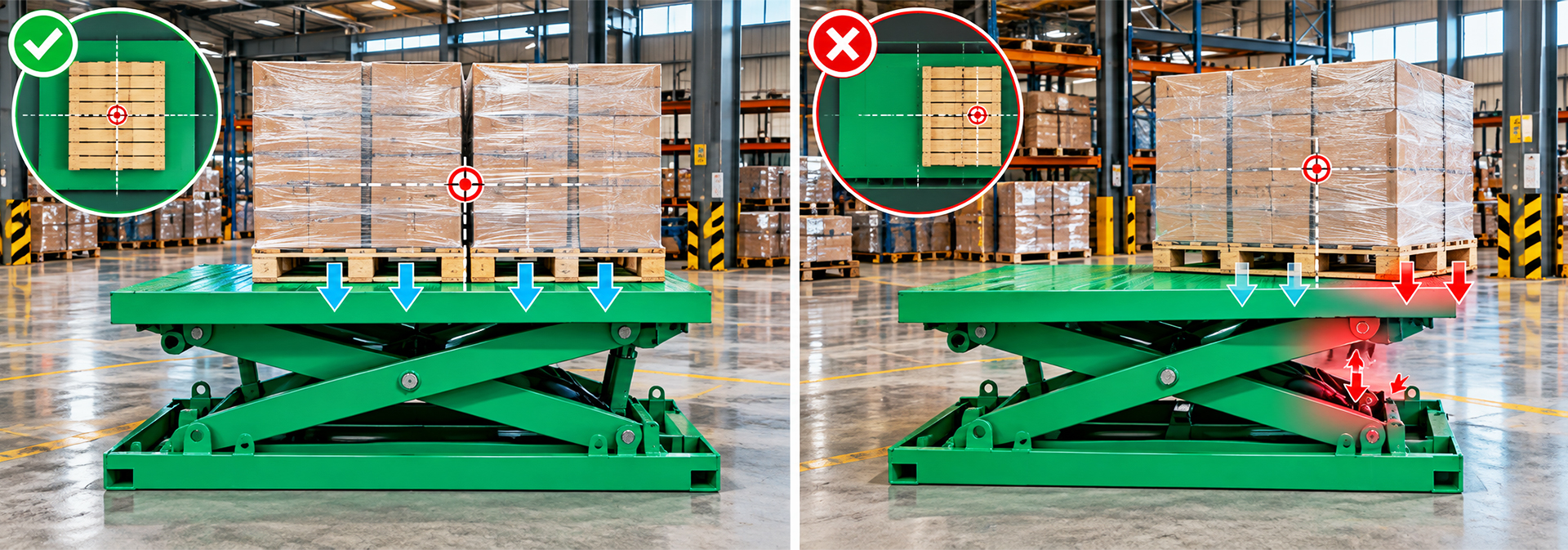

An edge load occurs when a significant portion of the load is positioned near one edge of the platform.
This may happen when:
A pallet is placed too close to one side
A long workpiece extends beyond its intended support area
A heavy machine is loaded near a platform corner
Goods are positioned asymmetrically during transfer
Edge loading can produce uneven forces even when the total load remains below the stated rated capacity.
The load's position affects the forces acting on the lift table's structure.
Depending on the design, an off-centre load can increase bending moments and create unequal reactions within the scissor arms and support points.
A table rated for a given load under centred conditions should not be assumed capable of supporting the same weight at the edge.
The supplier needs to understand:
Total load weight
Load length and width
Centre-of-gravity position
Contact points between the load and platform
Direction and degree of offset
Required lifting height
For unusual or heavily offset loads, the permitted loading arrangement must be confirmed through manufacturer documentation or an engineering assessment.
Long products, steel profiles, machinery components, and oversized workpieces may extend beyond the platform footprint.
The key concern is not only the overhang itself but also how the load is supported and how its centre of gravity changes as the platform moves.
A specially designed platform, additional support arrangement, or alternative lift configuration may be necessary. Such modifications should be engineered and approved rather than improvised at the installation site.

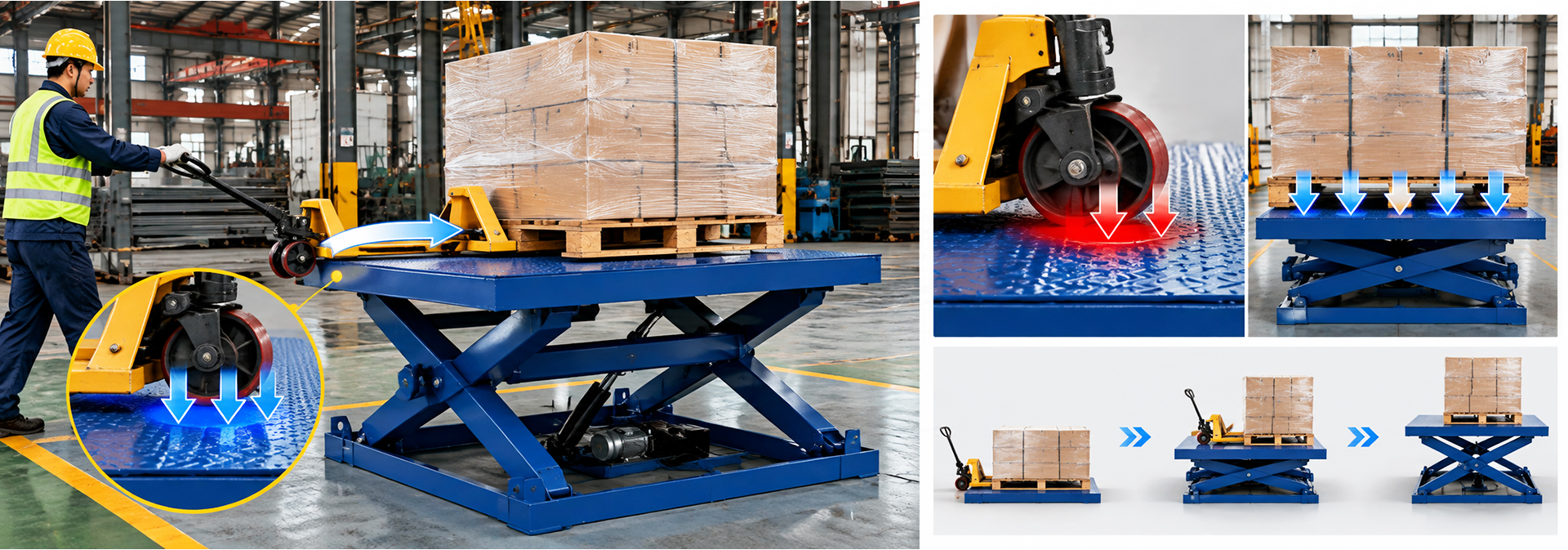

A rolling load occurs when goods or handling equipment move onto or across the lift table.
Examples include:
Pallets transported by pallet trucks
Trolleys entering the platform
Containers transferred on rollers
Loads moving between conveyors and lift tables
A rolling load introduces a different loading condition from a stationary object that is already positioned on the platform.
When a pallet truck or trolley crosses onto a platform, the load may transfer progressively from the floor to the lift table. During this transition, forces can be concentrated around the entry edge or supporting wheels.
The resulting forces depend on factors such as:
Total moving mass
Wheel positions and wheelbase
Entry speed
Platform height difference
Ramp or transition geometry
Load distribution
An uneven transition or sudden impact can create additional forces that are not represented by a simple static weight rating.
Tell the supplier how the load enters and leaves the platform, including the handling equipment used.
Provide the weight and dimensions of the trolley or pallet truck, the maximum load, wheel arrangement, and expected transfer conditions.
The manufacturer should confirm whether the lift table is suitable for the intended rolling load and whether additional entry provisions or operating restrictions are required.

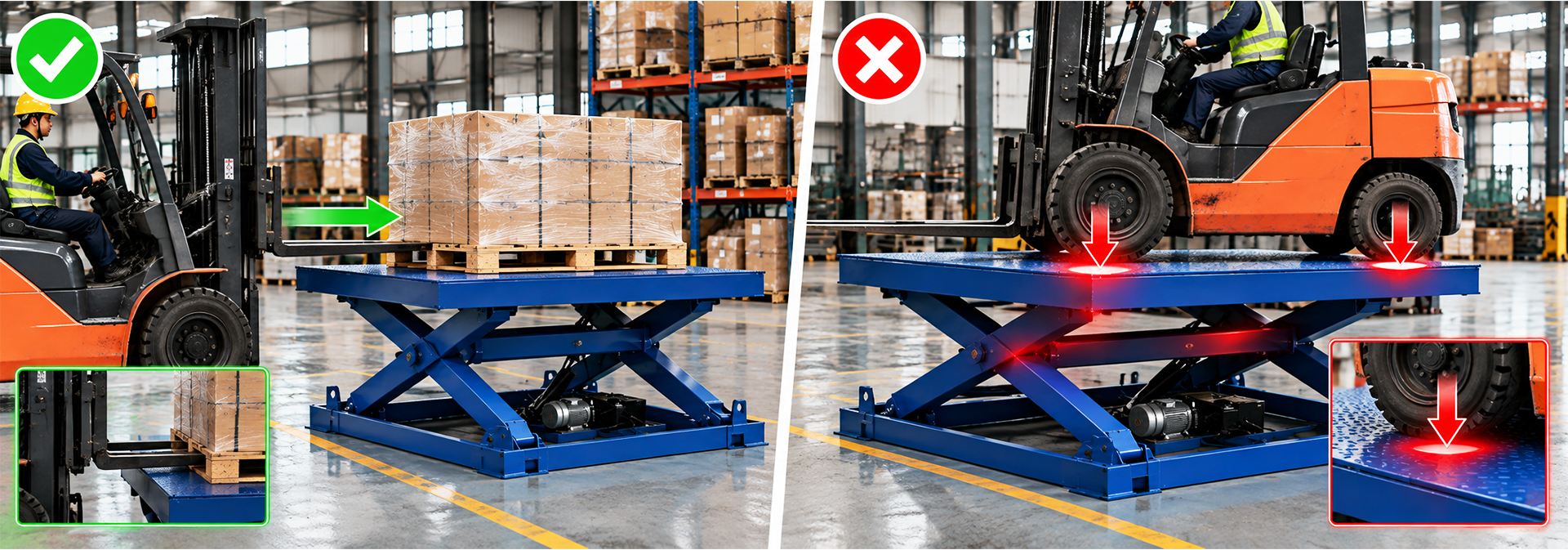

Forklifts are heavy industrial vehicles. When a forklift approaches or places a load on a lift table, the table may be subjected to concentrated wheel loads, dynamic forces, and local stresses that differ from those generated by a stationary pallet.
Even if the forklift's load and the goods together appear to be within the table's rated capacity, that does not establish that the platform can support the forklift itself.
The relevant loading condition includes the vehicle's own weight, its wheel loads, the position of its wheels, and the effects of movement and braking.
A forklift does not distribute its weight evenly across the entire platform.
Its axle loads and wheel contact areas determine where forces are applied. When carrying a load, the weight distribution between the front and rear axles also changes.
The platform and lifting structure must be assessed for the actual wheel loading and the intended vehicle movement.
If a forklift must drive onto the platform, provide the supplier with:
Forklift model and operating weight
Maximum axle loads, where available
Forklift dimensions and wheelbase
Maximum carried load
Entry direction and travel path
Required operating height during access
The supplier must explicitly confirm that the proposed design is intended for this operation.
A standard scissor lift table is generally designed to raise and lower goods under its specified loading conditions, not to serve as a vehicle access platform.
Driving a forklift onto an unapproved table may overload its structure, damage the platform or lifting mechanism, destabilize the equipment, or create a serious safety hazard.
If vehicle access is required, use a purpose-designed, appropriately rated system with documented provisions for the intended vehicle loading and movement.
A standard scissor lift table must not be used as a drive-on platform unless the manufacturer has explicitly designed and approved it for that application.
A load that appears properly positioned at the lowest platform height may behave differently during lifting if it is unstable, inadequately secured, or subject to movement.
As the platform rises, any load shift can change the centre of gravity and increase the risk of instability.
The load must remain within the manufacturer's permitted configuration throughout the lifting cycle.
Tall loads, narrow containers, and products with a high centre of gravity may require additional consideration.
Important factors include:
Overall load height
Base dimensions
Centre-of-gravity height
Potential for movement during acceleration or stopping
Any external forces applied during transfer
If the load is unstable, the solution may require a different support arrangement, securing method, or equipment configuration rather than simply increasing rated capacity.
A load diagram or loading specification illustrates the permitted loading conditions for a particular lift table model.
Depending on the manufacturer, it may identify the rated load, platform dimensions, loading distribution, centre-of-gravity limitations, or restrictions on particular operating conditions.
A load diagram should be interpreted alongside the product's technical documentation. It is not necessarily a universal representation of every load configuration the equipment can handle.
Two scissor lift tables may have the same nominal capacity but different platform sizes, scissor geometry, structural arrangements, or operating restrictions.
The allowable loading conditions of one model should not be transferred to another model without supporting documentation.
For procurement and engineering approval, request the technical drawing, rated capacity information, permitted load distribution, and relevant operating limitations for the exact model being considered.
A warehouse needs to raise a pallet weighing 750 kg. The pallet is positioned centrally, and the goods are distributed across its base.
The initial assessment should confirm the total weight, pallet dimensions, centre of gravity, platform size, and required lifting height.
If these conditions match the manufacturer's approved loading arrangement, the supplier can assess whether the selected capacity is suitable.
A machine weighs 750 kg but must be positioned close to one side of the platform to align with a production line.
Although its weight is identical to the pallet in the previous example, the off-centre position may produce a different structural response.
The supplier should evaluate the machine's centre of gravity, support points, and offset before confirming suitability. The nominal rated capacity alone is insufficient.
A pallet weighing 600 kg is moved onto a low-profile lift table using a pallet truck.
The assessment must include the pallet and its contents, the handling equipment, the wheel arrangement, and the transition from the floor to the platform.
The selected table must be approved for the intended rolling load and loading method. Its static rated capacity does not independently establish suitability for every entry condition.
A warehouse proposes driving a forklift carrying a 500 kg pallet onto a lift table rated for 1,000 kg.
The fact that the pallet weighs less than the table's rated capacity does not make the operation acceptable. The forklift's own weight, wheel loads, and dynamic forces must also be considered.
Unless the table is specifically designed and approved for forklift access, a different solution is required.
Not necessarily under every loading arrangement. The rating applies to the manufacturer's defined operating conditions. Load distribution, centre-of-gravity position, and loading method must also be considered.
A centred load is generally more balanced than a comparable off-centre load, but it must still remain within the platform's rated capacity, permitted loading area, and other operating limits.
Only if that loading arrangement is explicitly permitted by the manufacturer or supported by an appropriate engineering assessment. The nominal capacity alone cannot confirm suitability for concentrated corner loads.
This depends on the table's lowered height, platform design, entry arrangement, and approved rolling-load conditions. Confirm these details before using the equipment.
Only if the table is specifically designed and approved for that operation. A standard goods-lifting table should not be assumed capable of supporting a moving forklift.
Provide the maximum load weight, dimensions, centre-of-gravity location, support points, loading method, handling equipment details, and required lifting range. If rolling loads or forklift access are involved, include the relevant vehicle and wheel-loading information.
Selecting a scissor lift table based solely on its rated weight can lead to an unsuitable or unsafe installation. Uniformly distributed loads, off-centre loads, rolling loads, and forklift access all place different demands on the equipment.
The most reliable selection process evaluates the total load, its centre of gravity, the platform dimensions, the loading method, and the manufacturer's permitted operating conditions.
For warehouse and industrial applications, the rated capacity should always be treated as part of a complete technical specification—not as an unrestricted weight limit.
By confirming the actual loading conditions before ordering, buyers can select a scissor lift table that is better matched to the application, reduces the risk of equipment damage, and supports safe, reliable material handling.
