Views: 0 Author: Site Editor Publish Time: 2026-08-24 Origin: Site

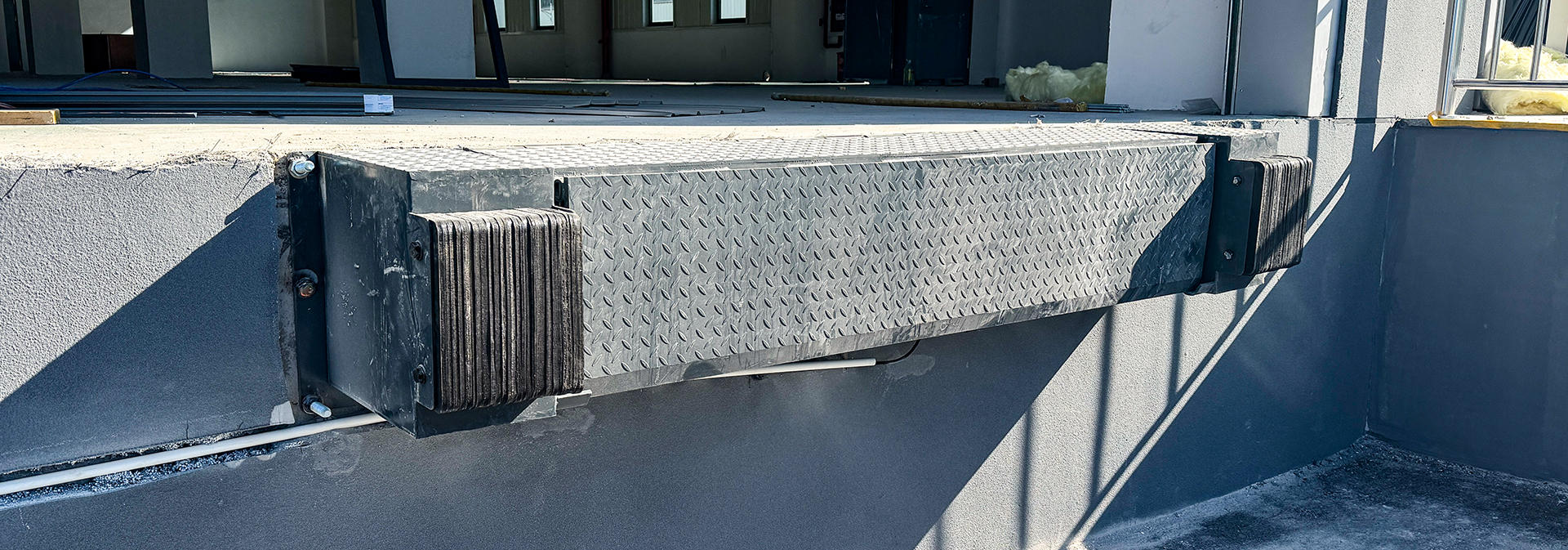

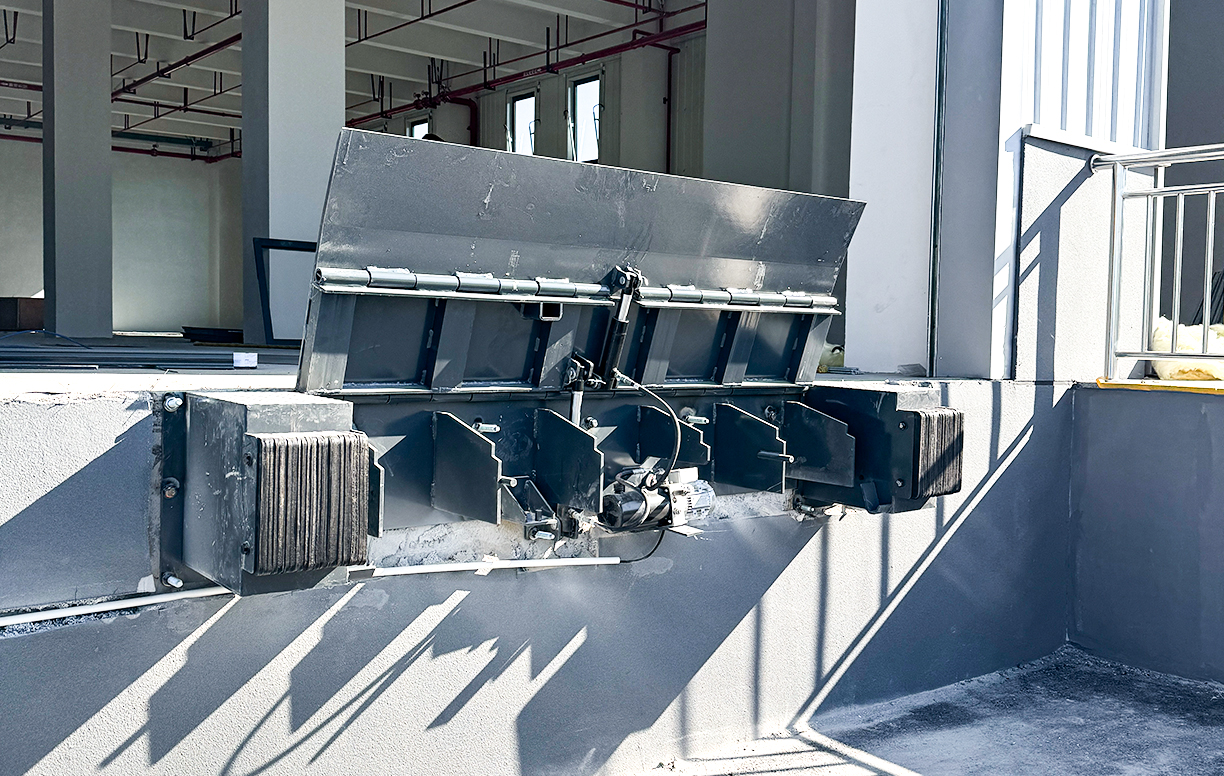

A hydraulic edge of dock leveler is mounted directly to the loading dock face rather than installed inside a traditional recessed pit. This makes it a practical solution for facilities where a full pit-mounted dock leveler is unnecessary or difficult to install.
However, the simpler mounting structure does not mean installation accuracy is less important. The leveler must be positioned correctly, securely anchored to the dock structure, and properly coordinated with the dock bumpers so that trailer contact forces and loading forces are transferred safely.
The installation procedure covered in this guide focuses on mechanical positioning, anchor installation, bumper alignment, welding, and final fastening.
During normal loading operations, forklifts and pallet trucks repeatedly cross the leveler while trailers contact the dock bumpers.
These forces are transferred through the platform, mounting plate, anchors, bumper assemblies, and dock structure. Small installation errors can therefore become more significant after repeated use.
The leveler should sit evenly against the dock face and remain properly aligned with the loading position.
If one side is mounted higher or farther forward than the other, the platform may operate unevenly or create an inconsistent transition between the dock and trailer.
The installation shown in the supplied instructions uses both M20 expansion bolts and chemical anchors at the main leveler mounting area.
Proper drilling, hole cleaning, anchor positioning, and final tightening are therefore important parts of the installation rather than simple finishing steps.
Before lifting the leveler into position, the installation team should make sure the dock face and working area are ready for the equipment.
The mounting surface should be accessible, and there should be enough space for a forklift, drill, impact wrench, welding equipment, and other installation tools.
The edge of dock leveler transfers operating loads directly into the dock face.
The mounting area should therefore provide a stable base for drilling and anchoring.
Loose material, packaging, temporary structures, or other equipment should be moved away before positioning begins.
A clear working area makes it easier to align the leveler accurately and gives installers enough access for drilling and fastening.
The supplied instructions show the leveler being anchored directly into the prepared dock structure.
Before installation, visibly loose or badly damaged concrete around the proposed fixing points should be addressed so that the anchors are not installed into an unstable surface.
The installation sequence shown in the manual uses a forklift, electric drill, impact wrench, blower, welding machine, cutting machine, M20 expansion bolts, and chemical anchors.
Preparing these tools in advance helps avoid moving the leveler repeatedly after alignment has already been established.
The first step in the supplied procedure is to raise the leveler with a forklift and bring it into alignment with the rear edge of the loading dock.
The forklift should support the unit steadily while the installers check its position before drilling begins.
Once the platform has been aligned, the installation moves directly into drilling and initial anchoring.
Having the drill, M20 expansion bolts, and impact wrench ready reduces the chance that the equipment will shift while waiting for tools.
The installation begins by lifting the complete platform with a forklift and positioning it against the dock edge.
This is one of the most important stages because the final anchor positions depend on the initial alignment.
The rear mounting section of the leveler should sit correctly against the prepared dock face.
Installers should check both sides rather than relying on the appearance of only one edge.
Both sides of the leveler should be positioned consistently relative to the loading dock.
Uneven positioning can cause later anchor holes to be drilled in the wrong location and may complicate bumper installation.
The platform should remain supported and should not shift while the first mounting holes are prepared.
This initial position effectively becomes the reference for the remainder of the installation.
After alignment, the instructions call for drilling the installation holes on the left and right sides of the platform.
These first holes are used to establish the platform position before the remaining fixing points are drilled.
Rather than drilling every hole before the equipment is placed, the installation sequence uses the actual platform mounting holes as the drilling guide.
This helps ensure that the anchor positions match the manufactured frame.
The drill should remain aligned with the mounting holes so that the bolts can later pass through the frame without forcing the steel structure sideways.
Poorly positioned holes can make installation more difficult and may introduce unwanted stress when the bolts are tightened.
Once the first holes establish the position, unnecessary movement should be avoided.
If the platform shifts before initial fastening, the drilled holes may no longer align with the steel mounting frame.
The manual then instructs installers to insert M20 expansion bolts into the first mounting holes and tighten them with an impact wrench.
These bolts provide the initial mechanical fixation required before the remaining holes are drilled.
Initial fastening helps prevent the leveler from moving as drilling continues across the complete mounting frame.
This is especially useful because drilling vibration can otherwise disturb the original alignment.
The bolts should be seated correctly inside the prepared holes before tightening begins.
The fixing should pull the mounting frame securely against the dock surface rather than leaving a visible gap.
Installers should continue checking the platform position as the left and right initial bolts are tightened.
If tightening one side noticeably changes the alignment, the position should be corrected before the remaining holes are drilled.
After the leveler is initially secured, the remaining mounting holes can be drilled.
The manual shows installers working across the rear mounting section until all required anchor positions have been prepared.
Using all of the designed fixing points helps distribute operating forces across the mounting structure.
Skipping holes may concentrate loads into fewer anchors than intended.
The steel frame already provides the required fixing locations.
Installers should follow this layout rather than adding or relocating holes without an approved installation reason.
The manual does not specify a numerical drilling depth, so the appropriate depth should follow the supplied anchor system and installation specification.
The important point is that all anchor holes are prepared consistently for the selected fasteners.
After drilling, the instructions specifically require blowing the dust out of all installation holes before chemical anchors are inserted.
This is a small step that can easily be overlooked, but it is important for the anchoring process.
Concrete drilling produces fine dust inside the hole.
If this material remains, it can interfere with proper contact between the chemical anchoring material and the surrounding substrate.
Because multiple anchor holes are drilled across the mounting frame, installers should work systematically from one side to the other.
This reduces the chance that one or more holes are left uncleared before the chemical anchors are installed.
Once cleaned, the holes should not be filled again with debris from nearby drilling or cutting work.
Organizing the installation sequence helps keep the prepared holes ready for the next step.
The supplied procedure next calls for chemical anchors to be inserted into all prepared installation holes.
These anchors become part of the main fixing system for the edge of dock leveler.
Each drilled and cleaned hole should receive the required chemical anchoring component before the threaded rod is installed.
The procedure should be completed carefully across the entire rear mounting frame.
Working from one side of the leveler to the other helps installers confirm that every prepared hole has received its anchor material.
A systematic sequence also makes later inspection easier.
The final step of the manual specifically requires waiting for the chemical anchoring material to take effect before cutting the excess threaded rod.
The exact curing time is not specified in the supplied instructions and should therefore follow the chemical anchor product requirements used on the project.
After the chemical anchors are placed, threaded rods are driven into the installation holes using the impact tool.
This completes the main chemical anchoring connection between the leveler frame and dock structure.
The rod should follow the drilled hole rather than being forced at an angle.
Proper alignment helps the mounting plate sit evenly and avoids unnecessary loading on the steel frame.
The second page of the installation instructions later includes a visual check of the left and right fixing points.
It is therefore useful to verify anchor position progressively rather than waiting until the entire installation is complete.
The installation photographs show the threaded rods projecting outward during assembly.
The excess is intentionally left in place until the anchoring material has cured and the final installation checks have been completed.
Once the main platform is anchored, the installation moves to the left and right dock bumpers.
The manual shows the bumper assembly being supported on a forklift before it is aligned with the leveler.
Dock bumpers are relatively heavy components and need to be held accurately while they are aligned with the platform.
Using a forklift allows the installer to adjust the height and position before welding.
The supplied installation image shows the bumper brought directly against the side of the leveler assembly.
The bumper position should match the intended trailer contact area and remain symmetrical with the opposite side.
Before welding or drilling the final anchor holes, installers should visually compare the left and right sides.
This helps avoid a condition where one bumper projects or sits higher than the other.
After alignment, the instructions require the bumpers to be welded to the platform.
The welded connection forms part of the bumper mounting arrangement shown in the installation guide.
Welding can introduce heat and movement into steel components.
The bumper should remain properly supported and aligned while the connection is made.
Because the next step is a specific inspection of both the bolt positions and welds, alignment should be checked before the weld is completed.
Correcting bumper position is much easier before the full connection is finished.
The manual explicitly instructs installers to confirm that the left and right welds are secure.
The weld should be visually checked for continuity and stability before proceeding to final bumper anchoring.
Before additional drilling begins, the installation instructions include a dedicated inspection step.
This helps confirm that the platform has not shifted and that the bumper assemblies are correctly attached.
Installers should inspect the bolt positions on both sides of the leveler.
The fasteners should remain tight and the mounting frame should sit securely against the dock structure.
A visible gap between the mounting frame and dock face can indicate incomplete fastening or poor surface contact.
Such issues should be corrected before the installation is considered complete.
The left and right bumper connections should appear consistent.
Large differences in position may affect trailer contact and should be corrected before the bumper anchors are installed.
After the bumpers have been positioned and welded, all bumper mounting holes are drilled into the dock structure.
This adds direct mechanical anchoring between the bumpers and the building.
The installation images show multiple fixing holes on each bumper assembly.
These holes should be prepared according to the supplied bumper frame rather than using only one or two convenient locations.
The bumper should remain in its final installed position while drilling.
This allows the hole locations in the concrete to match the mounting holes in the bumper plate.
Drilling vibration and tool movement should not disturb the welded connection.
The bumper should remain properly supported until the anchor bolts are fully installed.
The manual specifies M20 expansion bolts for the bumper mounting holes.
The bolts are inserted and tightened after drilling is complete.
The bumper will receive repeated trailer contact during normal dock operation.
Its bolts, welds, mounting plates, and supporting dock structure therefore need to function as one secure assembly.
The bolt heads and washers should sit correctly against the steel mounting surface.
A bolt that does not seat properly may indicate that the hole or bumper plate is misaligned.
Final tightening can slightly change the position of a steel assembly if one side was not sitting flat.
Both bumpers should therefore be checked again after the expansion bolts have been secured.
The final page of the installation manual specifically states that the chemical anchoring material must be allowed to take effect after installation.
The leveler should not be treated as mechanically complete simply because all visible bolts have been installed.
Chemical anchors require sufficient time to develop their intended fixing performance.
The exact curing time depends on the actual anchoring product and site conditions and is not specified in the supplied manual.
Temperature, anchor product, hole condition, and other factors can influence curing.
For this reason, installers should use the curing information supplied with the chemical anchoring system rather than selecting an arbitrary waiting time.
The purpose of waiting is to allow the anchoring system to develop before the installation is placed into normal operation.
Rushing this stage may compromise the fixing work completed earlier.
After the chemical anchoring material has cured, the installation instructions call for the excess threaded rod projecting from the mounting frame to be cut off with a cutting machine.
This completes the main mechanical installation shown in the manual.
Only the unnecessary projecting length should be removed.
The remaining fastener arrangement should continue to secure the mounting frame correctly.
Cutting produces sparks and heat.
Nearby hoses, cables, painted surfaces, rubber parts, and other components should be kept clear or protected during this operation.
Metal fragments and drilling debris should be removed once installation is complete.
A clean working area makes the final inspection easier and prevents loose material from remaining around the leveler mechanism.
Before the hydraulic edge of dock leveler is placed into service, the complete mechanical installation should be reviewed.
This inspection should follow the same sequence as the installation process so that no fixing point is overlooked.
Inspect all visible fixing points across the rear of the platform.
The frame should remain aligned, securely attached, and free from unusual gaps or deformation.
The initial M20 expansion bolts should remain properly seated after all later installation work has been completed.
No fixing should appear loose or displaced.
Check that the threaded rods are correctly fixed and that the trimmed ends do not interfere with platform movement or nearby components.
The bumpers should be inspected independently because they will receive direct contact from arriving trailers.
Both mechanical anchors and welded connections need attention.
The left and right welds should show no obvious separation after the bumper anchors have been tightened.
The bumper should not move independently from the leveler mounting structure.
Both bumpers should present a consistent contact position to the trailer.
Uneven bumper projection can cause one side to receive most of the trailer impact and may position trailers at an angle.
Many installation problems are caused not by the leveler itself but by shortcuts taken during positioning and anchoring.
The 14-step sequence in the supplied instructions is designed to establish the platform position first and progressively build the final structural connection.
The installation sequence deliberately uses the first left and right holes to secure the platform before the remaining holes are drilled.
Skipping this step may allow the platform to shift during drilling.
Once the initial M20 bolts are installed, the leveler becomes the stable guide for the remaining holes.
This helps preserve alignment throughout the rest of the installation.
The manual includes a separate dust-cleaning step before chemical anchors are installed.
This should not be skipped simply because the holes appear clear from the outside.
Loose dust can remain at the bottom and sides of the drilled hole even when the opening looks clean.
Blowing out each hole prepares it for the following chemical anchoring step.
Once the bumper is welded into position, correction becomes more difficult.
The bumper should therefore be aligned carefully with the platform before welding begins.
The bumper and edge of dock leveler form one loading-dock assembly.
Their relative position is more important than whether the bumper appears level when viewed independently.
The manual places rod cutting at the very end of the procedure, after the chemical anchoring material has taken effect.
Cutting earlier removes adjustment length and may disturb work that has not yet completed its curing stage.
The projecting rods may look unfinished during installation, but they should remain until the anchor system is ready for the final trimming step.
Following the intended order prevents unnecessary rework.
The supplied installation document mainly covers mechanical positioning, anchoring, bumper installation, and final fastening.
It does not provide detailed hydraulic connection, electrical wiring, control programming, or operating-test parameters. These items should therefore follow the separate technical documentation supplied for the specific hydraulic edge of dock leveler.
Before the platform is operated, installers should confirm that no tools, drilling debris, temporary supports, or loose materials remain around the moving mechanism.
The leveler should have enough clear space to complete its intended movement.
No person should stand beneath or directly in front of the moving platform during the first operational test.
The initial movement should be observed from a safe position.
Unexpected noise, frame movement, rubbing, or instability should be investigated before repeated cycling.
Powered operation should not be used to force an incorrectly aligned mechanical installation into position.
After the leveler itself has been commissioned according to its technical documentation, the dock should be checked with the type of trailer it is intended to serve.
The bumper position and leveler reach should work together.
A correctly positioned trailer should contact the bumper arrangement as intended rather than striking one side heavily while leaving a gap on the other.
Uneven contact may indicate a trailer approach or installation alignment problem.

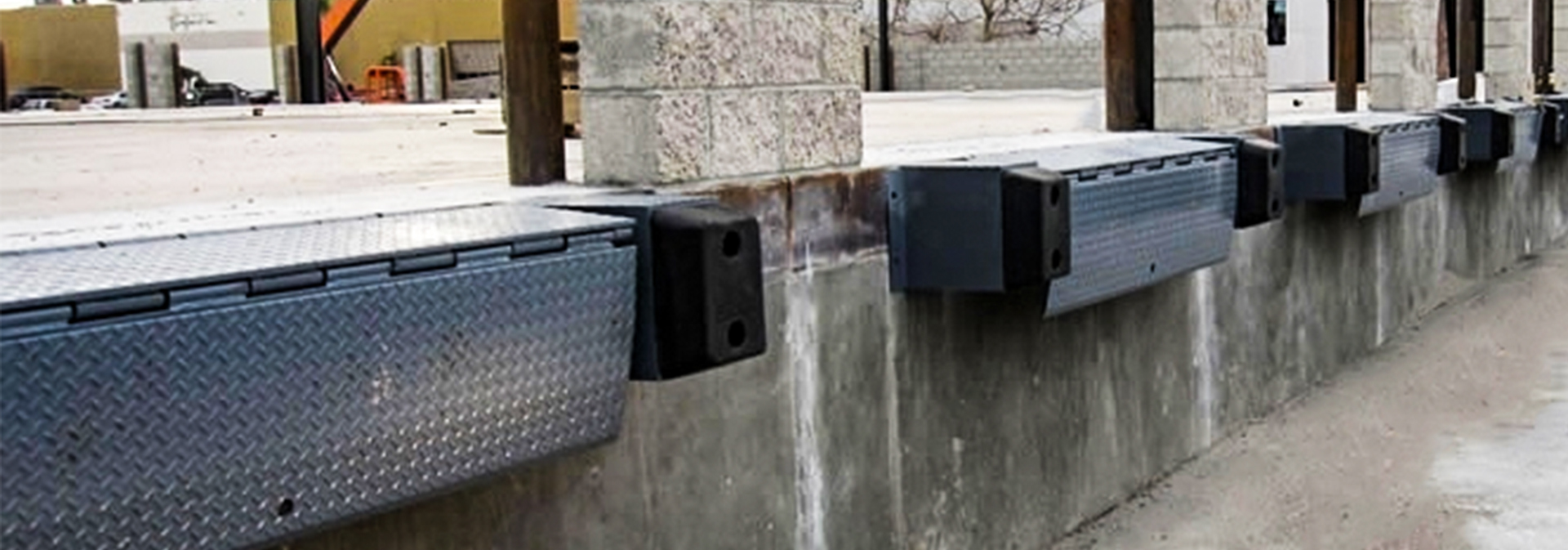

The purpose of the edge of dock leveler is to bridge the working height and gap between the loading dock and trailer.
Before regular use, the platform should be confirmed to provide a stable loading path within the intended operating range.
Even a correctly installed edge of dock leveler should be inspected during service.
Trailer impact, vibration, forklift traffic, weather, and repeated operation can gradually affect bolts, welds, bumpers, and moving components.
Visible bolts and steel connections should be checked periodically for movement or damage.
A change in the position of the mounting frame should be investigated rather than corrected only by repeated tightening.
Movement around bolt heads, enlarged holes, or visible gaps can indicate that the connection requires maintenance.
Continued use with loose fixings can increase stress on the remaining anchors.
The concrete or structural surface around the installation points should remain stable.
Cracking or deterioration around the fixings may require structural evaluation before continued heavy loading.
The bumpers protect the leveler and dock structure from repeated trailer contact.
Their condition directly affects the stopping position of incoming trailers.
If bumper material becomes heavily compressed, damaged, or missing, the trailer may stop closer to the dock than intended.
This can change the relationship between the trailer, leveler, and surrounding dock equipment.
If one bumper wears much faster than the other, the trailer approach or dock alignment may need attention.
Repeatedly replacing the same side without checking the cause may not solve the underlying problem.
Installing a hydraulic edge of dock leveler requires accurate positioning and a carefully controlled anchoring sequence. The supplied installation procedure begins by aligning the platform with a forklift, establishing the first M20 fixing points, drilling and cleaning the remaining holes, and installing chemical anchors.
The installation then continues with dock bumper positioning, welding, inspection, drilling, and M20 expansion-bolt fastening. After the chemical anchors have fully cured according to the anchoring system requirements, the excess threaded rods can be trimmed and the mechanical installation inspected before commissioning.
Following the correct sequence helps maintain platform alignment, secure bumper positioning, and a more stable connection between the edge of dock leveler and the loading dock structure.
