A loading dock in a cold storage warehouse has to do two jobs at the same time.
It must keep goods moving quickly between the truck and the warehouse, while also limiting the amount of cold air that escapes every time the loading bay is used.
These two requirements often work against each other.
Keeping a door open longer makes loading easier, but increases air exchange. Creating a tighter seal improves temperature control, but only if the sealing equipment actually matches the trucks using the dock. A dock leveler can improve forklift access, but it must also be suitable for the trailer height range and working load.
This is why cold storage loading docks should be planned as an operating system rather than as a collection of separate products.
The most effective design begins with a simple question:
What happens from the moment a truck arrives until it leaves?
Many loading dock projects begin by asking what size dock leveler or dock shelter is needed.
That is usually too early.
Before selecting equipment, it is more useful to understand how vehicles, forklifts, doors, and warehouse staff actually move through the loading area.
A typical cold storage loading cycle may look simple:
Truck arrives → truck positions at the dock → loading area is sealed → door opens → dock leveler connects to the trailer → forklift enters → goods are transferred → door closes → truck departs.
But every stage contains variables.
Vehicle dimensions affect almost every major component at the dock.
Truck height influences dock shelter design. Trailer bed height affects dock leveler working range. Vehicle width influences sealing performance. Rear door design may affect how the truck approaches the building.
A cold storage warehouse that receives only one standardized truck fleet is much easier to design than one receiving vehicles from multiple carriers.
It is not enough to know the dimensions of the most common truck.
The more useful data is:
Lowest regular vehicle
Highest regular vehicle
Narrowest regular vehicle
Widest regular vehicle
Minimum trailer bed height
Maximum trailer bed height
These values define the real working range of the loading dock.
If the difference between vehicles is too large, one dock shelter or seal may not perform equally well with every truck.
When people think about cold storage energy loss, they often focus on the industrial door.
The door is important, but it is only one part of the opening.
Once a truck is positioned at the loading bay and the warehouse door opens, significant gaps may remain around the top and sides of the trailer.
Warm outside air can enter through these gaps while cold indoor air escapes.
The effect is not limited to refrigeration efficiency.
Warm air usually carries more moisture than cold air.
When that humid air enters a refrigerated area and contacts colder surfaces, condensation may appear.
At lower temperatures, that moisture may freeze.
This can affect:
Floors
Door areas
Loading equipment
Walls
Traffic paths
Nearby structures
A working loading dock will always involve some air exchange.
The practical objective is to reduce unnecessary exposure.
That means shortening the time the dock remains open and reducing the gaps around the truck while loading is taking place.

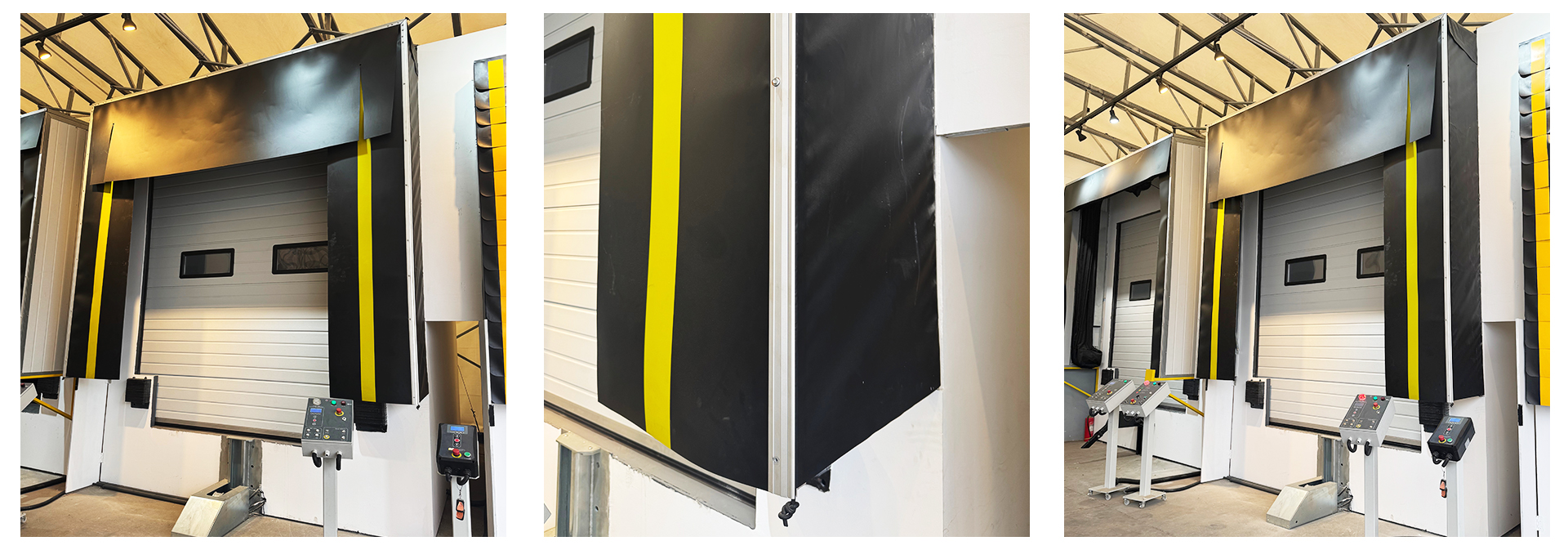

A dock shelter is often one of the most important pieces of equipment in a refrigerated loading area because it forms the interface between the building and vehicle.
However, shelter performance depends heavily on truck dimensions.
Mechanical dock shelters use flexible curtains around the sides and top of the loading opening.
When the vehicle reverses into position, the curtains contact the truck body.
This type of system is often suitable when a warehouse receives a reasonable variety of vehicle sizes.
It can also help reduce exposure to rain, wind, and outside air.
Mechanical shelters can accommodate variation, but they still need to be sized correctly.
If the vehicle is too narrow, too short, or too tall for the shelter design, the contact area may be poor.
This is why shelter dimensions should be based on actual vehicle data rather than a standard catalogue size.
Inflatable dock shelters work differently.
Instead of relying only on flexible curtains, inflatable side and top sections expand toward the vehicle after it has reached the loading position.
This can create closer contact around the truck body.
For refrigerated and cold chain facilities, this can be particularly useful where better environmental separation is required.
A common misunderstanding is that a longer inflatable section can simply accommodate a larger range of truck heights.
In practice, inflatable components have structural and operating limits.
Very long air bags may take longer to inflate, become less stable, or experience higher operating stress.
For this reason, a warehouse with an extremely wide truck height range may be better served by dividing vehicles between different loading bays rather than forcing one shelter to fit every truck.
A dock shelter reduces gaps around the truck.
The industrial door controls the actual warehouse opening.
These two systems should complement each other.
Sectional industrial doors are commonly used at loading bays because they open vertically and do not require a large swing area in front of the opening.
Insulated panels can also help reduce heat transfer when the loading bay is not in use.
For cold storage applications, the door should be selected according to:
Opening dimensions
Temperature difference
Available headroom
Track arrangement
Panel thickness
Required sealing performance
One of the simplest ways to reduce cold air loss is also one of the most overlooked.
The door should not open before the truck is properly positioned and the dock is ready for loading.
A well-planned operating sequence reduces the amount of time the interior is exposed to outside conditions.
Cold storage warehouses often contain several temperature zones.
The exterior loading dock may lead into a staging area, which then connects to a refrigerated room, freezer, processing area, or temperature-controlled corridor.
Each internal opening creates another opportunity for air exchange.
A high speed door can be useful where forklifts or personnel move frequently between two controlled areas.
The advantage is not simply speed.
The main benefit is that the doorway remains open for a shorter period during each traffic cycle.
A standard PVC fabric high speed door may be suitable for some indoor applications.
Where temperature differences are larger, an insulated high speed door may be more appropriate.
Selection should consider:
Operating temperature
Door size
Traffic frequency
Humidity
Required insulation
Adjacent room conditions
Using the same door type throughout the warehouse may be convenient, but it is not always the best solution.
Once the truck is positioned and the loading area is prepared, forklifts need a stable transition between the warehouse floor and trailer.
Truck bed height changes according to vehicle type, suspension, and load.
The dock leveler compensates for this difference.
Hydraulic dock levelers are widely used because they provide controlled platform movement and reduce manual operation.
For most warehouse applications, the platform lifts, the lip extends or rotates into position, and the leveler then rests on the trailer bed.
The correct model should be selected based on more than just platform size.
A pallet may weigh 1,000 kg, but that does not mean a 1,000 kg dock leveler capacity is sufficient.
The actual load passing over the platform includes:
Forklift + Operator + Pallet + Cargo
The repeated movement of the forklift also creates dynamic loading.
Load capacity therefore needs to reflect real operating conditions.
Telescopic dock levelers use an extendable lip that can move farther into the trailer.
They can be useful where precise positioning is important or where different trailer configurations use the same dock.
The extendable lip can also provide more control when pallets are positioned close to the rear of the truck.
This makes telescopic systems especially useful where the loading process requires more control over exactly where the lip contacts the trailer.
However, they still need to be matched to the warehouse platform height and trailer working range.
The truck may appear stationary once it reaches the dock, but movement can still occur during loading.
Forklift movement, suspension changes, or early driver departure can change the truck's position relative to the dock.
A vehicle restraint helps hold the trailer in position while loading takes place.
In a structured loading dock system, the restraint can be combined with signal lights to indicate whether the truck is secured.
This helps create a clearer operating sequence for both warehouse staff and drivers.
Instead of treating every piece of equipment separately, consider the order:
Truck secured → dock prepared → door opened → leveler positioned → loading begins.
When loading is complete, the sequence is reversed.
This makes dock operations more predictable and reduces reliance on individual judgment.
Every truck that reverses toward the loading dock eventually makes contact with the building.
That contact happens repeatedly, often hundreds or thousands of times during the life of a loading bay.
Dock bumpers are designed to absorb part of this impact.
A low-volume cold storage warehouse and a large refrigerated distribution center do not place the same demand on dock bumpers.
The appropriate bumper should be selected according to:
Truck frequency
Vehicle size
Approach conditions
Dock height
Expected impact level
Bumpers do more than protect the wall.
Their thickness also helps determine how far the truck remains from the dock face.
If bumpers become heavily compressed or damaged, the trailer may move closer to the building than intended.
This can affect the dock shelter, dock leveler, and surrounding structure.
A frozen food distribution center may need a different configuration from a chilled dairy warehouse.
A facility handling standardized refrigerated trailers may use different sealing equipment from a warehouse serving many third-party carriers.
This is why project conditions matter more than product names.
A busy refrigerated distribution center may prioritize:
Fast truck turnaround
Hydraulic dock levelers
Vehicle restraints
Inflatable dock shelters
Insulated industrial doors
High speed interior doors
Heavy-duty dock bumpers
When dozens of trucks use the same loading bays every day, the equipment must perform the same operating cycle repeatedly with minimal interruption.
A smaller facility with fewer trucks may have different priorities.
A mechanical shelter, standard hydraulic dock leveler, sectional door, and suitable bumper system may already provide an effective solution.
The goal should be to match the solution to the operating requirements.
Adding unnecessary equipment increases cost and complexity without necessarily improving performance.
Instead of beginning with product specifications, begin with four groups of information.
Confirm:
Dock platform height
Door opening size
Available headroom
Pit dimensions
Wall structure
Installation space
Confirm:
Truck height range
Truck width range
Trailer bed height range
Rear door arrangement
Vehicle frequency
Confirm:
Forklift model and weight
Maximum pallet load
Daily loading cycles
Loading direction
Number of operating shifts
Confirm:
Warehouse temperature
Outside temperature
Humidity
Refrigerated or frozen application
Required environmental separation
Once these values are known, the equipment selection becomes much more accurate.
Instead of asking:
Which dock shelter should we buy?
The better question becomes:
Which shelter can effectively cover our actual truck range at this dock height and temperature?
That difference leads to better engineering decisions.
Cold storage dock problems often come from small assumptions made during the design stage.
This is one of the most common mistakes.
A shelter can look correct on a drawing but fail to seal the actual truck fleet.
Truck information should be confirmed before shelter and seal dimensions are finalized.
The warehouse opening does not automatically determine the correct dock shelter or dock leveler.
Vehicle size, dock height, and trailer position are equally important.
The loading dock exists between these two structures.
Both sides must therefore be considered during design.
Cheaper equipment may appear attractive during project budgeting.
But if the configuration does not match the application, the facility may experience:
Poor sealing
Frequent adjustments
Equipment wear
Longer loading times
Increased maintenance
A simpler system that matches the actual loading operation can be more effective than a highly specified system used in the wrong environment.
A well-designed dock does not depend on one product.
Each component solves a different part of the loading process.
The dock bumper manages vehicle contact.
The vehicle restraint helps control truck movement.
The dock shelter reduces open space around the trailer.
The dock leveler connects the trailer floor with the warehouse platform.
The sectional door closes the building opening.
The high speed door controls internal traffic between temperature zones.
The equipment should be selected so that one component does not interfere with another.
For example:
Shelter dimensions must match truck position.
Bumper thickness affects trailer position.
Trailer position affects leveler reach.
Door opening affects available loading clearance.
Headroom affects door track design.
This is why drawings and vehicle data should be reviewed together before production.
Changing one dimension late in the project may affect several pieces of equipment.
Cold storage loading docks are not simply warehouse entrances.
They are transition zones where transportation, temperature control, forklift traffic, building design, and safety all meet.
A successful dock should allow trucks to connect to the building efficiently without creating unnecessary environmental exposure.
It should provide a stable path for forklifts, accommodate the regular vehicle fleet, reduce gaps around the trailer, and keep the loading sequence predictable.
The right configuration may include:
Hydraulic Dock Leveler
Telescopic Dock Leveler
Mechanical Dock Shelter
Inflatable Dock Shelter
Dock Seal
Vehicle Restraint
Dock Bumper
Sectional Industrial Door
High Speed Door
But the correct combination depends entirely on the project.
EVERBESTEN provides loading dock and industrial door solutions for cold storage warehouses, refrigerated distribution centers, food facilities, and cold chain logistics projects.
Rather than starting with a fixed equipment package, the solution can be developed around the loading bay dimensions, vehicle range, forklift conditions, temperature requirements, and daily operating process.
The most effective cold storage loading dock is not necessarily the one with the most equipment.
It is the one where the truck, dock leveler, shelter, door, restraint, bumper, and warehouse traffic flow are properly matched.
Before selecting products, understand the real vehicle range, temperature conditions, dock dimensions, and loading process.
When these factors are coordinated early, the loading dock can operate more smoothly, reduce unnecessary air exchange, support safer forklift movement, and provide more reliable long-term performance for the cold storage facility.
