Loading docks are critical connection points between transportation networks and warehouse operations. For logistics parks and distribution centers handling continuous inbound and outbound shipments, loading bay design directly affects truck movement, forklift efficiency, warehouse traffic, environmental control, and overall operational safety.
A well-designed loading dock is therefore much more than a platform where trucks stop.
It is a complete operating system that may include:
Loading bay layout
Dock levelers
Industrial sectional doors
High speed doors
Dock shelters
Dock seals
Dock bumpers
Vehicle restraint systems
Traffic lights
Safety equipment
Control systems
Each component must work together according to the building layout, vehicle range, warehouse workflow, loading frequency, climate, and safety requirements.
For a new logistics park, loading dock planning should begin during the building design stage. For an existing distribution center, the same principles can be used when expanding or upgrading loading bays.
This guide explains how to plan loading docks and select suitable loading dock equipment for modern logistics parks and distribution centers.
Logistics parks and distribution centers are designed around material movement.
Products arrive by truck, move through receiving and storage areas, and later leave through outbound loading docks.
Any delay at these transition points can affect warehouse productivity.
The loading bay connects two environments:
External truck transportation
Internal warehouse material handling
The truck has its own height, dimensions, suspension, and positioning requirements.
The warehouse has its own platform height, doors, forklifts, floor level, and traffic routes.
A properly designed dock creates a practical connection between the two.
Loading dock planning should evaluate the complete process:
Truck arrival → truck positioning → vehicle securing → dock door opening → dock leveler deployment → forklift loading or unloading → equipment return → truck departure.
Planning this sequence before equipment selection helps reduce conflicts between different systems.
Large logistics facilities may operate many loading bays simultaneously.
Poorly planned docks can create:
Truck queues
Difficult vehicle positioning
Forklift waiting
Congestion around dock doors
Equipment conflicts
Longer loading times
The number of loading bays should reflect actual operational requirements.
Important factors include:
Number of trucks per day
Average loading and unloading time
Peak traffic periods
Type of goods
Pallet volume
Number of forklifts
Inbound versus outbound ratio
Future warehouse expansion
A logistics park designed only around average daily volume may experience congestion during peak periods.
Loading dock equipment should not be selected before understanding the vehicles that will use the facility.
Truck information is one of the most important inputs during loading bay design.
A distribution center may receive several types of vehicles.
These can vary in:
Overall height
Trailer width
Truck bed height
Suspension type
Rear door configuration
Vehicle length
Design should not be based only on the largest truck.
Collect information about:
Minimum truck height
Maximum truck height
Minimum truck bed height
Maximum truck bed height
Vehicle width
Vehicle length
The equipment should be capable of serving the realistic vehicle range expected at the site.
Logistics operations may change over time.
A distribution center initially designed for one customer or transport company may later receive vehicles from multiple carriers.
Where possible, allow suitable flexibility for:
Different trailer heights
Different vehicle widths
Different truck body configurations
Changing logistics providers
This can reduce the need for expensive modifications when the facility expands.
Loading bay layout affects both truck movement outside the building and forklift operations inside.
A good layout should allow vehicles to approach, reverse, dock, and leave without creating unnecessary conflicts.
Loading bays are commonly arranged along the warehouse exterior wall.
The location should be coordinated with:
Internal receiving areas
Outbound staging zones
Truck roads
Parking areas
Warehouse aisles
Fire exits
Pedestrian routes
Truck maneuvering areas should be clearly organized.
Separating truck routes from employee vehicles and pedestrian movement can make traffic management easier.
Directional markings, signage, barriers, and designated crossing points can support a more organized site layout.
The area in front of loading bays must provide enough room for trucks to reverse toward the building.
The required space depends on:
Vehicle length
Trailer configuration
Road width
Dock angle
Number of adjacent bays
There is no single apron dimension suitable for every project.
Vehicle types and local building conditions should be evaluated during planning.
For large distribution centers serving long trailers, additional maneuvering space may be required.
Dock platform height is one of the fundamental design parameters of a loading bay.
The objective is to create a reasonable relationship between the warehouse floor and the truck bed.
If most trucks have similar bed heights, platform height can be designed around the typical vehicle range.
However, logistics centers often receive different vehicle types.
A dock leveler bridges the vertical difference between the warehouse platform and truck bed.
The required operating range depends on:
Dock height
Minimum truck bed height
Maximum truck bed height
Forklift requirements
The leveler should be selected after these values are confirmed.
Dock levelers create a transition between the loading platform and vehicle.
They are one of the most important pieces of equipment at a loading bay.
OSHA guidance for warehousing specifically recommends installing and maintaining dock levelers appropriate for the vehicles used in receiving and shipping operations.
Hydraulic dock levelers are widely used in logistics centers and distribution warehouses.
The hydraulic system raises the platform and positions the lip onto the truck bed.
Typical benefits include:
Controlled operation
Strong load capacity
Simple operator control
Suitable for regular loading operations
Easy integration with other dock equipment
They are commonly used in:
Distribution centers
Logistics warehouses
Manufacturing facilities
E-commerce warehouses
Food and beverage logistics
Retail distribution centers
They are particularly suitable where standard trailers frequently use the loading bay.
Telescopic dock levelers use an extendable lip that moves horizontally toward the truck.
This allows greater control over where the lip contacts the vehicle bed.
A telescopic design may be useful when:
Different truck sizes use the same dock
Precise lip positioning is important
Vehicle positioning varies
Loads are located close to the rear of the trailer
Greater control of the loading bridge is required
For large logistics parks handling mixed vehicle fleets, this flexibility can be valuable.
Airbag dock levelers use an air-powered lifting system rather than a conventional hydraulic lifting mechanism.
They are another option for standard distribution center loading operations.
Airbag dock levelers may be considered for:
Standard logistics warehouses
Retail distribution facilities
General manufacturing
Food and beverage warehouses
Regular pallet loading operations
The final selection should still consider load capacity, operating frequency, truck height range, and maintenance requirements.
Vertical dock levelers are stored upright inside the warehouse when not in operation.
This allows the loading dock door to remain closed closer to the dock opening before loading begins.
Vertical dock levelers can be considered for:
Cold chain distribution centers
Food warehouses
Pharmaceutical logistics
Temperature-controlled storage
Facilities requiring better dock sealing
They are particularly useful when minimizing unnecessary air exchange at the dock is important.
Selecting the correct capacity requires more than checking cargo weight.
A forklift moving across the dock leveler creates a dynamic load.
Important information includes:
Forklift weight
Maximum cargo weight
Wheel configuration
Number of loading cycles
Type of material handling equipment
For example, a pallet may weigh considerably less than the forklift transporting it.
The dock leveler must support the real operating conditions during loading and unloading.
A suitable safety margin should be determined according to the equipment design, manufacturer recommendations, and project requirements.
The loading dock door separates the warehouse interior from the external loading area.
Industrial sectional doors are commonly used at distribution center loading bays because they open vertically and can provide insulation and sealing when closed.
Benefits can include:
Vertical opening
Efficient use of interior space
Insulated door panels
Good sealing
Different track configurations
Window options
The door dimensions and track system should be reviewed together with:
Dock leveler
Dock shelter
Dock platform
Building structure
Available headroom
Control system
This helps prevent installation conflicts later.
High speed doors may also be used in logistics parks, although their applications are different from standard loading dock sectional doors.
They are particularly useful for internal traffic areas.
Typical locations include:
Warehouse zoning areas
Forklift corridors
Sorting areas
Temperature-controlled zones
Packing areas
Internal vehicle passages
Where forklifts repeatedly move between areas, fast opening can reduce unnecessary waiting.
Automatic activation can include:
Radar
Loop detectors
Pull cords
Remote controls
Access control
The activation method should match actual traffic patterns.
Cold chain and temperature-controlled distribution facilities have additional requirements.
Repeatedly opening a conventional door can increase air exchange.
Depending on the application, solutions may include:
Insulated high speed doors
High speed spiral doors
Specialized cold storage high speed doors
Temperature difference, opening frequency, humidity, condensation, and required insulation should all be considered.

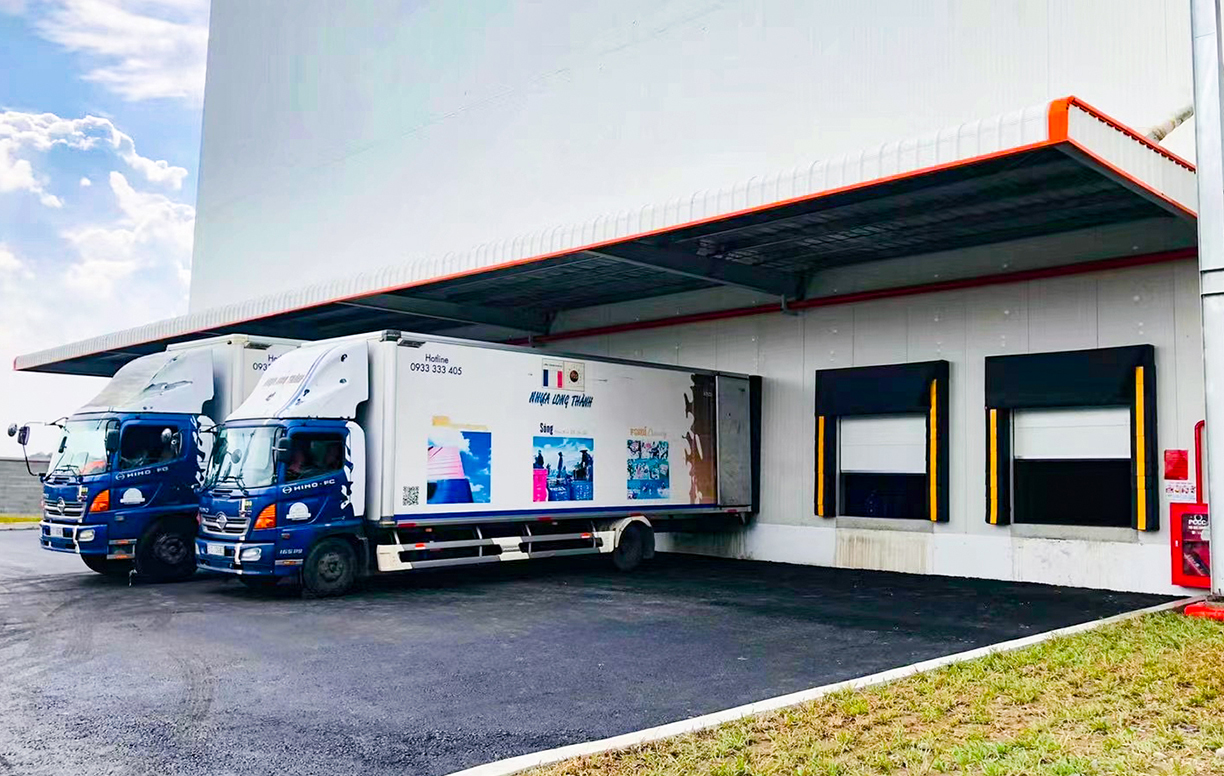

When a truck reaches the loading dock, gaps remain between the vehicle and building.
Dock shelters and dock seals help reduce these gaps.
They can help limit exposure to:
Rain
Wind
Dust
Outdoor temperatures
Mechanical dock shelters use flexible side and top curtains around the vehicle opening.
When the truck reverses into position, the curtains contact the truck body.
Mechanical shelters provide flexibility for logistics centers receiving different vehicles.
Before selection, confirm:
Truck width range
Truck height range
Dock platform height
Door dimensions
Building opening dimensions
Inflatable dock shelters use air-filled cushions that expand around the vehicle after it reaches the dock.
They can provide closer contact around the truck.
Inflatable systems can be considered for:
Cold storage
Food distribution
Pharmaceutical logistics
Temperature-controlled warehouses
Clean logistics areas
Vehicle height variation must be carefully evaluated because the inflatable system must be capable of reaching the actual vehicle range.
Dock seals use compressible pads around the dock opening.
The truck presses against the pads when it reaches the dock.
Dock seals can provide good sealing but should be selected according to the expected vehicle dimensions.
A fleet with very wide variation in truck width and height may require a more flexible system.
Trucks repeatedly approach the same dock throughout the day.
Dock bumpers help absorb contact between vehicles and the building.
Without suitable protection, repeated vehicle contact can damage:
Concrete
Steel structures
Dock equipment
Building walls
Bumper dimensions and installation positions should be coordinated with:
Dock leveler
Truck bed height
Vehicle body
Dock shelter
Building structure
They should be treated as part of the loading bay design rather than as an afterthought.
One important risk during loading is unexpected vehicle movement.
A truck may move away from the dock while a forklift is entering or leaving the trailer.
Vehicle restraint systems are designed to help keep trailers in position during loading operations.
Vehicle restraints can be connected with other loading dock systems.
These may include:
Interior signal lights
Exterior traffic lights
Dock leveler controls
Door controls
Sensors
A coordinated control sequence can help operators understand whether the vehicle is correctly positioned and secured before loading begins.
OSHA guidance recognizes mechanical systems that secure trucks or trailers to loading docks when they provide equivalent protection to wheel chocks under applicable conditions.
Communication between the truck driver and warehouse operator is important.
Traffic lights provide a simple visual method of indicating loading status.
A typical system may use:
Exterior red / green lights for drivers
Interior red / green lights for forklift operators
Depending on project requirements, the signal system can be linked to:
Vehicle restraints
Dock doors
Dock levelers
Sensors
This creates a more structured loading process.
Loading docks combine elevated platforms, trucks, forklifts, workers, and moving equipment.
Safety should therefore be considered from the earliest design stage.
OSHA identifies dock edges, slippery surfaces, truck movement, and forklift traffic as important hazards in loading dock environments.
When a truck is not positioned at the dock, an open dock edge may present a fall hazard.
Possible safety measures can include:
Visual markings
Guard systems
Barriers
Safety gates
Warning systems
Clear floor markings and adequate lighting can help operators recognize dock edges and traffic routes.
OSHA guidance also recommends maintaining safe distances from dock edges and keeping working surfaces clean and clear.
Large distribution centers often have substantial forklift traffic.
Pedestrian routes should be planned carefully around loading operations.
Consider:
Marked pedestrian paths
Guard rails
Crossing points
Warning signs
Visibility at intersections
The objective is to reduce unnecessary interaction between pedestrians and material handling equipment.
Cold storage and refrigerated logistics facilities require more attention to thermal separation.
Open loading bays can allow warm, humid outside air to enter temperature-controlled buildings.
A cold-chain loading bay may combine:
Insulated industrial door
Vertical dock leveler
Inflatable dock shelter
Insulated wall construction
Appropriate control system
The objective is not simply to install one highly insulated product.
Door opening time, sealing around the truck, building insulation, operating procedures, and dock equipment must work together.
E-commerce warehouses often process high shipment volumes with fast turnover.
These facilities may have separate inbound and outbound loading areas.
Important considerations include:
Number of dock positions
Trailer staging
Forklift routes
Parcel handling
Peak season volume
Future expansion
Peak demand may be significantly higher than normal daily volume.
Where possible, loading dock capacity should be evaluated against peak operating periods rather than only annual averages.
Food and beverage logistics can involve temperature-controlled products, frequent deliveries, and higher cleanliness requirements.
Suitable equipment may include:
Industrial sectional doors
High speed doors
Hydraulic dock levelers
Vertical dock levelers
Inflatable dock shelters
In wet or frequently cleaned areas, material selection should reflect the operating environment.
Depending on the project, stainless steel components or corrosion-resistant surface treatments may be considered.
Pharmaceutical warehouses often require controlled environments and stricter operational procedures.
Loading areas may require improved sealing between trucks and warehouses.
An integrated system can combine:
Insulated doors
Vertical dock levelers
Inflatable dock shelters
Interlocked controls
The exact design should follow the facility's environmental and operational requirements.
Modern distribution centers increasingly use connected equipment to coordinate loading operations.
Different components can be connected through a central control system.
For example:
Vehicle secured → door enabled → dock leveler enabled → loading permitted.
Control logic can help prevent certain equipment from operating before required conditions are met.
However, system logic should always be designed according to equipment specifications and site safety procedures.
Large distribution centers may have dozens of loading bays.
Even small amounts of unnecessary air exchange at each opening can affect the overall building environment.
Possible measures include:
Insulated dock doors
Properly fitted dock shelters
Dock seals
Fast-closing doors
Vertical dock levelers for selected applications
Loading dock energy performance depends on more than one component.
The door, shelter, building insulation, number of loading cycles, climate, and HVAC system all influence overall performance.
Dock equipment should be coordinated with the building's electrical design before installation.
Provide information such as:
Supply voltage
Phase
Frequency
Control requirements
Emergency stop requirements
Communication interfaces
For new logistics parks, coordinating electrical conduits and control locations during construction can simplify later installation.
High-volume logistics facilities depend on reliable dock operation.
Equipment downtime at one bay can affect traffic and loading schedules.
Regular inspection may cover:
Platform structure
Lip plate
Hinges
Hydraulic components
Safety devices
Electrical controls
A loading dock operating continuously requires a different maintenance schedule from a dock used only a few times per day.
Follow the manufacturer's inspection and service recommendations.
Regular inspection may include:
Shelter curtains
Inflatable cushions
Door panels
Tracks
Seals
Motors
Sensors
Safety devices
Small damage to curtains, seals, or door components can become more serious if left untreated.
Preventive inspection can reduce unexpected downtime.
Many problems found during installation can be traced back to insufficient planning.
Choosing dock equipment without truck dimensions can lead to poor compatibility.
Vehicle height, width, and bed height should be confirmed before final equipment selection.
Industrial doors and dock equipment require clearances around the opening.
Review:
Side room
Headroom
Ceiling
Structural columns
Pipes
Fire protection systems
Cable trays
before finalizing equipment dimensions.
Distribution centers frequently serve multiple carriers.
The loading bay should accommodate the realistic range of vehicles rather than one ideal truck.
Buying the door, leveler, shelter, and control system independently can create dimensional or operational conflicts.
Whenever possible, coordinate all equipment before production and installation.
Providing complete project information helps equipment suppliers recommend a more suitable solution.
Typical information includes:
Number of loading bays
Dock platform height
Door opening width
Door opening height
Existing pit dimensions
Wall structure
Available installation space
Architectural drawings or loading bay plans can help identify installation limitations before equipment is manufactured.
Provide:
Minimum vehicle height
Maximum vehicle height
Truck width
Truck bed height range
Vehicle type
For renovation projects, site photographs can help suppliers understand existing building conditions.
Consider:
Daily truck volume
Loading frequency
Forklift type
Maximum load
Indoor temperature
Outdoor environment
Required sealing
Safety requirements
Different projects may prioritize:
High throughput
Temperature control
Flexible vehicle compatibility
Safety
Energy efficiency
Initial investment
Long-term maintenance
Understanding the priority helps determine the appropriate equipment configuration.
There is no universal configuration for every logistics facility, but a typical loading bay may include several coordinated components.
A common configuration may include:
Industrial sectional door
Hydraulic dock leveler
Mechanical dock shelter
Dock bumpers
Vehicle restraint system
Traffic lights
This configuration can serve many standard palletized warehouse operations where truck dimensions remain within a relatively predictable range.
For facilities handling more varied truck types, a configuration may include:
Industrial sectional door
Telescopic dock leveler
Adjustable or mechanical dock shelter
Vehicle restraint system
Traffic lights
The telescopic lip and adaptable shelter can provide more flexibility for different vehicle positions and dimensions.
A temperature-controlled distribution facility may consider:
Insulated industrial door
Vertical dock leveler
Inflatable dock shelter
Vehicle restraint system
Integrated controls
This configuration is particularly relevant for cold chain, food, and selected pharmaceutical logistics applications.
The most important information includes building dimensions, platform height, vehicle sizes, truck bed height range, forklift requirements, and loading frequency.
The dock leveler, shelter, bumper position, and overall dock dimensions all interact directly with the truck.
Incomplete vehicle information can result in poor equipment compatibility.
There is no single best type for every project.
Hydraulic dock levelers work well for many standard loading operations.
Telescopic dock levelers can provide greater positioning flexibility.
Vertical dock levelers are useful where environmental separation is especially important.
A dock shelter generally uses flexible curtains around the vehicle, while a dock seal typically uses compressible pads.
Selection depends on:
Truck width range
Truck height range
Required sealing
Loading frequency
Building conditions
Facilities receiving highly varied vehicle sizes often need a more flexible solution.
Requirements vary according to project location, regulations, vehicle types, and site safety procedures.
Vehicle restraints can form part of a wider system that includes wheel control procedures, traffic lights, dock controls, operating procedures, and worker training.
Yes, depending on equipment configuration.
Possible components include:
Industrial doors
Dock levelers
Vehicle restraints
Traffic lights
Sensors
A coordinated control sequence can improve operational organization.
Ideally, loading dock equipment should be considered during the building design stage.
Early coordination allows the project team to confirm:
Dock pit dimensions
Platform height
Door openings
Structural requirements
Electrical supply
Equipment clearances
before construction is completed.
Loading dock design for logistics parks and distribution centers requires more than choosing individual pieces of equipment.
The loading bay should be planned as a complete connection between trucks, buildings, forklifts, workers, and warehouse operations.
An effective loading dock design begins with understanding:
Vehicle dimensions
Truck bed height range
Loading frequency
Warehouse throughput
Forklift requirements
Building dimensions
Environmental conditions
Safety requirements
Future expansion plans
From there, appropriate dock levelers, industrial doors, dock shelters, dock seals, vehicle restraint systems, bumpers, traffic lights, and control systems can be selected and coordinated.
For standard logistics operations, hydraulic dock levelers and mechanical dock shelters may provide a practical solution. Facilities handling more varied vehicles may benefit from telescopic levelers, while temperature-controlled warehouses may require vertical dock levelers and inflatable shelters.
Most importantly, the equipment should not be designed independently.
By treating the loading bay as one integrated system from the beginning of the project, logistics parks and distribution centers can create more efficient truck handling, smoother forklift operations, better environmental separation, and more reliable long-term loading dock performance.
