Planning loading dock and industrial door systems for a pharmaceutical warehouse should begin before equipment specifications are finalized.
The most useful starting point is the facility itself.
Walk from the truck yard toward the loading dock. Observe how vehicles approach the building. Look at the warehouse opening, the platform height, the route taken by forklifts, the distance to temperature-controlled storage, and the points where goods move from one environment to another.
This simple walkthrough often reveals more than a product catalogue.
A pharmaceutical warehouse may need to control vehicle access, temperature changes, forklift traffic, outdoor air infiltration, internal movement, and different storage conditions at the same time. The loading dock and industrial doors sit directly at the points where these conditions change.
Good planning therefore depends on understanding how the warehouse actually operates.
Before looking at the industrial door, start where the truck enters the loading area.
The condition of the vehicle approach affects almost everything that happens later.
Truck size, trailer height, reversing position, loading frequency, and traffic layout all influence the loading dock design.
Ask how vehicles normally enter the yard.
Do they reverse directly toward the dock?
Do several trucks wait at the same time?
Are the vehicles mainly standard trailers, refrigerated trucks, smaller delivery vehicles, or a mixture of different types?
These questions affect the practical design of the loading bay.
Do not rely only on one standard truck drawing.
Collect the dimensions of vehicles that regularly use the warehouse.
Useful information includes:
Minimum vehicle height
Maximum vehicle height
Vehicle width range
Trailer floor height
Rear door arrangement
Number of trucks handled each day
The difference between the smallest and largest regular vehicles is particularly important.
A loading dock designed only around the most common truck may perform poorly when a significantly lower or higher vehicle arrives.
The final truck position determines how the vehicle connects with the building.
This position affects the dock shelter, dock bumper, dock leveler, vehicle restraint, and door opening.
Dock bumpers help absorb repeated contact when trucks reverse toward the warehouse.
But they also influence the stopping distance between the trailer and the dock structure.
That distance matters.
If the vehicle stops too close to the building, other dock components may not operate as intended.
If it stops too far away, the dock leveler lip may have insufficient contact with the trailer.
Bumper design should therefore be reviewed together with:
Dock leveler dimensions
Shelter position
Vehicle restraint location
Trailer rear structure
Platform height
Loading dock equipment should not be positioned independently on separate drawings.
The complete truck-to-building relationship should be checked as one system.
Once the vehicle position is understood, look at the space around the trailer.
When a truck is parked against the building, there will usually be gaps around the top and sides.
For pharmaceutical warehouses, these gaps may expose the receiving area to outside air, humidity, dust, rain, and temperature changes.
Not every pharmaceutical loading dock requires the same level of sealing.
A general ambient warehouse may have different requirements from a facility handling temperature-sensitive pharmaceutical products.
The shelter type should match both the environmental requirement and the truck fleet.
Mechanical dock shelters use flexible top and side curtains that contact the vehicle when it reverses into position.
They are often suitable where:
Vehicle dimensions vary within a reasonable range
Weather protection is required
The facility wants a flexible truck interface
Extremely tight vehicle contact is not necessary
Inflatable dock shelters use air-filled top and side sections that expand toward the vehicle after docking.
They can create closer contact around suitable truck sizes and may be considered for temperature-controlled pharmaceutical warehouses.
The key word is suitable.
An inflatable system cannot accommodate an unlimited range of vehicle heights.
Before selecting one, the project team should understand the lowest and highest regular vehicles using the dock.
Now look down at the point where the warehouse platform meets the trailer.
The trailer floor will not always align with the dock.
Cargo weight, suspension, vehicle type, and loading condition can all change the trailer height.
A dock leveler creates the working transition between the warehouse and vehicle.
For pharmaceutical warehouses using forklifts or pallet handling equipment, this transition should be stable and suitable for the expected traffic.
Hydraulic dock levelers are commonly used where controlled powered operation is preferred.
Suppose a pharmaceutical pallet weighs 1,200 kg.
That does not mean the dock leveler only needs to support 1,200 kg.
The actual moving load may include:
Forklift + Operator + Pallet + Product
This is the load crossing the platform.
Repeated forklift travel also creates dynamic forces.
Capacity should therefore reflect operating conditions rather than only cargo weight.
Some facilities need more control over where the leveler lip contacts the trailer.
A telescopic dock leveler uses an extendable lip that can move farther into the vehicle.
This may be useful when:
Different trailer configurations use the same dock
Pallets are positioned near the back of the truck
More precise lip placement is required
The loading operation needs additional positioning flexibility
A longer or extendable lip should not be used to compensate for incorrect dock dimensions.
Platform height, trailer range, pit dimensions, and stopping position should still be checked together.
A loading dock may look correct when no equipment is moving.
The real test begins when a forklift starts working.
Observe whether the operator can move from the warehouse into the trailer without unnecessary stopping, excessive slope, or poor visibility.
A trailer is not always completely static.
Forklift movement and suspension changes can affect its position.
There is also the risk of a vehicle leaving before loading is finished.
A vehicle restraint can help keep the truck or trailer secured during the loading process.
The equipment should support a predictable process.
For example:
Vehicle Positioned → Vehicle Secured → Door Opened → Dock Leveler Positioned → Loading Begins
After loading:
Leveler Stored → Door Closed → Vehicle Released
The exact procedure depends on the facility, but the principle remains the same: equipment should support a clear and repeatable workflow.
Once the truck connection has been reviewed, look back toward the warehouse.
The exterior industrial door has a different role from the dock shelter.
The shelter manages the space around the vehicle.
The door closes the building opening itself.
Sectional industrial doors open vertically and can be arranged according to the available headroom and building structure.
Insulated panels may also help reduce heat transfer when the loading dock is not in use.
For pharmaceutical warehouses, the door specification may depend on:
Opening width
Opening height
Headroom
Track configuration
Panel thickness
Wall structure
Motor position
Electrical supply
A door drawing should account for beams, pipes, cable trays, sprinkler lines, and other building services around the opening.
A door that fits the wall opening may still conflict with the available overhead space.
This is why site photographs and elevation drawings are valuable during design.
The loading dock is only the first transition.
After pharmaceutical products enter the building, they may move through receiving, inspection, staging, temperature-controlled storage, picking, and dispatch.
Each internal opening should be reviewed separately.
Opening time is especially important in areas where adjacent spaces have different temperatures or operating conditions.
A door that remains open longer than necessary increases direct exchange between those spaces.
This is where high speed doors can be useful.
Fast opening improves traffic flow.
Fast closing reduces the period during which two areas remain connected.
For pharmaceutical warehouse applications, both matter.
Possible locations include:
Receiving to internal warehouse
Staging to controlled storage
Ambient storage to refrigerated storage
Picking areas
Internal logistics corridors
Temperature-controlled pharmaceutical storage deserves separate attention.
Here, the question is not simply whether the door is insulated.
The frequency of traffic matters just as much.
Consider two doors.
Door A has excellent insulation but stays open for a long time every time a forklift passes.
Door B has moderate insulation but opens and closes much faster.
Which one performs better?
There is no universal answer.
The correct choice depends on the application.
Where the door is rarely opened, insulation can become a major selection factor.
Where forklifts pass continuously, an insulated high speed door may provide a better balance between thermal performance and traffic efficiency.
Important information includes:
Storage temperature
Adjacent temperature
Door size
Daily cycles
Traffic type
Humidity
Required insulation
Automatic doors depend heavily on their activation system.
The door may be technically correct, but poor sensor positioning can create unnecessary opening time or forklift delays.
A forklift approaching quickly needs the door to open earlier than a person walking toward the same entrance.
Possible activation methods include:
Radar sensors
Pull cords
Push buttons
Loop detectors
Remote controls
Access control signals
If a sensor detects vehicles too early, the door opens before the forklift reaches the entrance.
The result is longer exposure time.
If detection happens too late, the operator may have to stop.
The ideal setting is based on the real approach distance and vehicle speed.
A pharmaceutical warehouse may handle incoming goods, finished products, employees, forklifts, packaging materials, and rejected goods.
Where different routes intersect, even a high-performance door cannot solve every problem.
If forklift and personnel traffic constantly cross at the same entrance, the first design question should be whether the flow can be separated.
The door should support the warehouse layout.
It should not be expected to fix an inefficient layout.
For every important door, identify whether it mainly serves:
Forklifts
Personnel
Pallet trucks
Material flow
Mixed traffic
This information affects:
Opening size
Sensor type
Safety devices
Operating speed
Control method
Pharmaceutical projects often include requests for stainless steel equipment.
Stainless steel can be appropriate, but the entire warehouse does not automatically require the same material.
Stainless steel may be considered where there is:
Frequent cleaning
Higher humidity
Moisture exposure
Corrosion risk
Specific surface requirements
Other dry storage areas may be suitable for painted or galvanized steel.
A useful approach is to divide the warehouse according to environmental exposure.
This can avoid both under-specification and unnecessary cost.
An often-overlooked part of planning is operational dependence.
Some openings are convenient.
Others are critical.
If the main loading dock door stops working, can trucks still be unloaded?
If an internal high speed door stops, is there another route to the temperature-controlled warehouse?
Critical openings deserve additional attention to:
Reliability
Maintenance access
Spare parts
Manual operation options
Control system design
Equipment should be installed so commonly serviced components can be reached without dismantling surrounding structures.
This is especially important where stopping one door could affect a large part of the warehouse operation.
After reviewing the truck, dock, exterior door, internal traffic, and temperature-controlled areas, step back and look at the full process.
A pharmaceutical warehouse may ultimately use several different systems:
Hydraulic Dock Levelers
Telescopic Dock Levelers
Mechanical Dock Shelters
Inflatable Dock Shelters
Dock Seals
Vehicle Restraints
Dock Bumpers
Sectional Industrial Doors
PVC High Speed Doors
Self-Repairing High Speed Doors
Insulated High Speed Doors
The important point is that this list should emerge from the site conditions.
It should not be the starting point.
Before final equipment selection, gather four types of project data.
Opening width and height
Dock platform height
Pit dimensions
Headroom
Side clearance
Wall and steel structure
Truck height range
Truck width range
Trailer floor height
Vehicle types
Daily dock traffic
Forklift weight
Maximum load
Traffic frequency
Direction of travel
Number of operating shifts
Warehouse temperature
Adjacent temperature
Humidity
Cleaning conditions
Exterior exposure
These values provide a much stronger basis for planning than selecting products from standard dimensions alone.
New construction and retrofit projects should not be handled in exactly the same way.
New projects provide more freedom to coordinate:
Concrete pits
Door openings
Structural supports
Dock heights
Electrical supply
Traffic routes
The earlier loading dock and door equipment is considered, the easier it is to integrate them with the building.
Once concrete pits and steel structures are completed, even a small dimensional change can become expensive.
Equipment information should therefore be exchanged with the building design team early.
Retrofit projects have different challenges.
The existing building may already have:
Fixed pit sizes
Limited headroom
Old electrical systems
Existing dock shelters
Structural restrictions
An existing door or dock leveler may have been installed years ago when vehicle sizes or warehouse operations were different.
Replacement is an opportunity to reassess the current application.
A successful loading dock and door system is often noticeable because operators do not need to think about it constantly.
Trucks position correctly.
Dock equipment follows a clear sequence.
Forklifts do not wait unnecessarily at doors.
Temperature-controlled openings close promptly after traffic passes.
Different equipment types perform their own role without interfering with one another.
When equipment is poorly matched to the site, workers begin compensating for it.
They may:
Hold doors open manually
Stop before every doorway
Reposition trucks several times
Adjust loading equipment repeatedly
Use temporary operating procedures
If normal operation depends heavily on manual workarounds, the system may not be well matched to the warehouse.
The goal of planning should be to make correct operation the easiest operation.
EVERBESTEN provides industrial door and loading dock solutions for pharmaceutical warehouses, temperature-controlled storage facilities, logistics centers, and other industrial applications.
The equipment configuration can be developed according to:
Warehouse layout
Loading dock dimensions
Vehicle range
Forklift specifications
Temperature conditions
Traffic frequency
Installation environment
A standard equipment package may be convenient, but pharmaceutical warehouse requirements can vary significantly from one facility to another.
The most reliable approach is to review the complete truck-to-storage process and then determine which door and loading dock technologies are appropriate for each transition.

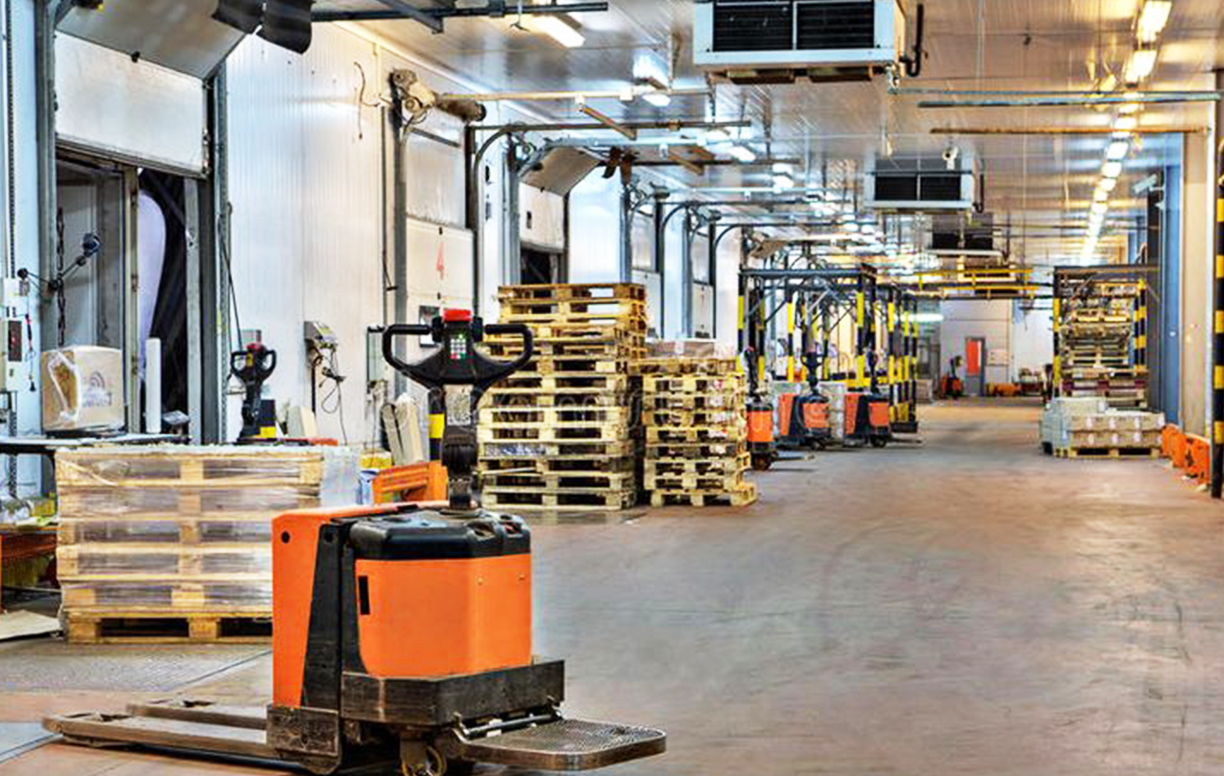

Planning loading dock and industrial door systems for pharmaceutical warehouses is best done by walking through the facility in the same order that trucks, forklifts, and products move through it.
Start outside with the vehicle fleet.
Check where trucks stop and how they connect to the building.
Review the dock shelter, dock leveler, restraint, bumper, and exterior door as one interface.
Then follow the material inside the warehouse and evaluate each internal opening according to traffic, temperature, environmental conditions, and operating frequency.
This approach avoids treating doors and loading dock equipment as isolated products.
Instead, each component becomes part of a coordinated warehouse system designed around the real conditions of daily pharmaceutical logistics.
