Hydraulic dock levelers and mechanical dock levelers perform the same basic task: they bridge the height and distance between the warehouse floor and the trailer bed so that forklifts and pallet trucks can move between them.
However, the way they operate is very different.
A hydraulic dock leveler uses a powered hydraulic system to raise the platform and operate the lip. A mechanical dock leveler normally uses a spring-assisted or counterbalanced mechanism and requires more operator involvement during positioning.
That difference affects operating convenience, loading speed, maintenance requirements, electrical installation, control integration, and long-term operating cost.
There is no single answer that is best for every warehouse. A high-volume distribution center may benefit significantly from hydraulic operation, while a lower-traffic warehouse may prefer the simplicity of a mechanical system.
The correct decision should be based on how the loading dock actually operates rather than choosing only by purchase price.
The most important difference is how the platform and lip are operated.
Both systems need to create a stable transition between the dock and trailer, but they use different mechanisms to reach that working position.
A hydraulic dock leveler uses an electric motor, hydraulic pump, cylinders, hoses, and control system to move the platform.
During a typical operating cycle, the operator activates the leveler from a control station. The platform rises, the lip moves into position, and the leveler lowers until the lip rests on the trailer bed.
The exact sequence depends on the leveler design and control configuration.
The operator does not need to lift or position the platform through physical force.
This can make hydraulic systems easier to use where several trailers are serviced throughout a shift.
The advantage becomes increasingly noticeable as the number of loading cycles increases.
The hydraulic system controls the movement of the deck and lip throughout the operating sequence.
Smooth movement helps the operator position the leveler consistently across trailers with different bed heights within the designed working range.

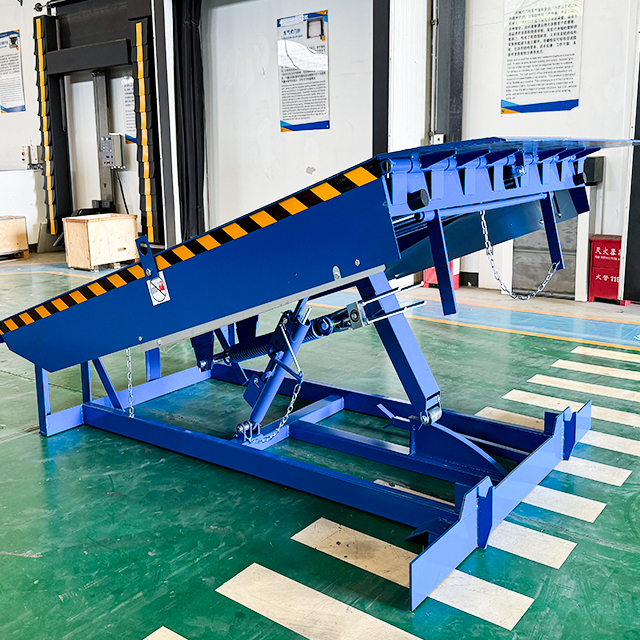

A mechanical dock leveler uses a spring-assisted or counterbalance mechanism rather than a hydraulic power unit.
Depending on the design, the operator releases the mechanism using a pull chain or operating handle. The stored spring force raises the platform, after which the operator guides the leveler into the required working position.
Mechanical dock levelers therefore provide a non-powered alternative for facilities where automated hydraulic operation is not required.
Because the platform does not rely on hydraulic cylinders and a pump, the system has fewer hydraulic components.
This can be attractive for projects where electrical installation around the dock is limited or where the facility wants a simpler operating system.
Mechanical systems require more physical interaction during operation and adjustment.
This may not be a major issue at a dock used only occasionally, but it becomes more important as the number of daily loading cycles increases.
Operating convenience is one of the clearest differences between the two systems.
The question is not simply whether one leveler can bridge the trailer. Both can do that when correctly selected and installed.
The difference is how much time and operator involvement are required to reach the working position.
A hydraulic system is generally more convenient when trucks are serviced repeatedly throughout the day.
The operator uses the control station instead of manually releasing and positioning the leveler.
This creates a more consistent operating sequence across different employees and shifts.
Operators working at several dock positions may perform the same loading sequence many times.
Reducing physical handling can make the dock easier to operate and can reduce variation caused by different operating techniques.
This does not eliminate the need for training, but it makes the basic operating sequence more standardized.
A warehouse that receives only a limited number of trailers may not need powered operation at every dock.
Where the leveler is used infrequently, the additional operator involvement of a mechanical system may have little effect on overall productivity.
In this situation, the simpler system and lower initial investment may be more important than automated operation.
Loading frequency should be one of the first questions asked when comparing the two systems.
A loading dock serving a few scheduled trucks each day has different requirements from a distribution center where trailers are continuously arriving and departing.
Where trucks are processed frequently, small differences in operating time and convenience are repeated across many cycles.
A push-button hydraulic leveler can help standardize the process of preparing the dock for each trailer.
A facility may handle moderate traffic for most of the day but experience intense loading activity during receiving or dispatch periods.
Selection should therefore consider peak conditions.
If several trucks need to be processed quickly across multiple dock positions, easier leveler operation can help reduce unnecessary delays.
Installing hydraulic systems at every dock simply because they are more automated is not always necessary.
At a low-use dock position, the time saved during each operating cycle may provide limited operational benefit.
The value of hydraulic operation increases with actual loading frequency.
Mechanical dock levelers remain practical where loading is less frequent and operators have enough time to position the equipment correctly.
They can also be useful where the facility prefers a non-powered system or where adding electrical infrastructure would complicate the project.
Dock levelers are used partly because trailer bed heights do not remain identical.
Vehicle type, suspension, load condition, and site geometry can all change the relationship between the trailer and warehouse floor.
Whether the leveler is hydraulic or mechanical, the platform must be selected so that it can accommodate the expected trailer height variation.
The operating mechanism does not compensate for a leveler that is too short, incorrectly positioned, or outside its designed vertical range.
A greater height difference between dock and trailer creates a steeper transition.
Platform length therefore affects the operating angle experienced by forklifts as they move between the two surfaces.
Buyers should provide the highest and lowest expected trailer bed heights rather than assuming all trailers will align with dock height.
The lip needs sufficient support on the trailer bed during loading.
Trailer position, dock bumper projection, platform length, and lip design all influence this relationship.
A powered hydraulic system cannot correct an incorrectly designed dock geometry, so dimensional planning remains essential for both leveler types.
Load capacity should be evaluated separately from the operating mechanism.
A hydraulic dock leveler is not automatically suitable for a heavier forklift simply because it uses hydraulic cylinders.
Likewise, a mechanical system should not be considered light-duty only because it is non-powered.
The leveler needs to support the forklift, operator, load, and forces generated while the vehicle travels across the platform.
Buyers should provide realistic operating information instead of selecting capacity only from the pallet weight.
A loaded forklift can weigh substantially more than the cargo alone.
The complete vehicle and load combination should therefore be considered when determining the required dock leveler capacity.
A forklift travelling across a leveler does not create the same condition as a stationary load.
Wheel movement, braking, turning, and repeated entry create dynamic forces.
This is why the required rated capacity should be discussed according to actual forklift operation rather than selected from a simple static weight calculation.
One advantage of hydraulic systems is the ability to control platform movement through the hydraulic and electrical system.
Mechanical levelers depend more heavily on the spring mechanism and operator procedure.
Controlled hydraulic operation allows the deck and lip to move through a predictable sequence.
This can be useful where the facility wants consistent operation across multiple dock positions.
Depending on the project, a hydraulic dock leveler can be connected with other dock equipment such as a sectional door, vehicle restraint, or traffic-light system.
This allows the dock to follow a more structured operating sequence.
Integration should be designed around the real loading process rather than adding controls simply for automation.
A mechanical leveler generally requires fewer electrical controls.
For simple loading docks, this independence can be an advantage because the platform operation does not depend on a powered hydraulic control sequence.
However, facilities requiring centralized controls or extensive equipment interlocking may find a hydraulic system easier to integrate.
Safety should not be reduced to a claim that one type of dock leveler is automatically “safe” and the other is not.
Both systems require correct selection, installation, operating procedures, maintenance, and trailer positioning.
The more useful comparison is which safety and control features are included in the proposed configuration.
Hydraulic systems can incorporate components designed to control platform movement if the hydraulic circuit experiences an abnormal condition.
The exact safety configuration varies by manufacturer and model and should be confirmed in the technical specification.
A dock leveler cannot prevent a trailer from leaving unexpectedly.
Where premature trailer departure or trailer creep is a concern, a vehicle restraint or another suitable trailer-securing procedure should be considered separately.
The leveler bridges the trailer; it does not physically secure the vehicle.
Because operation involves greater operator interaction, training becomes particularly important.
Employees should understand how to release, position, store, and inspect the equipment correctly.
Poor operating practices can create problems regardless of how simple the mechanical structure appears.
Worn hinges, damaged lip components, loose fixings, platform deformation, spring problems, hydraulic leakage, or control faults should not be ignored.
Regular inspection is necessary for both hydraulic and mechanical levelers.
It is misleading to say that hydraulic dock levelers always require less maintenance or that mechanical levelers always require more.
The two systems simply have different maintenance points.
Routine inspection may include the pump, cylinders, hydraulic hoses, fittings, control station, electrical connections, platform hinges, lip mechanism, and structural components.
Leaks, damaged hoses, unusual movement, or changes in platform speed should be investigated.
A small hydraulic leak or damaged hose may not immediately stop the leveler.
However, continuing operation can lead to loss of performance or unplanned downtime.
Identifying these issues early is more effective than waiting until the equipment cannot complete a cycle.
Mechanical systems eliminate the hydraulic power unit, but springs, linkages, hinges, latches, and other moving components still require inspection and adjustment.
Spring performance can change as components wear over time.
A non-powered leveler still carries forklifts and repeated loading forces.
Wear at pivot points, lip components, springs, and structural connections should be checked according to the maintenance schedule.
The correct comparison is therefore different maintenance, not “maintenance versus no maintenance.”
Power availability is an important practical difference.
Normal hydraulic operation requires power for the motor, pump, and controls.
Facilities choosing a hydraulic system should therefore confirm the available voltage and electrical installation before the equipment is ordered.
Where loading continuity during power interruptions is particularly important, the facility should consider how dock operations will be managed during those events.
A mechanical system can operate without an electric hydraulic power unit.
This may be advantageous at remote loading positions, basic warehouses, or facilities where supplying electrical power to the dock would add unnecessary installation work.
The lack of electrical power requirements should not be treated merely as a cost-saving feature.
For some projects, it may be one of the main operational reasons to choose a mechanical leveler.
Environmental conditions affect both types of dock leveler.
Outdoor exposure, moisture, cleaning procedures, low temperatures, corrosion, and debris around the pit can all influence long-term performance.
Electrical controls, hydraulic components, and connections should be selected and installed for the actual environment.
Where water, washdown, condensation, or low temperatures are present, these conditions should be identified during project planning.
Springs, hinges, pivots, and other mechanical components remain vulnerable to corrosion and contamination.
Removing the hydraulic system does not remove the environmental challenge.
Platform material, surface treatment, control enclosure, and optional stainless steel components can be considered according to the application.
Food facilities, coastal sites, wet environments, and standard dry warehouses may require different material configurations.
Mechanical dock levelers are often attractive because of their lower initial investment and reduced electrical installation requirements.
Hydraulic systems normally require a higher initial investment because they include the hydraulic power unit, cylinders, controls, and electrical components.
However, the lowest purchase price does not automatically produce the lowest total cost.
At a high-volume loading facility, easier operation and reduced operator involvement are repeated across every truck.
The operational value may justify the additional equipment and installation cost.
A useful comparison should consider:
Number of trailers serviced
Number of dock positions
Operator time
Maintenance requirements
Expected downtime
Electrical installation
Spare parts and service availability
Future automation requirements
A hydraulic system may provide greater value where the dock is used heavily, while a mechanical system may remain more economical at an occasional-use position.
A small warehouse handling only a few scheduled vehicles may gain very little from powered operation.
In that case, the simpler mechanical system may provide the required loading function without paying for automation that the facility rarely uses.
A hydraulic dock leveler is generally worth considering when operating convenience and repeated loading activity are important.
A hydraulic dock leveler may be more appropriate when:
Trucks are serviced frequently throughout the day
Several employees use the same dock
Push-button operation is preferred
The facility wants a more standardized loading sequence
Dock equipment integration is planned
Forklift traffic is heavy
Future warehouse automation is being considered
Loading efficiency is a major operational priority
A warehouse should not select equipment only for today’s loading volume if significant expansion is already planned.
If truck traffic is expected to increase substantially, the convenience and control of a hydraulic system may provide more value over the longer term.
This does not mean every growing warehouse automatically needs hydraulic equipment, but future loading patterns should form part of the decision.
A mechanical dock leveler can remain a practical industrial solution when the dock does not require powered hydraulic operation.
A mechanical dock leveler may be suitable when:
Loading frequency is relatively low
The project has a tighter initial budget
Electrical power at the dock is limited
The facility prefers a non-powered operating system
The loading process is straightforward
Extensive equipment interlocking is not required
Operators can follow the required mechanical operating procedure
A dock used only a few times per day may not gain meaningful productivity from a powered system.
In this situation, spending more for hydraulic operation simply because it is more advanced may not provide enough operational return.
One common mistake is assuming that hydraulic automatically means higher load capacity.
Capacity depends on the complete structural design and rated specification, not simply the drive method.
Another mistake is choosing mechanical equipment only because the initial price is lower. If the dock is used repeatedly throughout every shift, greater operator involvement may become an operational disadvantage.
The opposite mistake also occurs: specifying hydraulic systems at low-use loading positions where powered operation provides very little additional value.
The equipment price is only one part of the project.
Electrical work, pit preparation, installation, controls, maintenance, spare parts, operating frequency, and downtime should also be considered.
Neither system can compensate for an incorrectly designed loading position.
Dock height, trailer bed range, pit dimensions, platform length, lip design, bumper projection, and approach conditions should all be checked before final selection.
Buyers should provide the expected highest and lowest trailer bed heights, typical vehicle types, forklift dimensions, and loading weight.
Without this information, choosing between hydraulic and mechanical operation addresses only part of the project.
A reliable dock leveler recommendation requires more than simply saying “5 ton” or “10 ton.”
The supplier needs enough information to understand the complete loading condition.
Important dimensions include the dock height, available pit size, surrounding concrete structure, and finished warehouse floor level.
For an existing pit, photographs and accurate measurements can help determine whether the proposed leveler can fit without major civil modifications.
For new construction, the pit can often be designed around the selected equipment.
For replacement projects, the new leveler may need to fit an existing pit, making accurate dimensions even more important.
Useful information includes:
Highest expected trailer bed height
Lowest expected trailer bed height
Typical trailer type
Forklift weight
Maximum load weight
Wheel arrangement where relevant
Expected daily loading frequency
This allows the platform size, rated capacity, and working range to be evaluated more realistically.
Buyers should also explain whether the project requires:
Hydraulic or non-powered operation
Specific electrical voltage
Integration with a sectional door
Vehicle restraint connection
Traffic-light communication
Special environmental protection
Stainless steel construction or components
Additional control functions
These requirements are easier to incorporate during initial design than after the equipment has been manufactured.
The decision becomes clearer when the loading dock is evaluated according to actual use.
Choose a hydraulic dock leveler when the dock handles repeated truck traffic and the facility values easier operation, powered control, consistent loading procedures, and potential integration with other dock equipment.
Choose a mechanical dock leveler when loading frequency is lower, the operation is straightforward, power independence is useful, and keeping the initial system simpler is a priority.
Neither choice should be based only on whether one system is considered more “advanced.”
The best dock leveler is the one whose capacity, dimensions, operating method, working range, and control system match the real loading conditions.
Hydraulic and mechanical dock levelers perform the same fundamental function, but they are designed for different operating priorities.
Hydraulic dock levelers provide powered, push-button operation and are particularly useful at busy loading docks where repeated truck handling and consistent operation matter. Mechanical dock levelers provide a simpler non-powered alternative that can remain practical for lower-frequency loading positions and facilities where electrical operation is unnecessary.
The final choice should consider loading frequency, trailer height range, forklift and load weight, dock geometry, power availability, maintenance capability, control requirements, and long-term operating plans.
When these factors are evaluated together, the question is no longer simply whether hydraulic or mechanical is “better.” It becomes a much more useful question: which system is better matched to this particular loading dock?
