Views: 0 Author: Site Editor Publish Time: 2026-07-23 Origin: Site
A loading dock is one of the most active openings in a warehouse. Every time a truck backs into the dock, the warehouse door opens, the dock leveler is used, and forklifts move goods between the building and the trailer. During this process, there is always a gap between the truck body and the wall. If this gap is not sealed properly, outside air, rain, dust, insects, hot air, or cold air can enter the warehouse.
For a general warehouse, poor sealing may cause dust, rainwater, uncomfortable working conditions, and product exposure. For cold storage, food warehouses, pharmaceutical logistics, and temperature-controlled facilities, the problem can be more serious. Cold air can escape, warm air can enter, and the refrigeration system may need to work harder. Over time, this increases energy cost and may affect product quality.
That is why choosing the right dock shelter is important. A dock shelter is not only a simple cover around the door. It is part of the loading dock system, working together with the industrial door, dock leveler, dock bumper, and vehicle restraint.
Inflatable dock shelters and mechanical dock shelters are both used to improve loading dock sealing, but they are designed for different working conditions.
A mechanical dock shelter uses flexible curtains to cover the sides and top of the trailer. It is practical, durable, and suitable for many general warehouse loading docks. It is often selected when the warehouse needs basic weather protection and can accept a moderate sealing level.
An inflatable dock shelter uses airbags to seal around the truck body after the vehicle is parked. It provides a tighter seal and is more suitable for cold storage, food facilities, and temperature-controlled warehouses where air leakage must be reduced as much as possible.
Many buyers first compare prices, but the better question is: “What sealing level does my warehouse really need?” If your warehouse only needs rain and dust protection, a mechanical dock shelter may be enough. If your warehouse needs strict temperature control, an inflatable dock shelter is usually the better choice.
A mechanical dock shelter is a loading dock sealing product installed around the warehouse door opening. It usually includes a front frame, side curtains, and a top curtain. When the truck backs into the dock, the curtains contact the truck body and help cover the gap between the trailer and the wall.
This type of dock shelter is commonly used in general warehouses, logistics centers, factories, and distribution facilities. It is a practical solution for reducing rain, wind, dust, and outdoor air entering the loading area.
Mechanical dock shelters are flexible enough to handle different trailer sizes within a reasonable range. Because of this, they are often used when the warehouse receives trucks from different carriers or when the trailer size is not always exactly the same.
When the truck reverses into position, the trailer enters the shelter area. The side curtains cover part of the trailer sides, and the top curtain covers the upper area of the trailer opening. The dock bumpers keep the truck at the correct distance from the wall, while the shelter curtains help reduce gaps around the truck body.
The mechanical shelter does not create a fully airtight seal. Instead, it provides flexible coverage and weather protection. For many warehouses, this level of sealing is enough for daily loading and unloading.
A mechanical dock shelter is simple, practical, and cost-effective. It is easy to use, does not require inflation or a complex control system, and can work with different standard trucks. It is also suitable for high-frequency loading docks where trucks come and go many times a day.
The sealing effect is not as strong as an inflatable dock shelter. If your warehouse needs strict temperature control or very low air leakage, a standard mechanical shelter may not be enough. Wind, temperature difference, and trailer size variation can still create small gaps around the truck.
An inflatable dock shelter is a high-sealing loading dock solution that uses airbags to seal the sides and top of the truck body. After the truck is parked, the airbags inflate and press gently around the trailer, creating a much tighter seal than a standard mechanical dock shelter.
Inflatable dock shelters are usually used in cold storage, food processing plants, pharmaceutical warehouses, clean logistics centers, and other facilities that need better temperature control and cleanliness.
Compared with a mechanical dock shelter, an inflatable dock shelter is more advanced and usually has a higher cost. But for warehouses where energy saving and product protection are important, the long-term value can be much higher.
The truck first backs into the dock position. After the truck is correctly parked, the inflatable system starts. The side airbags and top airbag inflate around the trailer body. These airbags close the gaps around the truck and reduce air exchange between the warehouse and the outside environment.
After loading or unloading is complete, the airbags deflate. Then the truck can leave the dock safely. The whole process should be matched with the door, dock leveler, and vehicle safety system to ensure smooth operation.
The biggest advantage is stronger sealing. Inflatable dock shelters can reduce cold air loss, warm air entry, dust, insects, and outdoor contamination. They are especially useful in facilities where indoor temperature and hygiene must be controlled.
An inflatable dock shelter has a higher initial cost and usually requires power supply, airbag system, fan or blower, and proper operation. It also needs more careful maintenance than a mechanical dock shelter. If the airbags are damaged or the system is not used correctly, sealing performance can be affected.
The biggest difference is sealing performance. A mechanical dock shelter provides basic to medium sealing by using curtains to cover the truck sides and top. It is good for blocking rain, wind, and dust, but it may still leave some gaps.
An inflatable dock shelter provides stronger sealing because the airbags press around the truck body. It can close the side and top gaps more effectively, making it more suitable for cold storage and controlled environments.
An inflatable dock shelter seals better than a mechanical dock shelter. If your warehouse needs strong temperature control or cleaner loading conditions, inflatable is usually the better choice.
Mechanical dock shelters can work with many standard trailer types. They are flexible and practical when trucks vary slightly in size. This makes them suitable for general logistics operations and mixed truck fleets.
Inflatable dock shelters can also handle different trailer sizes, but they need to be sized correctly. The airbags must contact the trailer body in the right position. If the truck size range is too wide, the supplier should check the actual trailer dimensions before recommending the final design.
For general mixed truck fleets, mechanical dock shelters are simple and flexible. For mixed trucks that also need stronger sealing, inflatable dock shelters are better, but the sizing must be more carefully checked.
Mechanical dock shelters usually have a lower initial cost. They are easier to install and maintain, which makes them suitable for many standard warehouses.
Inflatable dock shelters cost more because they include airbags, blower system, control components, and more advanced structure. However, they can help reduce energy loss in cold storage or temperature-controlled warehouses, so the long-term value may be better.
If your warehouse is a general storage facility, a mechanical dock shelter may be more economical. But if your facility loses cold air every day during loading, the energy cost may be much higher than the price difference between the two products.
Mechanical dock shelters mainly need curtain inspection, frame checking, and cleaning. Common maintenance includes checking whether the side curtains are torn, whether the top curtain is damaged, and whether the frame is still properly fixed.
Inflatable dock shelters need more detailed maintenance. The airbags, air pipes, blower, control system, and fabric condition should be checked regularly. Any air leakage or damage should be repaired quickly to maintain sealing performance.
Mechanical dock shelters are easier to maintain. Inflatable dock shelters require more attention, but they provide stronger sealing performance when maintained correctly.
A mechanical dock shelter is ready to use when the truck backs into position. It does not need inflation time, so the operation is simple and fast.
An inflatable dock shelter needs airbags to inflate after the truck is parked and deflate before the truck leaves. This process takes a little more time, but it provides better sealing during loading.
Mechanical dock shelters are faster for simple loading. Inflatable dock shelters take slightly more time but provide better environmental control.
If your warehouse mainly needs protection from rain, wind, and dust, a mechanical dock shelter is usually enough. It provides practical sealing without making the system too complicated.
General warehouses do not always need strict temperature control. In this case, mechanical dock shelters can offer a good balance between cost, durability, and daily usability.
Choose a mechanical dock shelter for general storage warehouses, dry goods warehouses, manufacturing plants, and distribution centers with normal sealing requirements.
If your warehouse receives different standard trucks from different carriers, a mechanical dock shelter is often a practical choice. Its flexible curtains can adapt to small differences in trailer width and height.
This is helpful for warehouses where the truck fleet is not fully controlled by the company.
Choose a mechanical dock shelter when your trailers are not exactly the same size but still fall within a normal range.
Mechanical dock shelters are suitable for loading docks with frequent truck traffic. They are simple to use and do not require workers to operate an inflation system every time.
For logistics centers and distribution warehouses, this simplicity can help keep the loading process smooth.
Choose a mechanical dock shelter when loading speed, simple operation, and durability are more important than maximum sealing performance.
If the project budget is limited and the warehouse does not require strict temperature control, a mechanical dock shelter is usually the more economical solution.
It can still improve the loading environment and reduce outdoor exposure, but with lower initial investment.
Choose a mechanical dock shelter when you need basic sealing and weather protection at a more cost-effective price.
Cold storage warehouses need stronger sealing because temperature loss directly affects energy consumption. Every time the loading dock opens, cold air can escape and warm air can enter. If the truck gap is not sealed well, the refrigeration system must work harder.
An inflatable dock shelter helps reduce this air exchange. By sealing around the truck body with airbags, it can improve temperature control during loading and unloading.
Choose an inflatable dock shelter for cold storage warehouses, frozen food logistics, chilled warehouses, and refrigerated distribution centers.
Food and beverage warehouses need cleaner loading conditions. Dust, insects, rain, and outside air should be reduced as much as possible. A better sealing system helps protect goods and maintain a more hygienic loading area.
Inflatable dock shelters are often a better choice when the facility needs higher cleanliness and better environmental control.
Choose an inflatable dock shelter for food factories, beverage warehouses, fresh food logistics, and clean loading areas.
Pharmaceutical warehouses and clean logistics centers often have stricter requirements for temperature, dust control, and indoor environment stability. A standard mechanical dock shelter may not provide enough sealing for these applications.
An inflatable dock shelter can help create a more controlled loading process and reduce outside contamination.
Choose an inflatable dock shelter for pharmaceutical logistics, medical storage, cleanroom-related warehouses, and sensitive product handling.
If your warehouse has high cooling or heating costs, loading dock sealing can directly affect energy consumption. Poor sealing means the HVAC or refrigeration system must work harder.
An inflatable dock shelter can reduce air leakage during loading. Although the initial cost is higher, it may help reduce long-term energy loss in temperature-controlled facilities.
Choose an inflatable dock shelter when energy saving, temperature stability, and long-term operating cost are important factors.
Standard cargo trailers are common in logistics and general warehouse operations. If the warehouse handles dry goods and does not need strict temperature control, a mechanical dock shelter is usually enough.
If the same trailers are used for temperature-sensitive goods, an inflatable dock shelter can be considered for better sealing.
For general cargo trailers, choose a mechanical dock shelter. For temperature-sensitive cargo, choose an inflatable dock shelter.
Refrigerated trailers are used for cold chain logistics. They require better sealing because air leakage can affect product temperature and increase energy use.
Inflatable dock shelters are usually more suitable for refrigerated trailers because they can seal the side and top gaps more tightly.
For refrigerated trailers, choose an inflatable dock shelter whenever strong temperature control is required.
Container trucks may have different rear structures, door positions, and frame designs. For container loading, the shelter must be selected carefully according to the actual truck and container size.
A mechanical dock shelter can work for many container loading applications. If the goods are temperature-sensitive or the sealing requirement is high, a customized inflatable dock shelter may be considered.
For general container loading, choose a mechanical dock shelter. For cold chain or clean container loading, check whether an inflatable dock shelter is suitable.
Many warehouses use different trucks every day. If the trailer size range is not too wide, a mechanical dock shelter can be a practical solution. It offers flexibility and is easier to operate.
If the warehouse has mixed trailer sizes but still needs strong sealing, an inflatable dock shelter may be better. However, the supplier should check the full trailer size range before confirming the design.
For mixed trailers with normal sealing needs, choose a mechanical dock shelter. For mixed trailers with high sealing needs, choose an inflatable dock shelter with customized sizing.

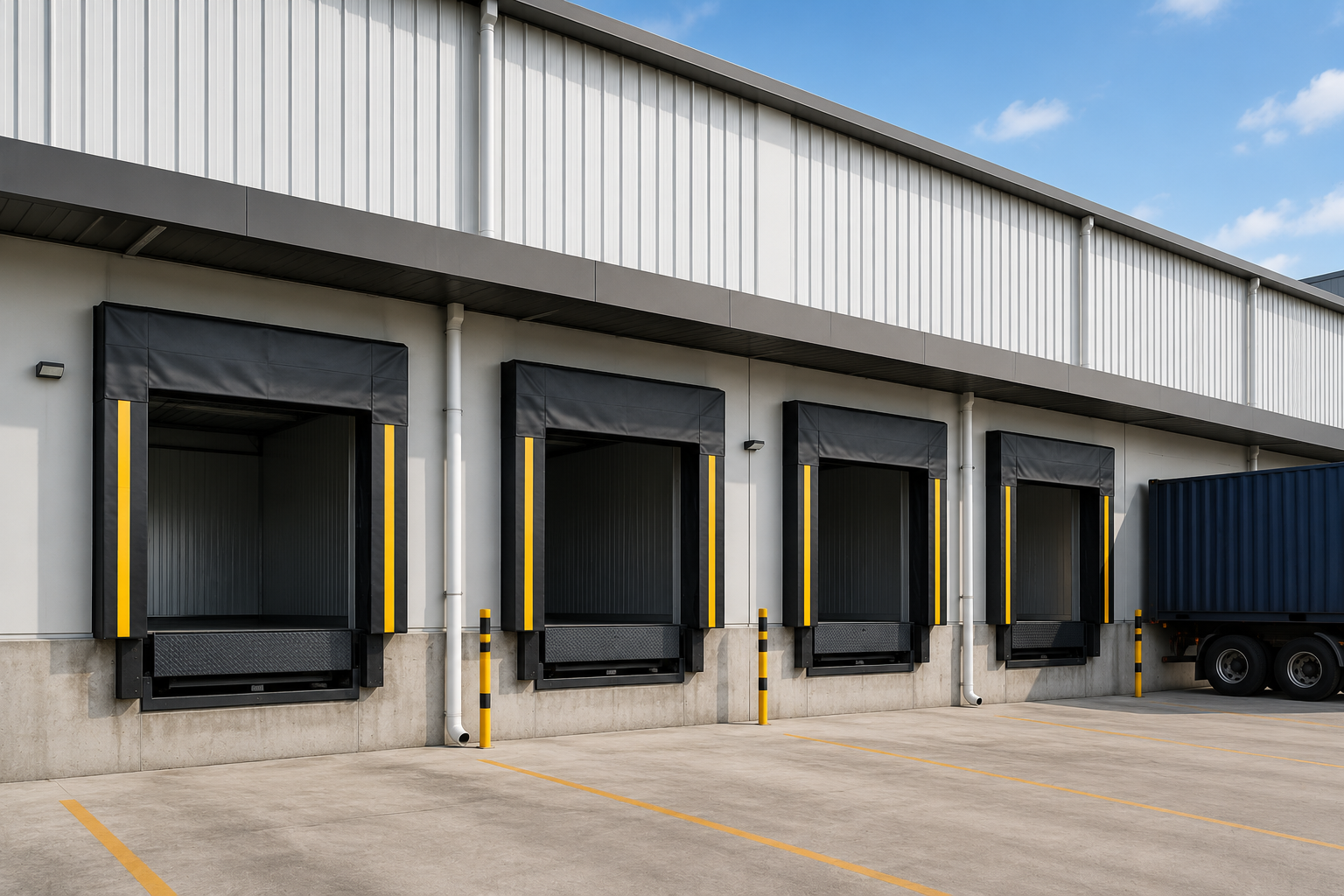

General warehouses mainly need weather protection, dust reduction, and a better working environment. They do not usually need a very tight seal around the truck.
For this type of warehouse, a mechanical dock shelter is usually the best balance of cost, function, and durability.
Mechanical dock shelter with suitable side curtains, top curtain, and projection based on common trailer sizes.

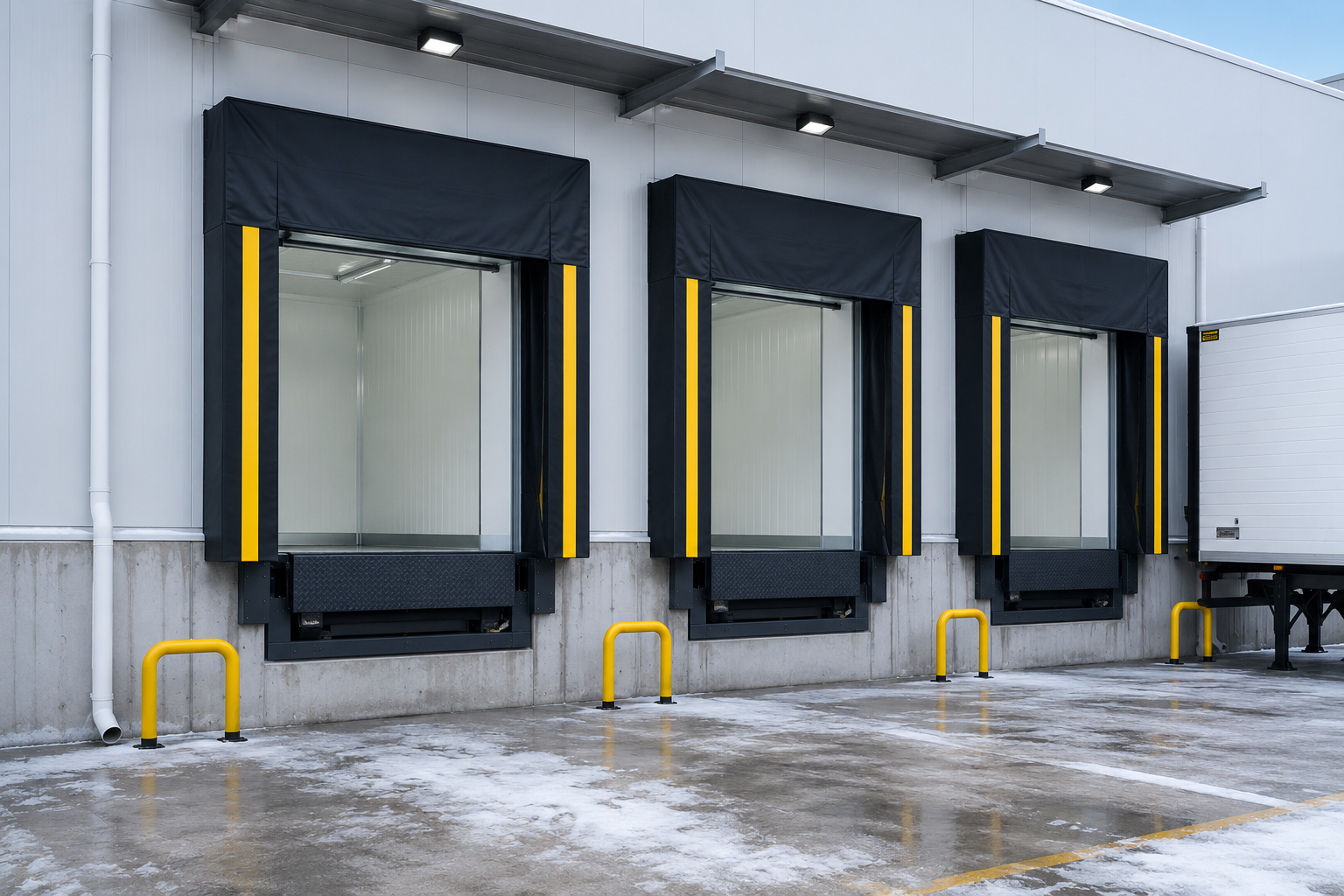

Cold storage warehouses need much stronger sealing. Cold air loss is not just a comfort issue; it directly affects energy costs and product temperature.
Inflatable dock shelters are usually more suitable because they can reduce air leakage more effectively during loading.
Inflatable dock shelter used together with insulated sectional door, cold storage high speed door, dock leveler, and proper dock bumper system.

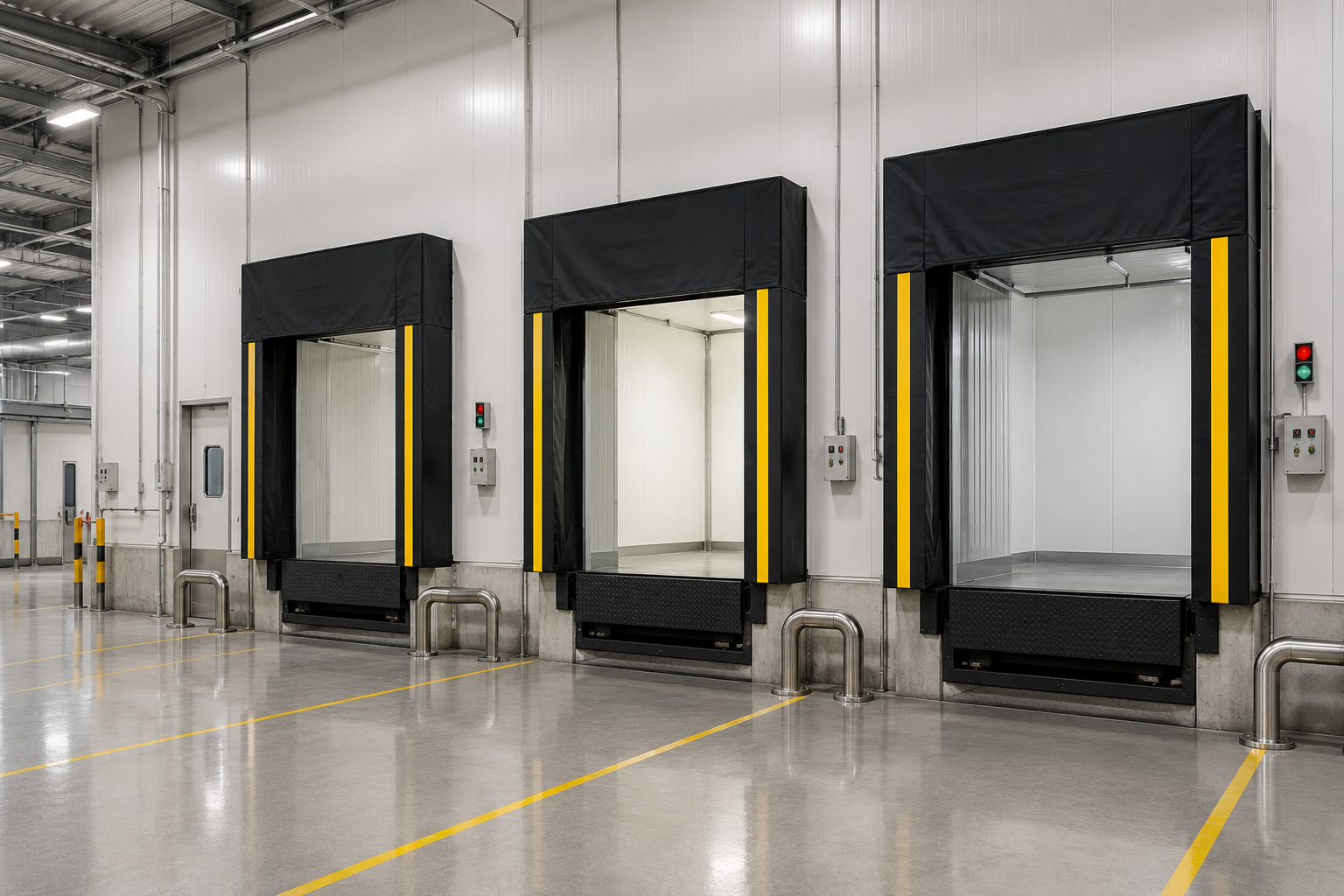

Food processing facilities need clean and controlled loading conditions. Outdoor dust, insects, and air exchange should be reduced as much as possible.
A mechanical dock shelter may work for basic loading areas, but an inflatable dock shelter is better when the facility has strict hygiene or temperature requirements.
Inflatable dock shelter for high hygiene areas. Mechanical dock shelter for general dry goods loading.
Logistics centers usually have frequent truck traffic and fast loading cycles. The dock shelter must be durable, easy to use, and suitable for different trucks.
Mechanical dock shelters are often used because they are simple and efficient. If the logistics center handles cold chain goods, inflatable dock shelters should be considered for those specific dock bays.
Mechanical dock shelter for normal logistics loading. Inflatable dock shelter for cold chain loading bays.
The first factor is sealing requirement. If your warehouse only needs basic rain and dust protection, a mechanical dock shelter is usually enough. If you need strong temperature control, choose an inflatable dock shelter.
Do not over-select or under-select. Buying a high-sealing system for a simple dry warehouse may not be necessary. But using a basic shelter for cold storage may lead to long-term energy loss.
Basic sealing: mechanical dock shelter. Strong sealing: inflatable dock shelter.
Trailer size affects how well the dock shelter fits. Mechanical dock shelters can adapt to normal size variation. Inflatable dock shelters can also handle variation, but the airbags must be correctly sized.
Before ordering, collect trailer width, trailer height, truck bed height, and rear structure information.
Stable or normal trailer sizes are easier to match. Large trailer variation needs careful sizing or customized design.
If trucks come and go many times a day, the shelter should be easy to operate and durable. Mechanical shelters are simple and fast for high-frequency general loading.
Inflatable shelters are also suitable for frequent use, but workers need to follow the correct operating sequence: park the truck, inflate the shelter, load or unload, deflate, and release the truck.
For fast general loading, mechanical shelters are practical. For frequent temperature-controlled loading, inflatable shelters are worth considering.
Energy cost is an important factor for cold storage and air-conditioned warehouses. If air leakage at the loading dock is causing high energy loss, a better sealing system can bring long-term value.
Inflatable dock shelters usually cost more at the beginning, but they can help reduce temperature loss during loading.
If temperature loss matters, choose a stronger sealing solution instead of only comparing purchase price.
Mechanical dock shelters are easier to maintain. Workers mainly need to check curtains, frame, and mounting points.
Inflatable dock shelters need more careful inspection of airbags, blower, pipes, and control system. If the warehouse has good maintenance management, this is not a problem. But if maintenance is often ignored, the system may not perform as expected.
Choose a system your team can maintain properly. Better equipment still needs correct daily care.
Price is important, but it should not be the only factor. A mechanical dock shelter is more affordable, but it may not provide enough sealing for cold storage. An inflatable dock shelter costs more, but it may reduce energy loss and protect temperature-sensitive goods.
Compare total value, not only purchase price. Consider energy cost, product protection, loading frequency, maintenance, and long-term use.
Some buyers choose a dock shelter based only on the door opening size. This is not enough. The shelter must match the trailer width, trailer height, truck stopping distance, dock bumper thickness, and loading dock layout.
Before confirming the model, provide trailer dimensions, door opening size, dock height, bumper projection, and site photos.
A mechanical shelter can reduce air exchange, but it does not provide the same sealing effect as an inflatable shelter. For cold storage or food facilities, this may not be enough.
For strict temperature control, choose an inflatable dock shelter or use it for the dock bays that handle cold chain loading.
Inflatable dock shelters need the correct operation sequence. If workers forget to inflate or deflate the shelter properly, performance and service life can be affected.
Mechanical shelters are simpler, but they still need proper truck positioning and regular inspection.
Train workers on truck positioning, shelter operation, inspection points, and what to do if the shelter is damaged.
Prepare trailer width, trailer height, truck bed height, rear door structure, and whether the warehouse uses standard trailers, refrigerated trailers, containers, or mixed fleets.
Trailer information helps decide the shelter width, height, projection, side curtain size, airbag position, and final sealing performance.
Prepare door opening width, door opening height, available wall space, headroom, and the distance from the door opening to the dock edge.
Door information affects installation space, clear loading opening, top sealing, and whether a standard or customized dock shelter is needed.
Prepare dock bumper thickness, dock leveler type, vehicle restraint position, dock height, and truck stopping distance.
Dock equipment affects how the truck parks and how the shelter contacts the trailer body.
Prepare loading frequency, sealing requirement, temperature control needs, hygiene requirements, energy-saving goals, and maintenance ability.
Operation requirements help decide whether a mechanical dock shelter or inflatable dock shelter is the better long-term solution.
Inflatable dock shelters and mechanical dock shelters both improve loading dock sealing, but they are suitable for different working conditions.
A mechanical dock shelter is practical, economical, and easy to use. It is a good choice for general warehouses, logistics centers, factories, and loading docks with standard sealing requirements. It offers weather protection, dust reduction, and flexibility for different trucks.
An inflatable dock shelter provides stronger sealing and better environmental control. It is the better choice for cold storage, food facilities, pharmaceutical logistics, refrigerated trailers, and temperature-controlled loading docks. Although the initial cost is higher, it can help reduce air leakage, improve temperature stability, and support long-term energy saving.
The right choice depends on your trailer type, door opening, dock height, loading frequency, sealing requirement, and warehouse environment. If your main goal is basic protection and cost control, choose a mechanical dock shelter. If your main goal is strong sealing, temperature control, and energy efficiency, choose an inflatable dock shelter.
A good dock shelter should not be selected alone. It should work together with the industrial door, dock leveler, dock bumper, and vehicle restraint to create a safer, cleaner, and more efficient loading dock system.
