Loading dock energy loss is not caused by one product or one opening alone. It is usually the result of how the trailer, warehouse door, dock shelter, dock leveler, bumpers, and loading procedure interact.
When a trailer is positioned at the dock and the warehouse door opens, gaps can remain along the sides and above the vehicle. Outdoor air can enter through these gaps while conditioned indoor air escapes.
For a general warehouse, this may increase heating or cooling demand and make the loading area less comfortable. In temperature-controlled facilities, uncontrolled air exchange can also contribute to condensation, moisture, frost, and greater refrigeration demand.
A Mechanical Dock Shelter helps reduce these open gaps by using flexible side curtains and a top curtain around the trailer.
However, simply installing a shelter does not automatically create effective sealing.
The shelter must match the trailer dimensions, door opening, dock height, bumper projection, and final truck position. Curtain overlap and top coverage must be sufficient, while the loading opening must remain clear enough for forklifts and cargo.
This guide explains how a mechanical dock shelter contributes to loading dock energy control, which dimensions affect sealing performance, how to identify common leakage points, and when a higher-sealing solution may be required.
A loading dock becomes particularly exposed while a trailer is being loaded because the building door may remain open for part or all of the loading operation.
Although the trailer occupies much of the opening, it does not completely fill the space between the building and vehicle.
The most visible gaps normally occur on both sides of the trailer and above the vehicle roof.
The amount of air moving through these areas depends on several conditions, including indoor-outdoor temperature difference, wind exposure, building pressure, gap size, and how long the dock remains open.
A narrow trailer leaves more open space between the vehicle and building.
Even when the trailer dimensions are suitable for the shelter, poor alignment can create another problem: one side may have good curtain contact while the opposite side remains partially exposed.
For this reason, sealing performance depends on both vehicle dimensions and parking position.
Trailer heights are not always identical.
A top curtain positioned correctly for a tall trailer may provide insufficient coverage for a lower vehicle. A curtain designed too low, however, may interfere with the trailer opening or experience unnecessary wear.
The top sealing area should therefore be designed around the actual trailer-height range.
Closing gaps around the trailer is only part of the solution.
The longer the warehouse opening remains exposed, the longer indoor and outdoor air can exchange.
A good loading dock strategy therefore needs to consider both:
How large are the remaining gaps?
and
How long does the building remain open?
The dock shelter reduces open space around the trailer while loading takes place.
The industrial door closes the building when loading is not taking place.
These products perform different functions and should be planned together rather than expecting the shelter alone to control all loading dock air exchange.

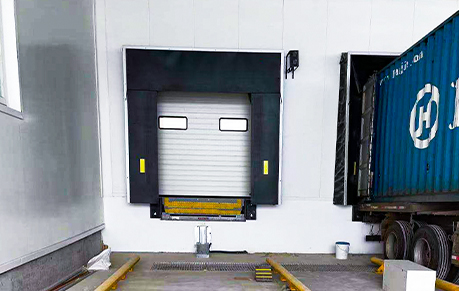

A Mechanical Dock Shelter is installed around the exterior of a loading dock opening.
A typical system includes a supporting frame, two flexible side curtains, and an upper curtain.
When a trailer reverses into the dock, the curtains contact and overlap the vehicle body.
Unlike a Foam Dock Seal, a mechanical shelter does not depend on thick foam pads being compressed directly by the trailer.
Instead, flexible curtains extend into the vehicle path and deflect against the sides and upper area of the trailer.
This gives the system more flexibility when a warehouse receives trailers with some variation in width and height.
The purpose of a mechanical dock shelter is to reduce uncontrolled air and weather exposure, not create a completely airtight connection between the trailer and warehouse.
Small gaps may still remain depending on trailer shape, door hinges, vehicle alignment, top geometry, and curtain design.
Facilities requiring much stronger environmental separation may need to evaluate an Inflatable Dock Shelter or another sealing configuration.
A shelter can have a strong frame and durable fabric but still provide poor sealing if the curtains do not contact the vehicle correctly.
The most important question is therefore not simply:
What size is the dock shelter?
It is:
Where will the curtains contact the actual trailers after they stop against the dock bumpers?
That relationship determines whether the installed system provides useful coverage.
The warehouse door opening does not tell you how wide the trailer is.
Trailer width should be measured separately because it determines how much side-curtain overlap is available.
When the trailer reaches the loading position, both side curtains should overlap the vehicle sufficiently to reduce the open side gaps.
A wider shelter is not automatically better.
If the distance between the side curtains is too large relative to the trailer, the curtains may barely contact the vehicle.
The shelter may look large enough to cover the doorway while still leaving significant gaps beside the trailer.
If the shelter opening is too narrow, the trailer can deflect the curtains excessively or contact the supporting structure.
This can increase abrasion, curtain damage, frame impact, and loading-clearance problems.
The correct shelter width should therefore accommodate the normal trailer range while maintaining useful curtain overlap.
If several carriers use the same dock, do not design from only one truck.
Collect the:
Minimum regular trailer width
Maximum regular trailer width
Most common trailer width
The shelter should perform particularly well for the vehicles responsible for most loading activity.
Trying to accommodate rare extreme vehicles can compromise performance for the regular fleet.
The top of the dock is another major leakage area.
Mechanical dock shelters normally use a flexible top curtain that extends downward over the upper rear section of the trailer.
If trailers are relatively similar in height, a fixed top-curtain configuration can provide consistent coverage.
When vehicle height varies significantly, the design becomes more challenging.
If a lower trailer arrives and the top curtain cannot reach it, outdoor air can pass through the remaining space above the vehicle.
This may reduce much of the benefit achieved by good side sealing.
Making the curtain longer is not always the correct solution.
A curtain hanging too far into the vehicle opening can reduce visibility, experience more contact with doors or cargo, and increase wear.
The goal is adequate overlap without unnecessarily obstructing the loading opening.
A Mechanical Dock Shelter has a practical vehicle range.
If the warehouse needs to seal trailers with very different heights while maintaining stronger environmental separation, a standard fixed top curtain may not provide consistent performance across the entire fleet.
In that situation, an adjustable or Inflatable Dock Shelter may need to be considered.
Dock bumpers are often viewed only as impact-protection products.
However, they also establish how close the trailer can move toward the building.
This makes bumper projection an important sealing dimension.
A trailer does not park directly against the wall.
It stops against the dock bumpers.
The shelter frame therefore needs enough projection for the side and top curtains to make the intended contact after the truck reaches this final position.
If thick bumpers keep the trailer farther from the building but the shelter projection is too short, the curtains may not reach the trailer effectively.
In this situation, increasing curtain width alone may not solve the problem because the basic trailer-to-wall distance is incorrect.
A shelter that projects farther than necessary can become more vulnerable to contact from misaligned trailers.
Projection should therefore be coordinated with:
Bumper thickness
Trailer stopping position
Vehicle alignment
Shelter frame geometry
Curtain contact area
The bumper and shelter should be treated as one system.
Even correctly sized equipment cannot compensate for severely misaligned vehicles.
A trailer positioned off-center changes the contact relationship on both sides of the shelter.
When the trailer is shifted to one side, one curtain may be heavily deflected while the opposite curtain barely contacts the vehicle.
The result can be both poor sealing and uneven curtain wear.
If the same side curtain repeatedly tears or wears much faster than the other side, the shelter itself may not be the only problem.
Check:
Driver approach angle
Parking markings
Dock bumpers
Yard geometry
Wheel guides
Shelter centering
Trailer fleet dimensions
Repeatedly replacing the same curtain without correcting the truck position may only reproduce the same failure.
Clear parking markings, driver instructions, and suitable vehicle-guidance measures can help improve trailer alignment.
The objective is not merely to make parking easier.
Consistent trailer position also helps the shelter create similar curtain contact from one loading cycle to the next.
A loading dock needs both environmental separation and enough clear space for the actual loading operation.
Improving sealing should not create a doorway that is too restrictive for forklifts and cargo.
When the warehouse door is already relatively narrow, side-curtain positioning becomes more important.
The design should consider:
Forklift width
Pallet width
Cargo overhang
Trailer rear opening
Required operating clearance
Increasing curtain overlap can reduce side gaps, but the curtains should not unnecessarily obstruct the working opening.
A successful dock design balances environmental coverage with practical material movement.
A very tall building opening combined with a much lower trailer can create a substantial upper gap.
The shelter top section must address this relationship without obstructing loading.
This is another reason the warehouse door and shelter should be selected together rather than independently.
The Mechanical Dock Shelter mainly performs while a trailer is positioned for loading.
The industrial door controls the opening before and after that loading operation.
An insulated industrial sectional door can provide a rigid closure when the loading position is not in use.
Its panels and perimeter seals help separate the warehouse from exterior conditions while closed.
A well-insulated sectional door cannot stop air entering around a trailer while the door is open.
Likewise, a dock shelter cannot replace the warehouse door after the truck leaves.
Both parts of the loading cycle need to be considered when evaluating environmental performance.
Opening the warehouse door long before the trailer is ready creates unnecessary exposure.
Leaving it open after loading is complete has the same effect.
Good operational sequencing can reduce unnecessary open time without changing the shelter itself.
Many facilities install a shelter and then assume it is working correctly because the product appears intact.
A better approach is to inspect the shelter while representative trailers are actually parked at the dock.
Stand in a safe location and evaluate whether both side curtains contact the trailer consistently.
Look for:
Large visible gaps
Weak curtain overlap
Excessive folding
One-sided compression
Torn edges
Contact with trailer hardware
One correctly fitting vehicle does not prove that the shelter fits the fleet.
Check representative low, high, narrow, wide, and commonly used vehicles where applicable.
Check whether the upper curtain overlaps the normal trailer roof area without excessive obstruction.
Look for open areas at the upper corners, especially when shorter trailers use the dock.
Possible signs of poor sealing can include:
Noticeable drafts
Rain intrusion
Repeated wet areas
Dust accumulation near the opening
Condensation around the dock
Large temperature variation near the loading position
These observations do not by themselves measure exact energy savings, but they can identify sealing problems that need further investigation.
When adjusting curtain dimensions, bumper projection, or trailer alignment procedures, observe whether the visible gaps and loading-area conditions improve.
This is more useful than assuming performance has improved simply because a new component was installed.
The two products use different sealing principles.
A Mechanical Dock Shelter uses flexible curtain overlap.
A Foam Dock Seal uses direct foam compression against the trailer.
When trailer width, height, rear opening, and parking position remain predictable, foam pads can be sized around a stable contact area.
This can provide close compression around the vehicle.
The side pads occupy space around the trailer rear opening.
Before selecting a Foam Dock Seal, the remaining clear area should be checked against forklift and cargo dimensions.
Where several normal trailer sizes use the same dock, flexible curtains can accommodate more variation without requiring the same degree of compression.
The trade-off is that a standard mechanical shelter generally does not create the same type of close-fitting seal as a well-matched foam system.
The better choice depends on vehicle consistency and required sealing level.
An Inflatable Dock Shelter uses powered air bags or inflatable sections that remain retracted during vehicle approach and extend after the truck reaches its parking position.
This provides a different level of sealing control.
They can be considered for applications such as temperature-controlled loading where stronger contact around a range of trailers is required.
However, inflatable systems add blower equipment, controls, air bags, and an operating sequence that must be maintained.
Inflatable side and top sections still have defined working dimensions.
The minimum and maximum trailer width and height must be confirmed before design.
If the vehicle range is too large, one shelter may not realistically seal every vehicle.
Where the main objective is reducing weather exposure and general air exchange around a mixed but controlled trailer fleet, the additional complexity of an inflatable system may not be necessary.
The sealing level should match the real environmental requirement.
Mechanical shelters are useful, but they should not be presented as the correct solution for every temperature-controlled facility.
Facilities with large indoor-outdoor temperature differences may need to reduce air exchange more aggressively.
If a mechanical shelter leaves unavoidable gaps because of trailer variation, another sealing solution should be evaluated.
If the same dock must handle both very small and very large vehicles, one fixed mechanical shelter may not maintain consistent contact.
Trying to make one loading bay accommodate every possible trailer can create poor performance for the majority of vehicles.
Where the fleet variation is unusually large, assigning different vehicle groups to different dock positions can provide more predictable sealing.
A dock shelter that was correctly sized when new can gradually lose performance as curtains and structures wear.
Energy-related performance therefore depends on maintaining the original contact geometry.
Check for:
Tears
Abrasion
Loose edges
Damaged stitching
Permanent deformation
Reduced curtain overlap
Contact damage from trailer hardware
A tear near a high-contact area can open wider when the trailer deflects the curtain.
Damaged material should therefore be evaluated according to how it affects actual trailer contact, not only its visual size when the dock is empty.
A bent or loose frame changes curtain position.
Check:
Wall fixing points
Brackets
Fasteners
Frame alignment
Side projection
Signs of trailer impact
Worn or damaged bumpers can change the trailer stopping position.
Because shelter projection is based on that position, bumper wear can indirectly change sealing performance even when the shelter itself remains undamaged.
When performance declines, inspect the complete interface:
Trailer → bumper → shelter → door opening
Focusing only on curtain replacement can miss the real source of the problem.
Poor sealing does not always mean the entire dock shelter needs replacement.
First identify why the gaps are occurring.
Check:
Trailer width
Shelter opening width
Curtain width
Shelter projection
Bumper projection
The problem may be incorrect product dimensions or a vehicle fleet that has changed since installation.
Check:
Lowest regular trailer height
Highest regular trailer height
Top-curtain position
Door height
Shelter mounting height
A revised top curtain may solve a moderate coverage problem, while a very wide height range may require another shelter design.
Check vehicle alignment before modifying the shelter.
The issue may come from parking angle, worn bumpers, yard layout, or an incorrectly centered installation.
Look beyond the shelter.
Other factors may include:
Door opened too early
Door left open after loading
Damaged industrial door seals
Large gaps around the dock leveler
Building pressure
Long loading duration
Frequent trailer changes
The dock shelter addresses only the space around the trailer.
A loading dock should be evaluated as a complete interface rather than expecting one sealing product to correct every source of heat or air exchange.
A reliable recommendation requires actual vehicle and site dimensions.
Provide:
Minimum regular trailer width
Maximum regular trailer width
Typical trailer width
Minimum trailer height
Maximum trailer height
Typical trailer height
Trailer bed height
Rear opening dimensions
Rear photographs
Special rear structures
The shelter should be optimized around the vehicles responsible for most loading operations.
Extreme vehicles used only occasionally should be identified separately.
Provide:
Door opening width
Door opening height
Side space
Top space
Wall structure
Distance from the opening to the dock face
Provide:
Dock height
Dock bumper thickness
Bumper projection
Dock leveler type
Dock leveler size
Trailer stopping distance
Vehicle restraint position where applicable
Without knowing where the trailer actually stops, the supplier cannot accurately determine the relationship between the shelter projection and vehicle.
This dimension should not be omitted from the project data.
Explain whether the facility is:
A general dry warehouse
Heated or air-conditioned
Temperature-controlled
Chilled storage
Frozen storage
Food logistics
Another environment with specific sealing requirements
Also provide expected indoor and outdoor temperatures where temperature separation is important.
A Mechanical Dock Shelter is generally a good candidate when:
The warehouse handles a reasonable range of trailer sizes
General air-exchange reduction is required
Rain, wind, and dust protection are important
Flexible vehicle compatibility is preferred
The facility does not require an extremely tight trailer-to-building seal
Loading clearance needs to remain relatively open
A simple passive curtain system is preferred
The actual result depends on how well the shelter fits the vehicle and how the loading dock operates.
A poorly sized “energy-saving” shelter can perform worse than a simpler product correctly matched to the trailer.
Before comparing fabric strength, frame design, or optional accessories, confirm:
Trailer size → Door opening → Dock height → Bumper projection → Truck stopping position → Curtain overlap
If those relationships are wrong, additional product features cannot fully correct the sealing problem.
A Mechanical Dock Shelter can help reduce loading dock energy loss by limiting uncontrolled airflow around the sides and top of a parked trailer.
Its effectiveness, however, depends much more on correct application than simply installing a shelter around the warehouse door.
Trailer width determines side-curtain overlap. Trailer height determines top coverage. Dock bumpers establish the final vehicle position. Shelter projection determines whether the curtains can reach the trailer. Door dimensions influence loading clearance, while operating procedures determine how long the building remains open.
For general warehouses and logistics facilities, a correctly sized Mechanical Dock Shelter can provide a practical balance of vehicle flexibility, weather protection, and reduced air exchange.
Where temperature-control requirements are much stricter, or where trailer dimensions vary beyond the practical range of a mechanical system, an Inflatable Dock Shelter or another sealing configuration may be more suitable.
The most effective energy-saving strategy is therefore not to choose the most complex sealing product. It is to match the shelter, trailer, door, bumpers, and operating sequence so that the loading dock maintains consistent contact with minimal unnecessary exposure.
