Modern manufacturing facilities depend on efficient material flow, reliable access points, controlled working environments, and safe loading operations. From raw material receiving and internal production areas to finished goods warehouses and shipping docks, industrial doors and loading dock equipment play an important role in daily operations.
However, different areas of a manufacturing plant have very different requirements.
An internal forklift passage may require a fast-opening door to reduce waiting time, while an exterior warehouse entrance may need better insulation and structural stability. At the loading dock, the focus shifts to connecting trucks with the warehouse platform, protecting the loading area, and creating a safer operating process.
For this reason, industrial doors and loading dock equipment should be planned according to actual operating conditions rather than selected as isolated products.
This guide explains the main types of industrial doors, high speed doors, dock levelers, dock shelters, dock seals, and loading dock safety equipment used in manufacturing facilities and how to select the right solution for different applications.
Industrial doors are more than entrances to a building. They influence traffic efficiency, environmental separation, energy use, and warehouse organization.
Manufacturing facilities may contain:
Production workshops
Raw material warehouses
Assembly areas
Packaging areas
Cold or temperature-controlled rooms
Finished goods warehouses
Maintenance workshops
Internal logistics passages
Loading and unloading areas
Each location requires a different balance between opening speed, insulation, sealing, structural strength, visibility, and installation space.
Forklifts, pallet trucks, employees, and automated material handling equipment may move repeatedly between different production and warehouse zones.
If a door opens slowly or remains open longer than necessary, it can create traffic delays.
Selecting a door based on actual traffic conditions can help create smoother movement between work areas.
Important factors include:
Forklift frequency
Vehicle dimensions
Pedestrian traffic
One-way or two-way movement
Operating cycles
Required opening speed
Automatic activation method
Understanding these conditions is one of the first steps in selecting the correct industrial door.
High speed doors are commonly installed in areas where frequent access and rapid opening are required.
Their main advantage is their ability to open and close quickly, helping reduce the time that an opening remains exposed.
They are particularly useful for internal production and logistics passages.
PVC High Speed Doors for Interior Applications
PVC high speed doors are widely used inside manufacturing buildings where forklifts and personnel frequently move between different areas.
Typical applications include:
Production passages
Packaging zones
Component warehouses
Assembly areas
Material transfer areas
Internal logistics corridors
In busy manufacturing environments, forklifts may pass through the same opening many times during a working shift.
Fast door movement can reduce waiting time and improve traffic flow.
Different activation options can be used depending on the application, including:
Radar sensors
Loop detectors
Pull cords
Remote controls
Push buttons
Access control systems
The activation method should be selected according to the traffic pattern around the doorway.
Self-Repairing High Speed Doors
A self-repairing high speed door uses a flexible curtain and specialized guide system.
If the curtain is displaced from the guides after certain accidental contact, it can return to its normal operating position during the next operating cycle.
This design can be useful in manufacturing areas where forklift traffic is frequent and minor accidental contact is more likely.
Typical applications include:
Logistics corridors
Packaging areas
Warehouses
Production entrances
Material handling passages
Self-repairing capability can help reduce downtime caused by minor curtain displacement.
High Speed Stacking Doors for Larger Openings
Larger industrial entrances may require additional curtain stability.
High speed stacking doors use horizontal reinforcement sections and a folding lifting method to provide better resistance to wind pressure than lightweight interior high speed doors.
They may be suitable for:
Large workshop entrances
Manufacturing buildings
Logistics warehouses
Vehicle passages
Exterior industrial entrances
The larger the opening, the more important wind pressure becomes.
Before selecting a stacking high speed door, the project should provide information about:
Opening width
Opening height
Indoor or outdoor installation
Local wind conditions
Traffic frequency
Available installation space
This information helps determine the appropriate door structure.
High Speed Spiral Doors for Exterior Entrances
Some manufacturing applications require both fast operation and a rigid insulated door structure.
A high speed spiral door uses rigid insulated sections instead of a flexible fabric curtain.
This provides a combination of:
Fast operation
Stronger structural performance
Improved insulation
Better sealing
Professional exterior appearance
High speed spiral doors can be considered for:
Main production entrances
Exterior logistics passages
Temperature-controlled areas
Clean manufacturing zones
High-value equipment areas
Because rigid high speed doors use a different mechanical structure, sufficient installation space is important.
Before production, confirm:
Opening dimensions
Left-side clearance
Right-side clearance
Headroom
Wall structure
Motor position
Electrical requirements
Reviewing these dimensions before production can prevent installation conflicts on site.
Industrial Sectional Doors for Warehouses and Workshops
Not every entrance requires high speed operation.
Industrial sectional doors are commonly used for exterior warehouse entrances, workshops, maintenance buildings, and logistics areas.
They open vertically and move along tracks inside the building, helping reduce the space required in front of the opening.
Industrial sectional doors can use insulated steel or aluminum panels to improve thermal performance.
Panel thickness can be selected according to project requirements.
Typical areas include:
Finished goods warehouses
Raw material warehouses
Maintenance workshops
Production support buildings
Logistics facilities
Equipment access points
Window sections can also be added when additional natural light or visibility is required.
Manufacturing buildings have different ceiling structures and available headroom.
Sectional doors can therefore use different track configurations depending on the building design.
The supplier normally needs:
Opening width
Opening height
Headroom
Side room
Ceiling height
Roof structure
Obstacles above the opening
These measurements help determine the most suitable track arrangement.
The loading dock is one of the most important logistics areas in a manufacturing plant.
Raw materials and components enter the facility through loading bays, while finished goods leave through the same logistics system.
A properly designed loading dock can help forklifts move between trucks and warehouse platforms more efficiently.
A complete loading dock system may include:
Dock levelers
Dock shelters
Dock seals
Dock bumpers
Vehicle restraint systems
Traffic lights
Safety equipment
Industrial dock doors
Hydraulic dock levelers are commonly installed in loading bays to bridge the height difference between the warehouse platform and truck bed.
The platform rises and the lip connects with the vehicle to create a transition surface for forklifts.
Hydraulic operation provides controlled platform movement and is suitable for regular industrial loading operations.
Common benefits include:
Simple operation
Stable movement
Strong load capacity
Suitable for forklift traffic
Integration with other loading dock equipment
Load capacity should not be determined only by the weight of the goods.
Consider the combined operating conditions, including:
Forklift weight
Cargo weight
Number of wheels
Wheel contact pressure
Loading frequency
The correct capacity should be confirmed according to actual site conditions.
Telescopic dock levelers use an extendable lip that can be positioned toward the truck bed.
This provides greater control over the connection between the dock platform and the vehicle.
They may be suitable when:
Different truck sizes use the same loading bay
Vehicle positioning varies
Precise lip placement is required
Cargo is positioned close to the rear of the trailer
Flexible loading operations are important
The operator can control how far the lip extends onto the vehicle bed.
This can provide more flexibility than a conventional hinged lip in certain loading situations.
Airbag dock levelers use an air-powered lifting system to raise the platform.
They provide an alternative to traditional hydraulic lifting systems for standard loading dock applications.
Airbag dock levelers may be used in:
Manufacturing warehouses
Distribution areas
Food production facilities
General logistics centers
Finished goods warehouses
The airbag lifting system provides a relatively simple platform lifting method while maintaining stable operation for standard loading activities.
Project selection should still consider load capacity, vehicle height range, platform dimensions, and operating frequency.

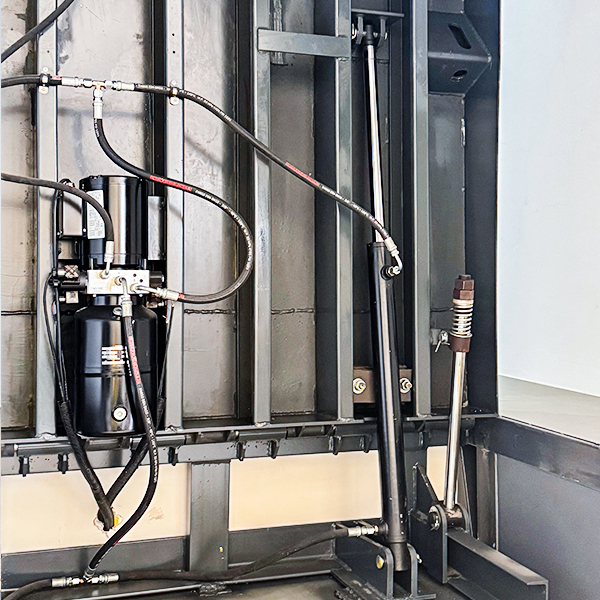

Vertical dock levelers are stored upright inside the building when they are not in use.
This design allows the dock door to remain closed closer to the loading opening until loading operations begin.
Vertical dock levelers may be suitable for:
Cold storage facilities
Food manufacturing
Pharmaceutical production
Temperature-controlled warehouses
Clean logistics environments
Because the leveler remains inside the building in its stored position, the door can remain closed for longer during the vehicle positioning process.
This can help reduce unnecessary outside air entering the warehouse.
When a truck reverses toward a warehouse opening, gaps remain around the vehicle.
Dock shelters and dock seals help reduce these gaps and improve protection around the loading area.
They can help limit:
Rain
Wind
Dust
Outdoor air
Temperature exchange
Mechanical dock shelters use flexible side and top curtains that contact the truck body when the vehicle reaches the loading position.
Mechanical dock shelters can accommodate a range of truck dimensions.
They are commonly used in:
Manufacturing plants
Logistics warehouses
Distribution centers
General loading docks
Before selecting a dock shelter, provide:
Minimum truck width
Maximum truck width
Minimum truck height
Maximum truck height
Dock platform height
Door opening dimensions
This information helps determine the appropriate shelter size.
Inflatable dock shelters use air-filled side and top cushions that inflate around the vehicle after it is positioned at the dock.
The inflatable structure can create closer contact with the vehicle body.
It may be suitable for facilities with higher requirements for:
Temperature control
Dust reduction
Weather protection
Loading area cleanliness
When truck heights vary significantly, the inflation range must be carefully evaluated.
A shelter should not be selected only according to the largest vehicle.
Both the minimum and maximum vehicle dimensions should be considered.
Loading docks involve forklifts, trucks, warehouse staff, and drivers working close to one another.
For this reason, loading dock safety should be considered during the design stage.
Vehicle restraint systems help secure trucks in position during loading and unloading operations.
Unexpected trailer movement can create a gap between the truck and loading dock.
A properly selected restraint system can support a more controlled loading process.
Vehicle restraints may be integrated with:
Traffic lights
Dock levelers
Industrial doors
Warning signals
Sensors
Control panels
The exact operating sequence should be designed according to site procedures and local safety requirements.
Dock bumpers help protect the building and loading dock structure when trucks reverse toward the platform.
Repeated truck contact can damage concrete, steel structures, and loading dock equipment.
Dock bumpers provide a contact surface between the truck and dock structure.
Bumper dimensions and position should match:
Truck configuration
Dock height
Platform structure
Loading bay design
Loading dock products should not be selected separately whenever possible.
The industrial door, dock leveler, dock shelter, vehicle restraint, and control system all operate within the same loading bay.
Poor coordination can create installation or operating conflicts.
A standard manufacturing loading bay may include:
Industrial sectional door
Hydraulic or telescopic dock leveler
Dock shelter or dock seal
Dock bumpers
Vehicle restraint system
Traffic lights
Safety and control system
A coordinated loading process may follow this sequence:
The vehicle reverses toward the loading bay and reaches the correct loading position.
The vehicle restraint or applicable site safety procedure secures the truck.
The warehouse door opens after the vehicle is correctly positioned.
The dock leveler platform rises and the lip connects with the truck bed.
Forklifts move between the warehouse and trailer.
After loading is complete, the leveler returns, the door closes, and the truck is released according to the site's operating procedure.
Selecting the correct industrial door begins with understanding the application.
First confirm whether the door is installed:
Inside the building
At an exterior opening
Between temperature zones
At a warehouse entrance
At a loading dock
At a large vehicle passage
Exterior doors normally require greater consideration of wind pressure, weather exposure, insulation, and structural stability.
Interior doors often focus more on traffic efficiency and separation between working areas.
Accurate dimensions are essential before selecting the door structure.
Provide:
Width
Height
Left-side space
Right-side space
Headroom
Ceiling height
The surrounding wall or steel structure should also be reviewed.
For large or heavy industrial doors, sufficient structural support is especially important.
Door type should match the real operating conditions.
Important information includes:
Number of daily operations
Forklift traffic
Pedestrian traffic
Vehicle type
Activation method
For example:
Internal frequent forklift traffic → PVC high speed door
Areas with accidental curtain contact risk → self-repairing high speed door
Large exterior opening → stacking high speed door
Exterior opening requiring rigid insulation → high speed spiral door
Standard warehouse entrance → industrial sectional door
Environmental conditions can significantly influence door selection.
Consider:
Wind pressure
Indoor temperature
Outdoor temperature
Dust
Humidity
Rain exposure
Required insulation
A door suitable for an internal production corridor may not be suitable for a large exterior entrance.
Selecting different door types for different areas often produces a more practical overall solution.
Loading dock design requires information about both the building and the vehicles.
Provide:
Platform height
Door opening dimensions
Existing pit dimensions
Distance between loading bays
Available installation space
For an existing loading dock, pit dimensions and building conditions should be checked carefully.
For a new project, dock leveler dimensions can be coordinated earlier with the civil construction design.
Vehicle data should include:
Minimum truck height
Maximum truck height
Minimum truck bed height
Maximum truck bed height
Truck width
Vehicle type
Manufacturing facilities may receive trucks from different suppliers.
Designing the loading bay around only one vehicle can create problems when different trucks arrive.
The full operating range should therefore be considered.
Preventive maintenance helps industrial doors and loading dock equipment maintain stable operation.
Regular inspection may include:
Tracks
Guides
Door curtain or panels
Motors
Control systems
Sensors
Safety edges
Fasteners
Sealing components
Sensors and other safety devices should be inspected according to the manufacturer's maintenance instructions.
Damaged components should be repaired before continued operation.
Regular checks may include:
Platform structure
Lip plate
Hinges
Hydraulic system
Airbag system where applicable
Safety support devices
Electrical controls
A loading bay operating continuously throughout the day may require more frequent inspection than a lower-use facility.
Maintenance schedules should therefore reflect actual operating conditions.
Planning industrial doors and loading dock equipment together can provide several practical benefits.
The correct door type can reduce unnecessary waiting at production and warehouse passages.
Dock levelers create a smoother transition for forklifts moving between trucks and buildings.
Fast-closing doors and dock shelters help reduce unnecessary exposure between different environments.
Vertical-opening industrial doors can reduce the space required around entrances.
Reviewing doors, levelers, shelters, vehicle restraints, and controls together helps identify dimensional or operational conflicts before installation.
Using a coordinated system can simplify spare parts planning, maintenance procedures, and technical support.
Different manufacturing industries have different operating requirements.
Common priorities include:
Temperature control
Hygiene
Separation between areas
Fast internal traffic
Dock sealing
Typical solutions may include self-repairing high speed doors, insulated industrial doors, vertical dock levelers, and inflatable dock shelters.
Automotive factories often have intensive internal logistics and frequent forklift movement.
Typical solutions may include:
High speed doors
Stacking high speed doors
Industrial sectional doors
Hydraulic dock levelers
Telescopic dock levelers
Dock shelters
Vehicle restraint systems
These environments often require controlled access and better separation between areas.
High speed doors and carefully sealed loading areas can form part of the overall environmental control strategy.
Large manufacturing facilities frequently include dedicated logistics warehouses.
A complete system may include industrial sectional doors, dock levelers, dock shelters, dock bumpers, and dock safety systems.
There is no single door type suitable for every area.
Selection should consider the installation location, opening size, traffic frequency, wind conditions, insulation requirements, and available installation space.
High speed doors are suitable where frequent traffic requires faster opening and closing.
Common applications include production passages, forklift entrances, logistics corridors, warehouses, and controlled manufacturing areas.
Normally, the supplier needs:
Quantity
Opening width
Opening height
Installation location
Available side room
Available headroom
Required voltage
Application conditions
The door structure, track arrangement, motor position, and installation method depend on the available building space.
A standard hydraulic dock leveler normally uses a hinged lip, while a telescopic dock leveler uses an extendable lip.
Hydraulic dock levelers are suitable for many standard loading bays.
Telescopic dock levelers can provide greater control over lip positioning where vehicle dimensions or truck positions vary.
A dock shelter helps reduce gaps around a truck during loading operations.
It can help reduce rain, wind, dust, and outside air entering the loading area.
Yes, especially for new manufacturing facilities or loading dock renovation projects.
The door, dock leveler, shelter, restraint system, and controls all operate within the same loading bay.
Coordinated planning can reduce installation conflicts and create a more practical operating sequence.
Industrial doors and loading dock equipment are important components of a modern manufacturing facility.
Different areas require different solutions.
High speed doors can support frequent internal traffic and production area separation. High speed stacking doors and spiral doors provide solutions for larger or more demanding entrances, while industrial sectional doors are suitable for many warehouses and exterior openings.
At the loading dock, hydraulic, telescopic, airbag, and vertical dock levelers help connect warehouse platforms with trucks. Dock shelters, dock seals, bumpers, vehicle restraint systems, and control equipment can then be combined to create a more complete loading bay solution.
The most effective system should always be based on actual project conditions, including:
Opening dimensions
Installation space
Traffic frequency
Vehicle dimensions
Dock platform height
Forklift load
Environmental conditions
Safety requirements
Electrical requirements
By evaluating industrial doors and loading dock equipment as one integrated system instead of purchasing individual products independently, manufacturing facilities can achieve better traffic flow, more efficient loading operations, improved environmental separation, and more reliable long-term performance.
