A bottled water or beverage factory does not use its loading dock in the same way as a general warehouse.
At one end of the plant, packaging materials, ingredients, empty containers, caps, labels, pallets, and other production supplies arrive. At the other end, finished beverages leave the facility in dense palletized loads, often according to tight delivery schedules.
Between these two points are production lines, palletizers, finished goods warehouses, forklifts, staging areas, and truck traffic.
The loading dock therefore sits directly between production and distribution.
A problem at the dock does not remain a dock problem for long. If trucks cannot be unloaded efficiently, incoming packaging materials may be delayed. If finished product cannot leave on schedule, warehouse staging areas can fill quickly and begin affecting upstream production.
This is why loading dock equipment for bottled water and beverage factories should be selected according to the complete material flow rather than treated as a group of independent products.
A typical solution may include:
Hydraulic or telescopic dock levelers
Industrial sectional doors
High speed doors
Dock shelters or dock seals
Dock bumpers
Vehicle restraint systems
Traffic lights
Safety controls
Corrosion-resistant components where required
This guide looks specifically at how beverage production conditions influence loading dock design and equipment selection.
Before selecting a dock leveler or dock shelter, it is useful to walk through the facility as the goods do.
A beverage plant normally has at least two very different logistics flows.
Inbound trucks may deliver:
PET preforms or empty bottles
Aluminum cans
Glass bottles
Caps and closures
Labels
Cartons
Shrink film
Pallets
Ingredients and concentrates
Production consumables
These loads often arrive from multiple suppliers using different trailers.
The plant may have little control over the exact trailer type used by every supplier.
For this reason, inbound loading bays often need more flexibility than a dock serving one dedicated vehicle fleet.
Truck bed height, rear construction, trailer width, and vehicle positioning should all be considered before selecting the dock leveler and shelter.
Outbound logistics are often more predictable but potentially more intensive.
Finished bottled water and beverages are typically palletized before entering the finished goods warehouse.
The pallets may then move rapidly from storage or staging areas toward outbound trailers.
Cases of bottled beverages contain a large amount of liquid relative to their footprint.
As a result, finished beverage pallets can create demanding forklift operating conditions.
The dock leveler should therefore be selected using the combined operating load, not simply the nominal weight of one pallet.
Forklift weight, cargo weight, wheel configuration, traffic frequency, and loading pattern all need to be considered.
A beverage loading dock may look similar to a conventional warehouse dock, but the operating environment can be different.
Several factors deserve additional attention.
Large beverage factories may move finished pallets continuously from production or warehouse staging areas to outbound trucks.
Forklifts repeatedly cross the same leveler, threshold, and dock floor.
Two loading docks may use exactly the same forklift and pallet weight but experience very different service conditions.
A dock handling occasional deliveries is not exposed to the same repeated movement as a high-output bottling plant operating multiple shifts.
When selecting a dock leveler, consider:
Maximum combined load
Number of daily loading cycles
Forklift type
Wheel contact
Direction of travel
Number of working shifts
This gives a more realistic picture than selecting equipment from load capacity alone.
Beverage production environments often involve water, cleaning, condensation, or moisture in parts of the facility.
Not every loading dock is directly exposed to washdown, but wet conditions may still occur around entrances, floors, or exterior dock equipment.
Wet loading surfaces can reduce traction for forklifts and personnel.
Dock floors, leveler platforms, and transition areas should therefore be kept clean and maintained in suitable condition.
Where moisture exposure is expected, corrosion resistance and anti-slip surface condition should also be considered during equipment selection and maintenance.
One of the most common mistakes in industrial projects is using the same door type everywhere.
A beverage factory normally benefits from several door solutions because production, warehouse, and loading dock areas operate differently.
The passage between production, palletizing, warehouse, and logistics areas may experience frequent forklift traffic.
Keeping a conventional door open all day eliminates most of its ability to separate the two zones.
Typical positions include:
Bottling area to finished goods warehouse
Packaging area to pallet storage
Internal forklift passages
Warehouse zoning points
Production support areas
Temperature-separated spaces
The objective is not simply to make the door move fast.
The door should open at the right time for an approaching forklift and close after the traffic has cleared.
Activation options may include radar, induction loops, pull cords, remote controls, or other access systems.
A well-positioned sensor can support smoother traffic while avoiding unnecessarily long opening periods.
Forklift traffic creates another practical concern: accidental curtain contact.
Even experienced operators can occasionally contact a flexible door curtain during busy production or warehouse operations.

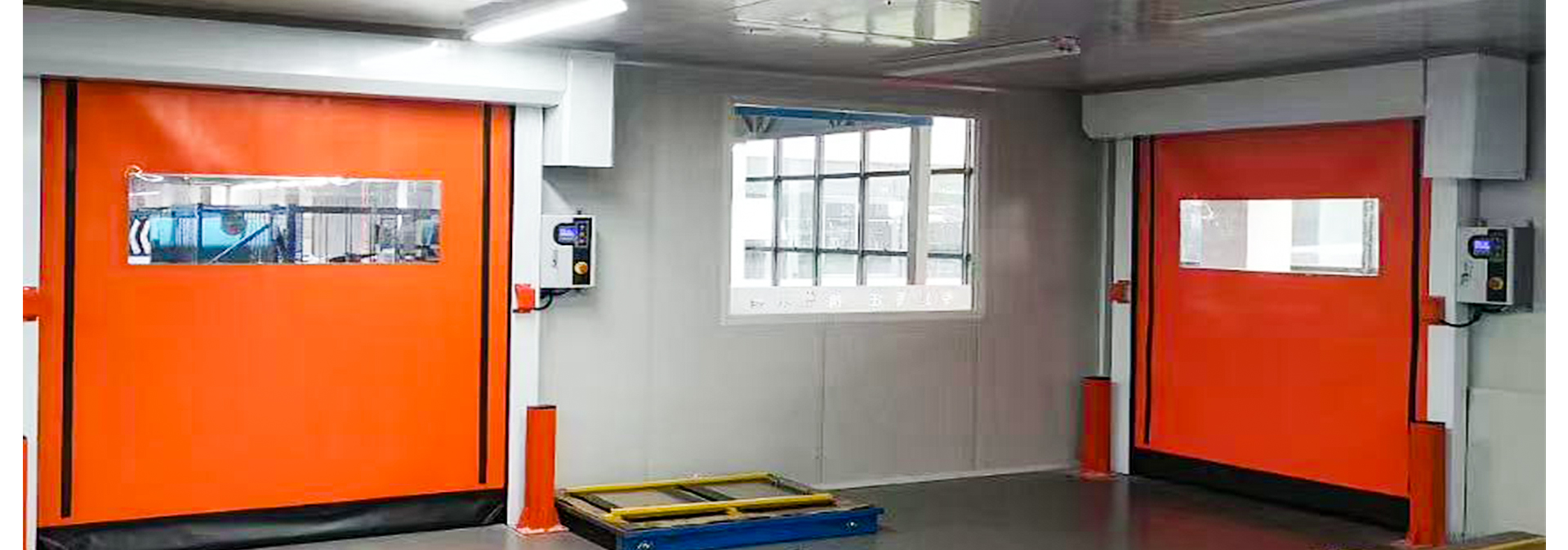

A self-repairing high speed door uses a flexible curtain and guide arrangement that can return the curtain to its operating track after certain types of displacement.
This can be particularly useful around:
Finished goods warehouses
Pallet transfer zones
Internal logistics corridors
Packaging areas
The benefit is not that collisions become acceptable.
The benefit is reducing unnecessary downtime after minor accidental contact.
At the loading dock itself, the operating priority changes.
The door is no longer simply separating two internal zones. It is part of the building envelope and the vehicle interface.
Industrial sectional doors are therefore commonly used at external loading bays.
Their vertical-opening structure keeps the door clear of the loading platform when open.
When closed, insulated panels and perimeter seals can help separate the warehouse from outside conditions.
The sectional door should be reviewed together with:
Dock leveler position
Shelter dimensions
Dock height
Bumper position
Available headroom
Track arrangement
Vehicle size
Designing these separately can cause problems during installation.
The dock leveler creates the actual driving surface between the fixed warehouse platform and trailer.
For beverage logistics, this transition is particularly important because forklifts may carry dense palletized loads repeatedly throughout the day.
Hydraulic dock levelers are suitable for many standard beverage loading applications.
The platform rises hydraulically and the lip is positioned onto the trailer bed.
They are practical when:
Trailer types are relatively consistent
Loading bays have conventional pits
Palletized goods are handled regularly
Forklift traffic is predictable
Simple operator control is preferred
Suppose the pallet is heavy but the forklift is even heavier.
Both move across the platform together.
That means the relevant operating condition includes the forklift, pallet, dynamic movement, and repeated loading cycles.
This is especially important in bottled water plants where finished products can create concentrated, repetitive pallet handling.
Some beverage factories serve multiple markets or use several transportation companies.
This may result in greater variation in trailer positioning and bed height.
A telescopic dock leveler can provide additional flexibility.
Instead of relying only on a hinged lip, the lip extends toward the vehicle.
The operator can therefore control the overlap with the truck bed more precisely.
A telescopic leveler may be worth considering when:
Different trailer types use one dock
Precise lip positioning is required
Vehicle positioning varies
Loads sit close to the rear of the trailer
A longer controllable overlap is beneficial
Vehicle dimensions and rear bumper configuration should still be confirmed before the leveler is selected.
Airbag dock levelers use an air-powered lifting arrangement to raise the platform.
They provide another option for conventional loading dock applications.
They may be considered for general beverage warehouse loading where vehicle ranges and loading conditions are relatively standard.
The choice between hydraulic and airbag systems should consider:
Required capacity
Loading frequency
Maintenance preferences
Environment
Vehicle height range
Project budget
No lifting system should be selected only because it appears simpler on a product list.
Beverage facilities should also consider where the dock equipment is installed and what environmental exposure it will experience.
A leveler installed almost entirely inside a protected dock pit experiences different conditions from an exposed outdoor component.
Depending on the application, possible approaches may include:
Standard coated steel
Improved protective coatings
Galvanized components
Stainless steel components in selected areas
The correct material should be chosen according to moisture, cleaning practices, outdoor exposure, and project requirements.
Using stainless steel everywhere is not automatically necessary or economical.
A dock leveler connects the floor, but it does not seal the space around the truck.
When the trailer backs into the loading bay, gaps remain around the sides and top.
These gaps can allow:
1、Rain
2、Dust
3、Wind
4、Outdoor air
5、Heat
6、Cold
into the loading area.
Mechanical dock shelters use flexible side curtains and a top curtain around the vehicle.
They are often practical for beverage distribution because suppliers and carriers may use slightly different truck sizes.
The curtains can accommodate a reasonable range of vehicle dimensions.
Before confirming shelter dimensions, collect:
Minimum vehicle height
Maximum vehicle height
Truck width
Dock platform height
Door opening size
A shelter selected without this information may work well for one truck and poorly for another.
Some beverage plants need closer environmental separation.
This may apply to facilities handling temperature-sensitive products, controlled warehouse environments, or areas where outside contamination needs to be reduced.
After the vehicle reaches the dock, inflatable side and top cushions expand toward the truck body.
This allows closer contact around the trailer.
Inflatable systems cannot be designed only from the largest truck.
If the difference between the smallest and tallest vehicle is too large, achieving effective sealing for both may become difficult.
The full fleet range should be evaluated before the shelter dimensions are finalized.
Dock bumpers are often treated as simple accessories.
In reality, they help determine the final relationship between the vehicle and building.
When the truck reverses to the dock, its rear structure contacts the bumpers.
This determines how far the trailer sits from the building.
Bumper position can influence:
Dock leveler lip overlap
Shelter compression
Vehicle restraint position
Door clearance
Building protection
For this reason, dock bumpers should be reviewed as part of the complete dock geometry.
Many beverage plants focus heavily on production line speed.
But increasing bottling capacity is useful only if finished goods can leave the production area efficiently.
A typical finished-product flow may look like this:
Production line → packaging → palletizer → stretch wrapping → finished goods staging → warehouse → loading dock → trailer.
If forklifts repeatedly wait at warehouse doors, loading bays, or dock levelers, the restriction may not be in the production line at all.
This is why door speed and loading dock capacity should be evaluated together with warehouse logistics.
Inbound and outbound docks do not always need identical equipment.
Supplier trucks may vary more in dimensions and arrival patterns.
Inbound bays may therefore benefit from greater vehicle compatibility.
These can include:
Flexible dock leveler range
Adaptable dock shelter
Efficient inspection access
Safe unloading
Easy movement toward raw material storage
Finished-product trailers may operate on more predictable routes.
Here, the priority may shift toward fast turnover and consistent forklift movement.
These can include:
Reliable dock leveler operation
Efficient sectional doors
Trailer restraint
Clear traffic signals
Short forklift travel distance from staging
Separating the design logic for inbound and outbound bays can produce a better overall system than simply copying one dock specification across the entire building.
Water and beverage demand can change substantially according to weather, holidays, promotions, and market activity.
Production and shipping volumes may therefore rise sharply during peak periods.
A factory may temporarily increase:
Production shifts
Pallet movement
Trailer arrivals
Warehouse staging
Loading cycles
A loading bay that is unavailable during a quiet period is inconvenient.
The same failure during peak production can create truck queues and warehouse congestion.
Preventive maintenance should therefore be planned before known high-volume periods whenever possible.
Forklifts are central to beverage logistics, but loading docks create several operating risks.
Forklift operators must transition between the warehouse floor, dock leveler, and trailer while carrying heavy loads.
Moisture can make floor and platform surfaces slippery.
Regular inspection should focus on:
Water
Oil
Debris
Damaged anti-slip surfaces
Loose packaging material
Broken pallet pieces
The transition from warehouse floor to dock leveler and trailer should remain clear and stable.
A second important issue is movement of the trailer while a forklift is inside or crossing between truck and dock.
Vehicle restraints can help keep a trailer in the intended loading position.
Depending on the project, the system can work with:
External traffic lights
Internal warning lights
Dock leveler controls
Door controls
Sensors
This creates a clearer communication sequence between the driver and warehouse operator.
A useful improvement for high-throughput beverage factories is to coordinate equipment operation.
For example, the dock leveler does not necessarily need to be operable while the sectional door is still closed.
A possible sequence is:
Truck positioned → vehicle secured → dock door fully opened → dock leveler enabled → loading begins.
A coordinated sequence can help reduce incorrect operation and protect equipment from avoidable contact.
The actual control logic should always be developed according to the equipment configuration and site safety procedures.
A beverage factory may use both high speed doors and industrial sectional doors, but usually for different purposes.
Best suited to frequent internal movement where opening speed matters.
Better suited to many exterior loading dock positions where insulation, sealing, and building closure are the primary requirements.
The goal should not be to standardize every opening with one door type.
A more effective factory layout selects the door according to what happens at that specific opening.
A loading dock is not normally part of the filling process itself, but it still connects the factory with the external logistics environment.
Dust, damaged packaging, rainwater, pests, dirt from vehicles, and debris can all enter through poorly managed loading areas.
Loading areas should support the facility's overall hygiene and housekeeping procedures.
These may include:
Accessible cleaning areas
Controlled gaps around doors
Suitable shelter sealing
Easy-to-inspect surfaces
Appropriate drainage
Corrosion-resistant materials where needed
Separation between dirty exterior traffic and controlled interior areas
Equipment specification should follow the facility's actual sanitation requirements rather than assuming every beverage dock needs the same hygienic configuration.
Although bottled water and beverage plants share many requirements, bottled water production deserves separate attention.
Bottled water operations may handle large volumes of similar finished products.
The loading process can therefore become highly repetitive.
If the outbound fleet, pallets, and loading method are standardized, the loading bays can be configured around that predictable operating pattern.
This may simplify:
Dock leveler selection
Shelter sizing
Traffic control
Forklift routes
Maintenance planning
Other beverage manufacturers may handle more product categories, packaging formats, or temperature requirements.
One factory may ship:
PET bottles
Glass bottles
Cans
Cartons
Multipacks
Different products can create different pallet heights, storage layouts, loading schedules, and vehicle requirements.
The dock should therefore be planned around the actual product mix rather than simply using a generic “beverage industry” specification.
For a new project, equipment should be considered before the concrete dock and building openings are finalized.
Confirm:
Truck bed height range
Vehicle width
Vehicle body height
Trailer length
Rear bumper configuration
Use actual supplier and distribution vehicle information whenever possible instead of only using a standard truck drawing.
Confirm:
Forklift model or weight
Maximum pallet weight
Wheel arrangement
Loading direction
Daily frequency
If production is expected to expand, equipment should not be designed only around the first year's throughput.
Important measurements include:
Dock platform height
Door opening width
Door opening height
Pit dimensions
Side clearance
Headroom
Structural conditions
Leveler pits, embedded steel, electrical conduits, and equipment clearances are easier to coordinate during construction than after the dock has already been completed.
Decide whether the application requires:
Mechanical dock shelter
Inflatable dock shelter
Dock seal
Standard sectional door
Enhanced insulation
Corrosion-resistant materials
Climate, moisture, indoor conditions, truck variation, and hygiene requirements should guide the decision.
Existing factories create a different challenge.
The building dimensions and pits are already fixed.
Check:
Existing opening size
Dock height
Pit condition
Bumper position
Steel structure
Available headroom
Truck stopping position
Existing electrical supply
One of the most useful pieces of information is often a photograph showing the actual trailer fully positioned against the existing loading bay.
This can reveal dimensional relationships that are difficult to understand from individual measurements alone.
Several mistakes appear repeatedly in industrial projects.
This ignores the forklift and repetitive dynamic loading.
Evaluate the complete operating load.
The result may fit one trailer but leave large gaps around another.
Collect minimum and maximum vehicle dimensions first.
Incorrect bumper projection can change the truck-to-dock distance.
Review the bumper, leveler lip, shelter, and vehicle as one interface.
Production passages and exterior docks have very different requirements.
Select door types according to traffic and environment.
Equipment that works well in a dry warehouse may require different surface protection in a damp or exposed environment.
Confirm cleaning, humidity, drainage, and weather conditions before selecting materials.

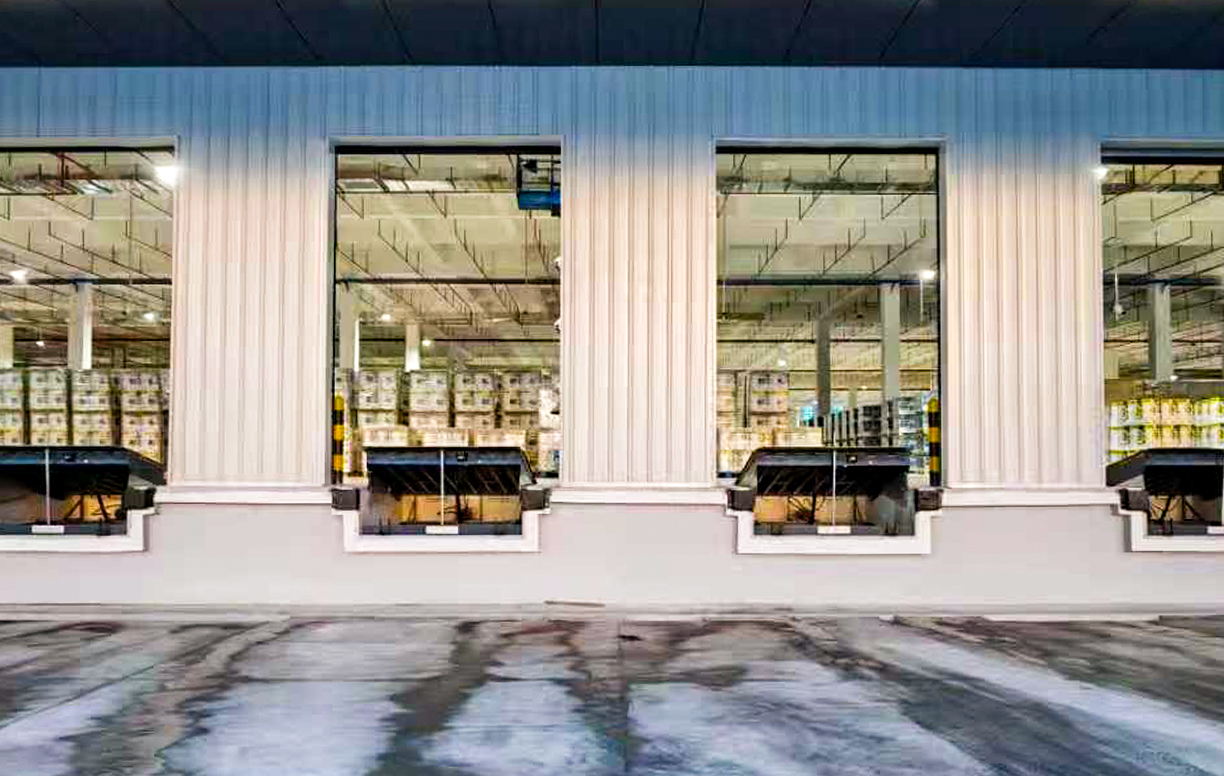

There is no universal beverage factory loading dock, but several configurations are common starting points.
A possible configuration includes:
Industrial sectional door
Hydraulic dock leveler
Mechanical dock shelter
Dock bumpers
Vehicle restraint
Traffic lights
Suitable where outbound trailers are relatively consistent and high pallet throughput is the main priority.
A possible inbound configuration includes:
Industrial sectional door
Telescopic dock leveler
Adaptable mechanical shelter
Dock bumpers
Vehicle restraint
Useful where incoming trucks vary in height or positioning.
A possible configuration includes:
Insulated industrial door
Suitable dock leveler
Inflatable dock shelter
Vehicle restraint
Integrated traffic and door controls
Suitable where reducing uncontrolled outside-air entry is more important than in a conventional ambient warehouse.
High-output factories should treat dock maintenance as part of production support rather than wait for equipment to fail.
Check:
Platform condition
Lip operation
Hinges
Hydraulic components
Safety devices
Controls
Structural fasteners
High-cycle loading positions may show wear earlier than lower-use bays.
Maintenance frequency should reflect actual usage.
Check:
Door panels
Tracks
Seals
Sensors
Motors
Shelter curtains
Inflatable cushions
Mounting hardware
A door or shelter may still operate while damaged sealing components reduce its environmental performance.
A good proposal begins with useful project information.
Before requesting equipment selection, prepare answers to the following questions:
What are the minimum and maximum truck bed heights?
What are the vehicle widths and body heights?
Are inbound and outbound trucks different?
What forklift is used?
How heavy is the maximum pallet?
How many trucks use each dock per day?
What is the dock height?
What are the door opening dimensions?
Is there an existing leveler pit?
Is the dock exposed to rain?
Are wet cleaning or high humidity expected?
Does the warehouse require temperature control?
These details allow the supplier to recommend equipment as a complete operating system instead of simply quoting products from a catalog.
Hydraulic dock levelers are suitable for many standard bottled water loading operations.
Consider a telescopic design when truck types vary or more precise lip positioning is required.
Not necessarily.
Stainless steel may be useful in selected wet, corrosive, or hygienically demanding environments, but coated or galvanized steel may be more appropriate in other areas.
Material selection should reflect actual site conditions.
Different areas normally require different doors.
High speed doors are useful for frequent internal forklift passages, while industrial sectional doors are commonly used at external loading bays.
Bottled water pallets can create demanding material-handling conditions, particularly when combined with forklift weight and repeated loading cycles.
Provide forklift weight, maximum cargo load, traffic frequency, and operating conditions rather than cargo weight alone.
Mechanical dock shelters work well for many general applications.
An inflatable shelter may be preferred where closer sealing or stronger environmental separation is required.
Yes.
Depending on the project, interlocking can coordinate doors, dock levelers, restraints, sensors, and traffic lights according to a defined operating sequence.
The loading dock in a bottled water or beverage factory should be viewed as part of the production and distribution process rather than simply the end of the warehouse.
Inbound docks must accommodate packaging materials, ingredients, pallets, and supplier vehicles. Outbound docks must support continuous movement of finished beverage pallets without creating congestion between production, warehouse staging, and transportation.
This creates several important design priorities.
Dock levelers must be selected according to the real forklift and pallet operating load. Doors should match the function of each opening rather than using one design throughout the factory. Dock shelters must fit the actual vehicle range. Bumpers, restraints, and controls should be coordinated with the complete loading bay geometry.
Moisture, cleaning conditions, corrosion exposure, traffic frequency, peak production periods, and hygiene requirements also deserve greater attention than they would in many general warehouse applications.
The most effective approach is therefore to examine the complete movement of goods:
Supplier truck → receiving dock → production → palletizing → finished goods warehouse → outbound dock → delivery truck.
When industrial doors and loading dock equipment are designed around this complete process, a bottled water or beverage factory can create a loading operation that better supports production flow, truck turnaround, equipment reliability, warehouse organization, and long-term logistics efficiency.
