Retail distribution centers operate at the connection point between suppliers, warehouses, stores, and increasingly, e-commerce fulfillment networks. Every day, large volumes of products arrive from manufacturers and suppliers, move through receiving and storage areas, and leave again for stores, regional warehouses, or individual fulfillment operations.
Because of this continuous movement, the loading dock is one of the most important operational areas in a retail distribution center.
A well-designed loading dock does more than provide a place for trucks to stop. It connects vehicles with warehouse operations and supports forklifts, pallet handling, environmental separation, traffic control, and worker safety.
Depending on the facility, a complete loading dock solution may combine dock levelers, industrial sectional doors, dock shelters, dock seals, dock bumpers, vehicle restraint systems, high speed doors, traffic lights, and integrated controls.
The correct configuration depends on truck types, dock height, throughput, product categories, temperature requirements, building layout, and the operating process of the distribution center.
This guide explains how different types of loading dock equipment can be selected and combined for modern retail distribution centers.
Retail logistics is highly time-sensitive.
Products must reach stores according to replenishment schedules, seasonal demand, promotional campaigns, and inventory requirements. When loading operations are delayed, those delays can affect transportation schedules and downstream store availability.
Unlike a warehouse dedicated to one product category, a retail distribution center may handle thousands of different SKUs.
Products can include packaged foods, beverages, household goods, consumer products, refrigerated goods, clothing, electronics, and other retail merchandise.
These products may arrive from different suppliers using different vehicle types.
Inbound docks receive merchandise from suppliers, while outbound docks prepare consolidated shipments for retail stores or other facilities.
In some distribution centers, the same dock positions may serve both functions at different times.
The loading dock therefore needs enough flexibility to handle changes in vehicle dimensions, loading direction, operating frequency, and product flow.
Retail distribution centers often experience concentrated periods of activity.
Truck arrivals may increase significantly before weekends, holidays, seasonal promotions, or major retail campaigns.
When too many trucks arrive and too few docks are available, vehicles may queue outside the building.
Inside the warehouse, forklifts and staging areas may also become congested.
Loading dock planning should therefore consider truck volume, average loading time, peak operating periods, pallet quantities, forklift availability, and future expansion.
A dock system that performs well during an average working day may become a bottleneck during high-volume periods.
Retail facilities should therefore evaluate peak shipment conditions when determining loading bay quantity, equipment configuration, and internal traffic routes.
Before selecting loading dock equipment, the facility should understand the vehicles that will use each loading bay.
Truck dimensions directly affect dock levelers, shelters, seals, bumpers, and dock height.
A large retail network may receive full-size trailers from suppliers while using smaller vehicles for regional store deliveries.
The same distribution center may therefore need to accommodate a relatively wide range of truck bed heights.
Important information should include minimum and maximum truck bed height, truck width, truck body height, trailer configuration, and rear door design.
The objective is not simply to design around the largest truck.
A loading bay should be compatible with the realistic range of vehicles expected during normal operation.
The dock leveler creates a bridge between the warehouse platform and truck bed.
Because truck bed heights vary and vehicle suspension moves during loading, the leveler must compensate for differences while supporting forklifts and transported loads.
Different dock leveler designs are suitable for different retail logistics applications.

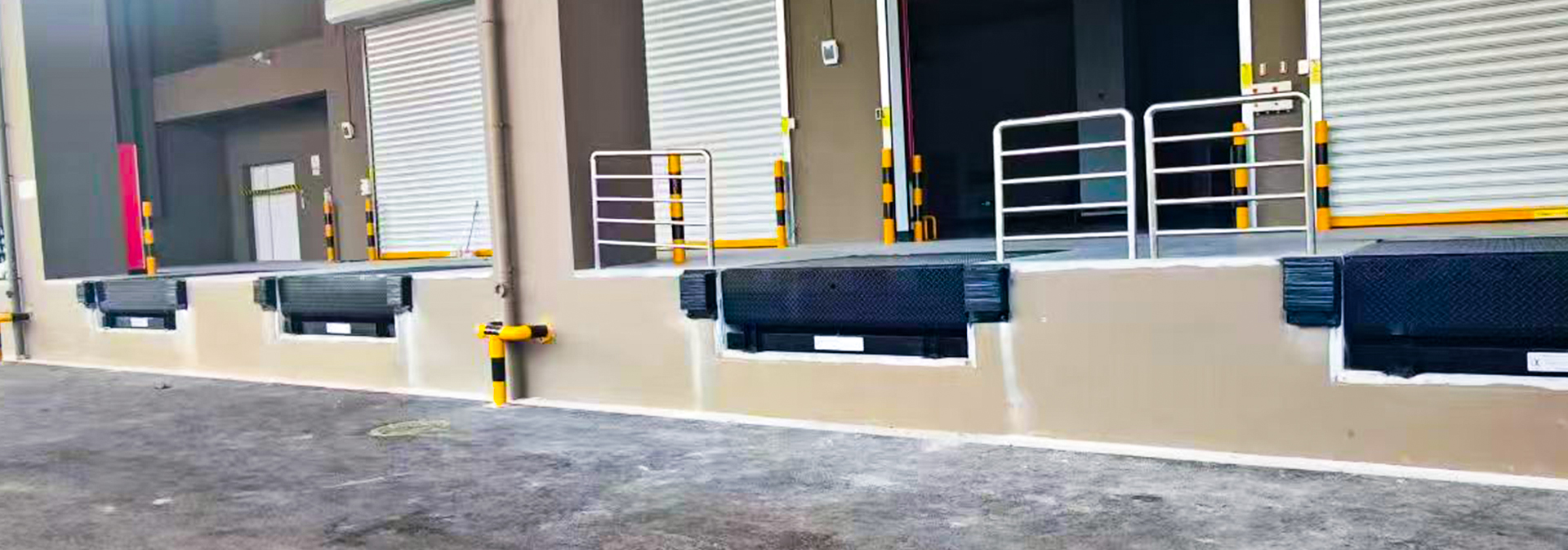

Hydraulic dock levelers are widely used in retail warehouses and distribution centers.
A hydraulic power system raises the platform while the lip connects with the truck bed to create a transition surface.
They are suitable for regular palletized loading and unloading where trucks operate within a predictable height range.
Hydraulic dock levelers can be used for general merchandise warehouses, supermarket distribution centers, consumer goods facilities, wholesale warehouses, and regional distribution centers.
They provide a practical solution where forklifts repeatedly move between trailers and warehouse floors throughout the day.
Telescopic dock levelers use an extendable lip that moves toward the truck after the main platform is raised.
This allows more precise control over how far the lip extends onto the truck bed.
Retail distribution centers receiving vehicles from many suppliers may experience greater variation in vehicle positioning.
A telescopic lip can provide additional flexibility where precise bridge placement is required.
It may also be useful when goods are positioned close to the rear of the trailer and available loading space needs to be used carefully.
Some retail distribution centers contain refrigerated, frozen, or other temperature-controlled storage areas.
For these environments, reducing unnecessary exposure between the warehouse and outside air can be important.

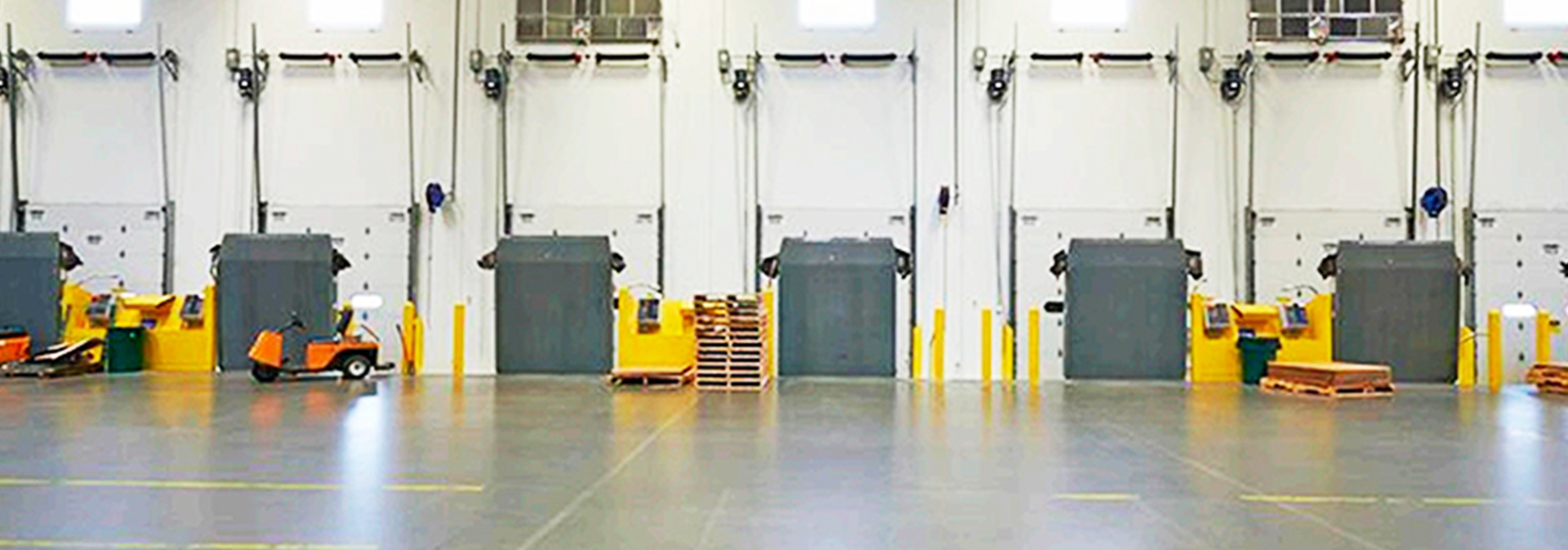

A vertical dock leveler is stored upright inside the building when it is not operating.
Because the leveler is stored vertically, the dock door can remain closed while the vehicle is approaching and being positioned.
The loading process can begin after the truck is correctly positioned and the dock area is ready.
This configuration is particularly relevant for grocery distribution centers, frozen food logistics, refrigerated warehouses, and other temperature-controlled operations.
Dock leveler capacity should not be selected according to pallet weight alone.
During loading, the platform supports both the material handling equipment and the goods being transported.
Selection should consider forklift weight, maximum cargo weight, wheel configuration, operating frequency, and loading conditions.
A loaded forklift can create significantly more demand on the platform than the cargo alone.
A dock used continuously throughout multiple shifts has different operating demands from a loading bay used only occasionally.
Capacity and equipment configuration should therefore reflect actual loading operations rather than only theoretical maximum weight.
Industrial sectional doors are commonly installed between warehouse interiors and loading bays.
Their vertical opening design allows the door to move upward without requiring a large operating area in front of the opening.
When closed, insulated door panels and perimeter seals help separate indoor warehouse conditions from the external environment.
This can be useful for both general merchandise warehouses and temperature-controlled facilities.
The dock door should not be designed independently.
Door opening dimensions, track arrangement, leveler position, shelter dimensions, available headroom, and building structure should be reviewed together before production.
This helps avoid installation conflicts between different dock components.
High speed doors can also support retail distribution center operations, particularly away from the external loading dock.
Internal warehouse areas often have frequent forklift movement between storage, sorting, packing, and staging zones.
Fast-opening doors can reduce waiting time at frequently used passages.
Typical locations include sorting areas, staging zones, internal logistics corridors, temperature-controlled sections, and packaging areas.
High speed doors can use activation methods such as radar sensors, loop detectors, remote controls, pull cords, or access control systems.
The correct method should be selected according to traffic direction and the surrounding layout.
Even after a truck reaches the dock, there are gaps between the trailer and building.
These gaps can allow rain, wind, dust, and outside air into the loading area.
Dock shelters and dock seals are designed to reduce these openings.
Mechanical dock shelters typically use flexible side curtains and a top curtain that contact the truck as it reverses into position.
Because the curtains can adapt to a range of vehicle dimensions, this design is suitable for many general retail distribution applications.
Before selecting the shelter, the project should review minimum and maximum truck width, vehicle height, dock platform height, and door opening dimensions.
Retail distribution centers receiving vehicles from different transport companies should pay particular attention to vehicle variation.
Inflatable dock shelters use inflatable side and top sections that expand around the vehicle after it reaches the dock.
The system can provide closer contact around the truck body.
Inflatable shelters can be considered for grocery distribution, refrigerated logistics, food warehouses, pharmaceutical distribution, and other facilities where reducing air exchange is particularly important.
The minimum and maximum vehicle heights should be carefully evaluated to make sure the inflatable structure can accommodate the expected truck range.
Dock seals use compressible pads around the dock opening.
The vehicle contacts the pads as it reaches the final loading position.
Dock seals can provide effective sealing when truck dimensions are relatively consistent.
Where a retail distribution center receives a much wider range of trucks, a more adaptable shelter configuration may be more practical.
Vehicles approach retail loading docks repeatedly throughout the working day.
Without suitable protection, repeated contact can damage the dock face, concrete structure, and surrounding equipment.
Dock bumpers provide a contact area between the truck and loading dock structure.
Their position should be coordinated with vehicle height, dock leveler position, shelter design, and loading platform.
Incorrect bumper dimensions or positioning can affect how close the truck can reach the dock.
For this reason, bumpers should be considered during overall loading bay design rather than selected only after the other equipment has been installed.
One of the risks at a loading dock is unexpected vehicle movement while forklifts are entering or leaving the trailer.
Vehicle restraint systems can help secure the truck during loading operations.
Depending on the loading bay design, the restraint system may operate together with dock doors, levelers, warning lights, and other controls.
External and internal traffic signals can help communicate loading status.
For example, the system can indicate when the vehicle should remain stationary and when it is safe to leave after loading has been completed.
The exact sequence should be designed according to the site's operating procedures and applicable safety requirements.
A modern retail distribution center may benefit from coordinating several pieces of loading dock equipment instead of operating each component independently.
One possible configuration prevents the dock leveler from operating until the dock door has reached the required position.
This can help reduce incorrect operating sequences.
Depending on project requirements, integrated controls can connect the sectional door, dock leveler, vehicle restraint, traffic lights, sensors, and warning devices.
The final control logic should reflect the actual operating process of the distribution center.
Grocery retail logistics creates additional challenges because facilities may handle ambient, chilled, and frozen products within the same distribution network.
A single distribution center may contain conventional storage areas, refrigerated rooms, and freezer zones.
The loading dock configuration should reflect the environmental requirements of each area.
A cold-chain loading bay may combine an insulated industrial door, vertical dock leveler, inflatable dock shelter, vehicle restraint system, and integrated controls.
The objective is to reduce unnecessary exposure while maintaining an efficient loading process.
Some retail distribution centers use cross-docking to reduce storage time.
Incoming products are transferred from receiving areas toward outbound staging areas with limited long-term storage.
Because products remain in the facility for less time, loading dock performance becomes especially important.
Delays at either inbound or outbound docks can disrupt the entire process.
Suitable leveler capacity, efficient door operation, organized forklift routes, and clear truck positioning can help support continuous movement through the facility.
Modern retail distribution increasingly combines store replenishment with e-commerce and direct customer fulfillment.
This creates different outbound shipment patterns within the same facility.
Store replenishment may involve palletized or cage-based shipments transported by larger trucks.
E-commerce operations may involve smaller shipment units and different transport schedules.
Retail distribution centers should consider whether dock areas may need to serve different transport types over the life of the building.
Equipment flexibility can reduce the need for major modifications as logistics strategies change.
Retail logistics is strongly affected by seasonal demand.
Holiday periods, promotional events, and product launches can create large short-term increases in inbound and outbound traffic.
More vehicles mean more dock cycles, more forklift traffic, more staging demand, and greater pressure on equipment availability.
Preventive maintenance should be scheduled before known high-volume periods whenever possible.
Checking doors, levelers, sensors, shelters, restraints, and controls before peak season can help reduce unexpected disruptions.
Large retail distribution centers may have many loading bays along the building exterior.
When dock doors remain open unnecessarily, outside air can enter the warehouse.
Several parts of the dock system can contribute to environmental separation.
Insulated doors, dock shelters, dock seals, faster internal doors, and vertical levelers can all play a role depending on the application.
Energy performance should not be evaluated based on one piece of equipment alone.
Door opening duration, dock sealing, building insulation, warehouse temperature, climate, traffic frequency, and HVAC operation all influence the overall result.
Loading docks combine trucks, forklifts, pedestrians, elevated platforms, and moving equipment.
Safety should therefore be part of the initial dock design.
Truck approaches, forklift routes, pedestrian paths, and staging areas should be clearly defined.
Good visibility around loading bays is particularly important.
Equipment such as restraints, warning lights, barriers, sensors, and interlocked controls can support safer operations.
However, equipment should work together with site procedures, operator training, inspection, and applicable local safety requirements.
Equipment selection should start with project information rather than with a product catalog.
A supplier can make a more accurate recommendation when the complete operating environment is understood.
Important building information includes dock platform height, loading door dimensions, pit dimensions, available installation space, structural conditions, and electrical supply.
For new distribution centers, equipment dimensions can be coordinated with civil construction from the beginning.
For renovation projects, existing pits, structural limitations, and available clearances should be carefully checked before equipment is finalized.
Vehicle dimensions are equally important.
The project should establish the actual range of truck heights, truck bed levels, widths, and body configurations.
Where a facility handles multiple vehicle types, telescopic levelers or adaptable dock shelter configurations may provide greater flexibility than systems designed around a single truck profile.
The project team should also consider operating frequency, maximum forklift load, product categories, temperature conditions, loading schedules, and peak demand.
For one project, the main goal may be high throughput.
For another, it may be temperature control, vehicle flexibility, sealing, safety, or reducing long-term maintenance.
Clearly defining the priority makes equipment selection more effective.
Different retail distribution applications require different equipment combinations.
A typical loading bay may combine an industrial sectional door, hydraulic dock leveler, mechanical dock shelter, dock bumpers, vehicle restraint system, and traffic lights.
This configuration is suitable for many general retail warehouses where vehicles fall within a predictable operating range.
A facility receiving a wider range of supplier vehicles may use a sectional door, telescopic dock leveler, adaptable dock shelter, dock bumpers, vehicle restraint, and integrated controls.
The telescopic lip and adaptable shelter configuration provide more flexibility when vehicle positioning and dimensions vary.
A refrigerated or frozen retail warehouse may use an insulated door, vertical dock leveler, inflatable dock shelter, vehicle restraint system, and coordinated controls.
This configuration helps reduce unnecessary exposure between controlled indoor environments and outside conditions during the loading process.
Retail distribution centers often depend on continuous dock availability.
Preventive maintenance is therefore important for reducing unexpected downtime.
Regular inspection should cover the platform, lip mechanism, hinges, hydraulic components, safety devices, fasteners, and controls.
Equipment used continuously across multiple shifts normally requires more frequent inspection than equipment used only a few times per day.
Manufacturer maintenance instructions should always be followed.
Dock doors, high speed doors, and shelters should also be inspected regularly.
Important areas include tracks, panels, curtains, sensors, seals, motors, controls, shelter fabrics, and inflatable components.
Minor damage to seals, curtains, guides, or sensors can affect performance if left unattended.
Regular inspection can help identify problems before they result in equipment downtime.
Many loading dock problems result from incomplete project information rather than from the equipment itself.
Retail distribution centers often receive vehicles from many suppliers and carriers.
Minimum and maximum vehicle dimensions should be considered during design.
Cargo weight does not represent the entire load acting on the dock leveler.
The actual loading system should be evaluated as a whole.
Doors, levelers, shelters, bumpers, and restraints all share the same loading bay.
Integrated planning helps reduce dimensional conflicts and simplifies installation.
Retail logistics strategies can change as new stores, carriers, product categories, or fulfillment models are added.
A loading dock designed with reasonable flexibility can adapt more easily to changing operating requirements.
There is no single best type for every facility.
Hydraulic dock levelers are suitable for many standard loading bays. Telescopic dock levelers provide additional positioning flexibility, while vertical dock levelers are particularly useful in selected temperature-controlled applications.
Important information includes dock height, truck bed height range, pit dimensions, forklift weight, maximum cargo load, loading frequency, and required platform dimensions.
The leveler must operate within a suitable vertical range between the fixed warehouse platform and different vehicle beds.
Mechanical dock shelters are commonly used where a range of truck sizes must be accommodated.
Inflatable dock shelters may be more suitable where closer sealing and environmental control are higher priorities.
Yes, depending on the control configuration.
A coordinated control sequence can prevent certain equipment from operating until the required conditions are met, helping organize the loading process.
A cold-chain loading bay may combine an insulated dock door, vertical dock leveler, inflatable shelter, restraint system, and integrated controls.
Thermal performance depends on more than one product. The door, shelter, dock equipment, building insulation, and operating sequence all contribute to environmental separation.
Ideally, loading dock planning should begin during the building design stage.
Dock pits, platform heights, door openings, electrical requirements, structural support, and equipment clearances can all be confirmed before construction is completed.
Retail distribution centers depend on loading docks to keep products moving between suppliers, warehouses, stores, and fulfillment networks.
The correct loading dock solution should therefore be based on actual logistics requirements rather than selecting individual products separately.
Hydraulic dock levelers provide a reliable solution for many standard retail loading bays. Telescopic dock levelers offer greater flexibility when truck dimensions and positions vary, while vertical dock levelers can support temperature-controlled operations.
Industrial sectional doors, high speed doors, mechanical and inflatable dock shelters, dock seals, dock bumpers, vehicle restraint systems, traffic lights, and integrated controls can then be combined according to the needs of each loading area.
For the best result, the entire loading dock should be planned as one coordinated system.
By considering vehicle dimensions, warehouse throughput, forklift loads, product categories, temperature requirements, peak-season demand, safety procedures, and future expansion from the beginning, retail distribution centers can create loading areas that support efficient, reliable, and adaptable logistics operations.
