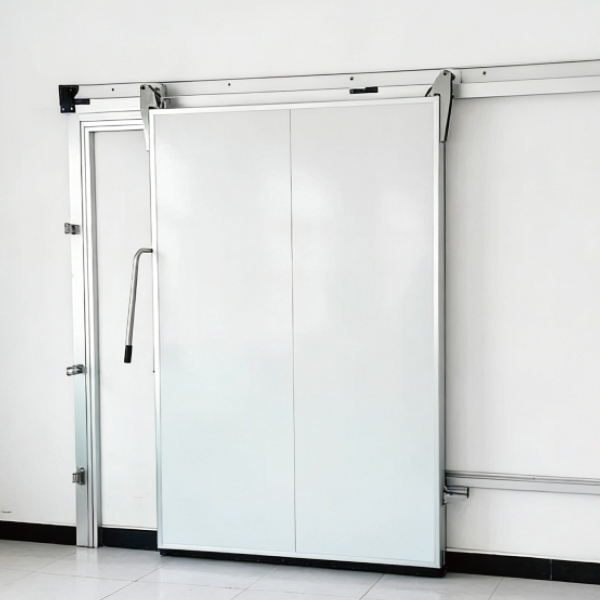

Manual Sliding Door

Product Introduction

The Manual Sliding Cold Room Door provides insulated access for chiller rooms, freezer rooms and food cold storage. It slides horizontally to save swing space and is available in single-leaf, double-leaf and stainless steel configurations. Manual operation keeps the system simple while allowing customized insulation, sealing and hardware.

Why Choose

Space-Saving Operation

The door moves parallel to the cold-room wall, leaving the area in front of the opening clear. This layout suits narrow aisles, trolley routes and locations where a hinged door would obstruct traffic.

Simple Manual Mechanism

Manual operation requires no motor, controller or sensor system. The track, rollers and handle provide straightforward operation with fewer electrical components to install and maintain.

Reliable Insulated Sealing

A PU-foamed panel, EPDM gasket and compression hardware help reduce air leakage when the door closes. Insulation and heating options are selected for the required room temperature.

Three Practical Configurations

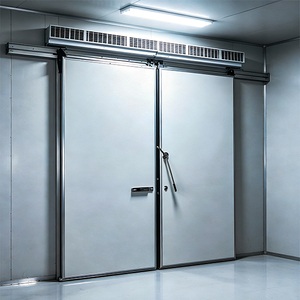

Single-leaf doors suit standard openings, double-leaf doors support wider cargo access, and stainless steel versions serve projects requiring hygienic cleaning or corrosion resistance.

Key Features

PU-Insulated Door Panel

The integrally foamed polyurethane panel provides thermal separation. Supplier-listed thickness options are 75, 100, 120 and 150 mm, subject to final project selection.

Aluminum Track and Frame

The supplier design uses an aluminum frame and guide rail. Guide and pressing wheels support smooth travel and press the door toward the gasket in the closed position.

EPDM Door Gasket

The flexible EPDM seal follows the door perimeter to support consistent contact with the frame. Gasket design and any heating requirement depend on the operating temperature.

Multiple Surface Materials

Available surface directions include color steel, stainless steel and embossed aluminum. Material selection should reflect cleaning, corrosion exposure, appearance and budget.

Product Advantages

Lower Maintenance

Without motors or electronic controls, routine maintenance focuses on the track, rollers, handle, lock and gasket. This simplifies servicing for moderate-traffic cold rooms.

Flexible Opening Design

Door size, opening direction and leaf arrangement can be matched to personnel, trolley, pallet or forklift access and the available side clearance.

Temperature-Ready Configuration

Panel thickness, gasket, frame details and optional heating can be configured for chiller or freezer service after the target temperature and frost conditions are confirmed.

Hygienic Material Option

A stainless steel surface is available for food-processing and wash-down environments. Stainless grade and cleaning chemicals must be confirmed before production.

Applications

Chiller Rooms

Suitable for chilled-food, beverage, dairy and fresh-storage rooms where insulated manual access and regular personnel or trolley movement are required.

Freezer Rooms

Suitable after confirming panel thickness, gasket, frame heating and frost protection for the target low-temperature conditions.

Food Processing Areas

Separates temperature-controlled processing or storage zones while offering material options that support cleaning and hygiene requirements.

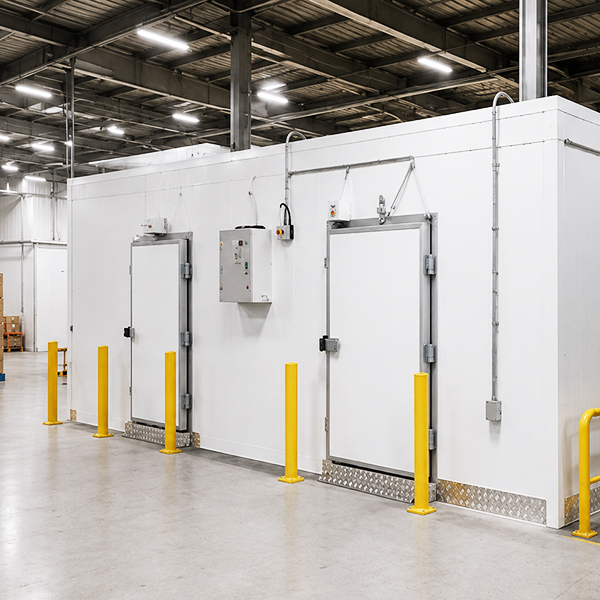

Cold Storage Warehouses

Single or double leaves can be selected around cargo size, traffic route and available wall space for manual sliding operation.

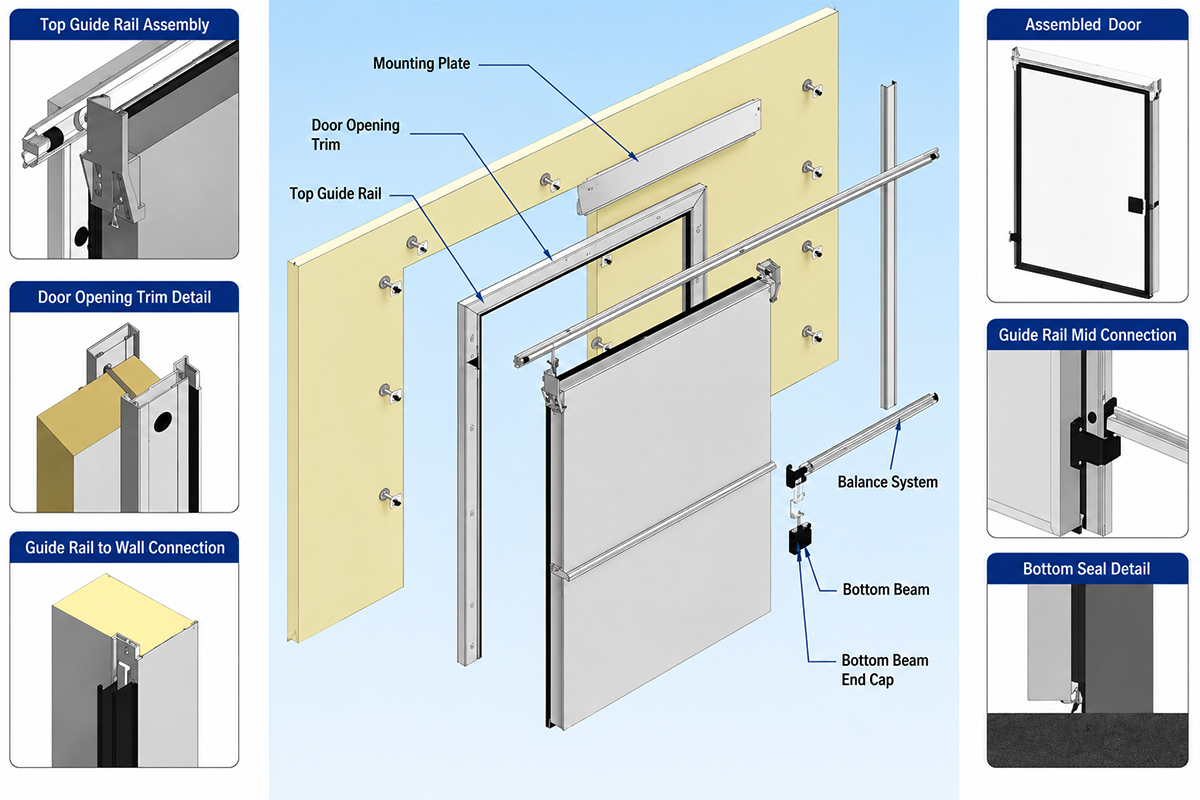

Main Components

Insulated Door Panel

PU-foamed panel with the selected thickness and surface material.

Door Frame

Project-matched frame supporting sealing, alignment and optional heating.

Track and Roller System

Guide rail, rollers and pressing hardware controlling movement and closure.

EPDM Gasket

Flexible perimeter seal helping limit cold-air leakage.

Handle and Safety Release

Manual handle, lock and inside release selected for safe access.

Customization Options

Door Configuration

Single-leaf, double-leaf or stainless steel manual sliding version.

Opening Size

Customized clear width and height after checking side clearance.

Panel Thickness

75, 100, 120 or 150 mm supplier-listed options; final selection required.

Surface Material

Color steel, stainless steel or embossed aluminum.

Opening Direction

Left, right or center-opening layout according to site conditions.

Accessories

Lock, inside release, bumper, viewing window and heating options as required.

Quick Specifications

Why Choose EVERBESTEN

Factory Manufacturing

Door panels and hardware are prepared to the approved project specification and opening dimensions.

Project Customization

Configuration, thickness, surface, direction and accessories are matched to the cold-room application.

Quality Control

Panel finish, dimensions, track movement, sealing and hardware are checked before shipment.

Delivery Coordination

Packing and shipment are arranged according to door size, destination and project schedule.

Technical Support

Drawings and installation guidance can be prepared for the confirmed door configuration.

FAQ

Which configuration should I choose?

Use single-leaf for standard openings, double-leaf for wider cargo access, and stainless steel where hygiene or corrosion resistance is important.

What panel thicknesses are available?

The supplier lists 75, 100, 120 and 150 mm. Final thickness depends on temperature, opening size and insulation design.

Can the size and direction be customized?

Yes. Provide the clear opening, wall-panel thickness, side clearance and preferred opening direction.

Does a manual sliding door require power?

Manual movement requires no power. Heating, windows or other powered accessories may need electricity.

Can it be used in a freezer room?

Yes, after confirming insulation, gasket, heating, frost conditions and hardware for the target temperature.

What information is needed for a quotation?

Provide opening size, room temperature, wall thickness, leaf type, surface material, traffic type, direction and destination country.
