Spiral high speed doors and industrial sectional doors are both used at warehouses, factories, logistics centers, and other industrial buildings. Because both open vertically and can use insulated rigid panels, buyers often compare them during the early stages of a project.
However, the two doors are designed around different operating priorities.
A spiral high speed door is primarily selected when an opening needs rapid operation, repeated vehicle access, rigid insulated panels, and stronger performance at a busy industrial entrance.
A sectional door is usually selected where the main priorities are insulated closure, practical vertical opening, loading dock compatibility, and regular rather than extremely frequent vehicle access.
Neither door is universally better. The correct choice depends on how often the opening operates, where the door is installed, how important opening speed is, what environmental conditions the entrance faces, and how the door needs to interact with the building or loading dock.
The easiest way to understand the difference is to look at what each door is designed to accomplish.
Both can provide a rigid closed barrier, but their operating systems are very different.

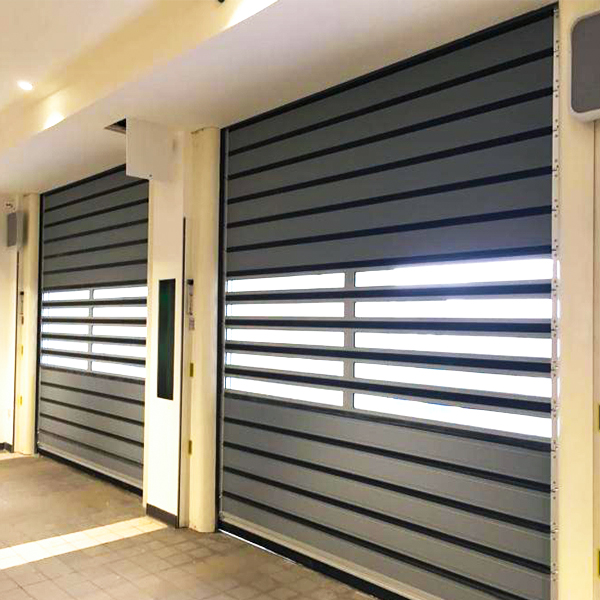

A spiral high speed door uses rigid insulated slats or panels that travel vertically through a specialized guide system.
Instead of moving slowly into a conventional overhead track arrangement, the door is designed around rapid opening and controlled acceleration and deceleration.
This makes it particularly useful where forklifts, vehicles, or other equipment pass through the same entrance repeatedly.
At a heavily used industrial entrance, door cycle time can directly influence traffic flow.
If forklifts repeatedly need to stop and wait before entering, delays accumulate throughout the working shift.
A spiral high speed door reduces this waiting by opening rapidly and returning to the closed position after traffic has cleared.
Its value therefore becomes greater as the frequency of vehicle movement increases.
A sectional door consists of horizontal insulated panels connected by hinges.
The panels move vertically and then follow a track arrangement inside the building. Depending on the available space, the door can use standard lift, high lift, or vertical lift tracks.
Its main strengths are rigid construction, insulation, efficient use of floor space, and practical integration with warehouse and loading dock openings.
A sectional door does not need to compete with a spiral door on maximum opening speed to be the correct solution. For many industrial openings, rapid repeated cycling is simply not the main requirement.
Traffic frequency is often the most important factor separating the two products.
An entrance opened several times during a working hour has very different operating requirements from a doorway crossed repeatedly by forklifts throughout the day.
When traffic is frequent, every door cycle affects the vehicle route.
A spiral high speed door is designed to reduce the time between the activation signal and a clear passage.
This is particularly valuable at logistics centers, distribution facilities, manufacturing entrances, and other industrial routes where vehicles repeatedly move between indoor and outdoor areas.
Maximum door speed alone does not determine how quickly traffic passes.
The activation sensor must detect the approaching vehicle early enough for the door to reach the required clear height before the vehicle arrives.
If detection occurs too late, even a fast door may force the forklift to stop. If detection occurs too early, the entrance may remain open unnecessarily.
Door speed, detection distance, vehicle speed, and closing delay should therefore be commissioned together.
A sectional door is often more practical where the entrance opens for scheduled truck movements, occasional forklift access, maintenance vehicles, or loading operations that do not require continuous door cycling.
In these applications, the difference in opening speed may have little effect on total warehouse productivity.
Using a high speed spiral door simply because it is faster may add unnecessary cost if the opening is only used periodically.
Both products can provide thermal separation, but insulation should not be compared only by product name.
Panel construction, thickness, joints, perimeter seals, floor condition, opening frequency, and total open time all influence real performance.
Industrial sectional doors commonly use insulated sandwich panels.
When the door is closed for extended periods, these panels help reduce heat transfer through the large building opening.
This can be useful for warehouses, factories, loading bays, and other facilities where maintaining a more stable indoor environment is important.
A thick insulated panel cannot compensate for large gaps around the sides or floor.
Side seals, header seals, bottom rubber, track alignment, and the finished threshold all influence air leakage.
For this reason, buyers should evaluate the complete closed-door construction rather than comparing only panel thickness.
A spiral high speed door can also use insulated rigid panels.
Its additional advantage in a busy entrance is that it can reduce the amount of time the doorway remains completely open.
This creates an important distinction:
A sectional door can provide strong thermal performance while closed, while a spiral high speed door can combine insulated closure with shorter exposure time during frequent traffic.
For an opening used only occasionally, the speed advantage may contribute relatively little. For an opening cycling repeatedly, the difference becomes more relevant.
Both doors can be installed at exterior openings, but site conditions should determine the final configuration.
Opening dimensions, wind exposure, building orientation, structural support, guide design, and expected traffic all need to be considered.
Unlike flexible fabric high speed doors, spiral doors use rigid slats or panels.
This makes them useful where a facility needs faster access but does not want a lightweight flexible curtain at the main exterior entrance.
It is too simplistic to say that one product category is always “windproof.”
Wind resistance depends on the door dimensions, panel construction, guide system, reinforcement, fixings, building structure, and project design.
For large or exposed openings, the supplier should review the expected wind conditions before confirming the final configuration.
A correctly designed sectional door can provide reliable performance at warehouse and factory exterior entrances.
Where the opening has moderate traffic and the main requirements are insulation, rigid closure, weather separation, and practical cost, a sectional door may be the more reasonable choice.
Additional reinforcement can also be considered where project conditions require it.
This is one area where the application difference becomes particularly clear.

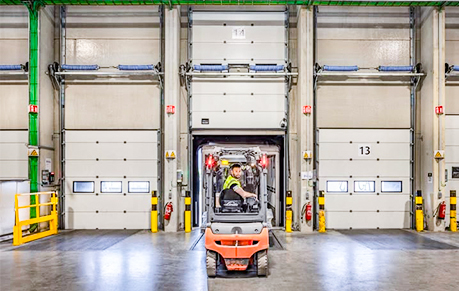

At a loading dock, the industrial door is only one part of the complete loading system.
The opening may also include a dock leveler, dock bumpers, mechanical dock shelter, inflatable dock shelter, foam dock seal, vehicle restraint, and traffic-light system.
Sectional doors are commonly used at truck loading positions because the door can remain closed when no trailer is being serviced and open vertically when loading begins.
The track system can be arranged around the dock opening while leaving the floor available for forklift traffic.
Door dimensions should be checked together with the dock leveler and trailer position.
The open door must provide sufficient clearance, while the bottom section and tracks should not interfere with dock leveler operation.
Dock bumper projection also affects how close the trailer stops to the warehouse. This influences dock leveler lip overlap and the way the dock shelter or seal contacts the vehicle.
For this reason, the door, leveler, bumpers, and shelter should be planned as one loading position rather than purchased independently.
A spiral high speed door can be used at industrial exterior entrances where fast traffic is important, but maximum speed is not necessarily required at every truck bay.
At many conventional loading docks, the door opens after the trailer is positioned and remains open during the loading process.
In this situation, a sectional door may provide the required performance without the added cost of a high speed system.
The decision should follow the actual loading sequence.
Installation space can influence the decision even before traffic and insulation are considered.
The two doors use different guide and storage arrangements, so headroom and surrounding structure should be checked carefully.
Sectional door panels travel through tracks inside the building.
Depending on the available headroom, the system may use standard lift, high lift, or vertical lift.
This makes sectional doors adaptable to many building structures.
Beams, pipes, crane rails, cable trays, lights, sprinklers, and ventilation systems can all interfere with an overhead track system.
The supplier should therefore receive more than the opening width and height.
Headroom, side room, internal clearance, and photographs of the area above the opening are important for selecting the correct track arrangement.
Spiral doors also require suitable headroom, side space, and structural support.
Because the rigid door system and drive components are more specialized, installation conditions should be confirmed before the door is manufactured.
A lightweight sandwich-panel wall may not provide sufficient support by itself. Additional structural steel may be required to transfer door loads to the main building frame.
The correct maintenance comparison should focus on the actual door system and operating environment rather than assuming that one design is always cheaper to maintain.
Traffic frequency, impact, alignment, installation quality, weather exposure, and maintenance practices all influence service requirements.
A spiral door uses a high speed drive, rigid panels, specialized guides, sensors, and a control system designed for rapid movement.
Regular inspection should focus on guide alignment, panel condition, sensors, drive components, fasteners, seals, and changes in operating behavior.
Unusual noise, vibration, slower movement, or inconsistent stopping positions should be investigated before they develop into longer downtime.
A sectional door uses hinges, rollers, tracks, cables, springs, shafts, panels, and seals.
The counterbalance system is particularly important because it manages the weight of the door during operation.
These components can store significant mechanical energy and should not be adjusted casually by warehouse employees.
Visible cable wear, unusual balance, track misalignment, or spring problems should be handled by trained technicians.
Both door systems therefore require planned maintenance; the difference is primarily in the components being maintained rather than one door being maintenance-free.
Sectional doors are generally selected when buyers want a practical balance of insulated rigid construction, building compatibility, and investment level.
A spiral high speed door normally requires a higher investment because the high speed rigid door structure and control system are more specialized.
However, purchase price alone does not determine which door is more economical.
Consider an entrance where a forklift passes repeatedly throughout the working day.
Reducing the waiting time at every cycle may improve traffic flow enough to justify the higher investment in a spiral high speed door.
At another opening that only operates occasionally, the same speed advantage may provide little measurable operational benefit.
The value of the high speed system therefore depends heavily on where it is installed.
Industrial door specifications sometimes become unnecessarily expensive because buyers select the highest available speed, strongest configuration, or most advanced control system for every opening.
A better approach is to define what each entrance actually needs to accomplish and then select the appropriate performance level.
A spiral high speed door is generally worth considering when rapid access is a core operational requirement rather than simply a preferred feature.
It can be a strong candidate for busy exterior forklift entrances, logistics facilities, production buildings with repeated vehicle traffic, and entrances requiring the combination of rigid panels and fast movement.
A spiral high speed door becomes more relevant when several of the following conditions are present:
Repeated forklift or vehicle traffic
Short opening time is operationally important
The entrance is part of a busy logistics route
A rigid insulated door is preferred over a flexible curtain
Exterior exposure requires a more substantial door structure
Traffic delays at the opening affect workflow
Automatic sensors and high speed controls are required
Before paying for a high speed system, observe how the opening is actually used.
Count vehicle movements during the busiest working periods and identify whether operators currently wait at the entrance.
This provides a much stronger basis for selection than choosing a spiral door simply because the facility is described as a logistics center.
A sectional door is often the more practical solution where the entrance needs rigid insulated closure but does not require extremely fast repeated operation.
It remains particularly suitable for loading bays, warehouse exterior openings, factory access points, and other locations with regular but more moderate traffic.
A sectional door is worth considering when:
The door operates periodically rather than continuously
Insulated rigid panels are important
The opening is part of a standard loading dock
Vertical opening and efficient floor-space use are required
Standard, high lift, or vertical lift tracks suit the building
Project cost needs to remain controlled
Maximum high speed operation would add limited operational value
If a truck backs into a loading bay, remains parked while loading takes place, and the door stays open during that loading period, extremely fast door movement may not provide much benefit.
In this type of operating sequence, a sectional door can provide a more balanced solution.
Yes. In many industrial buildings, the most effective design is not choosing one door type for every opening.
Different entrances perform different jobs.
A logistics facility might use spiral high speed doors at busy vehicle entrances where reducing waiting is important, while sectional doors are installed at truck loading bays where insulation and dock equipment coordination matter more than maximum opening speed.
Using different door systems is not necessarily a disadvantage.
It can prevent the facility from paying for high speed performance at openings that do not need it while still providing faster access at the locations where door cycle time actually affects operations.
This application-based approach is usually more useful than trying to standardize every industrial entrance around one product.
The first common mistake is comparing only opening speed. Faster movement is valuable only when traffic frequency makes it operationally relevant.
The second is comparing only panel thickness. Thermal performance also depends on seals, joints, floor condition, installation quality, and how long the opening remains exposed.
Another mistake is assuming that a spiral high speed door should replace every sectional door because it is a higher-performance product. Standard loading docks and moderate-traffic warehouse entrances may gain very little from the additional speed.
The opposite mistake also occurs: using a sectional door on a heavily travelled vehicle route and then trying to solve the resulting waiting time through sensor changes or operating procedures.
The door type should be correct before optional features are added.
A supplier can make a much more accurate recommendation when the project includes information about both the building and the traffic.
Useful information includes:
Clear opening width and height
Indoor or outdoor installation
Available side room and headroom
Wall and supporting structure
Maximum vehicle and load dimensions
Traffic frequency during peak periods
Required opening speed
Indoor and outdoor temperature conditions
Expected wind exposure
Required insulation level
Loading dock equipment around the opening
Preferred activation method
Available electrical supply
Interior and exterior site photographs
For loading bays, dock height, dock leveler size, bumper projection, trailer dimensions, and shelter or seal configuration should also be considered.
The decision becomes much easier when the opening is evaluated according to its main operational requirement.
Choose a spiral high speed door when repeated vehicle movement makes short door cycles important and the project also requires a rigid insulated structure.
Choose a sectional door when the priority is a practical insulated closure for regular industrial access or loading dock operation and extremely fast opening would provide limited additional value.
Do not choose either product simply because it appears more advanced or more economical on the quotation.
The best door is the one whose operating characteristics match the actual traffic, environment, building structure, and daily workflow of that particular entrance.
Spiral high speed doors and sectional doors solve different industrial access problems.
Spiral high speed doors combine rigid insulated construction with fast operation, making them particularly useful at busy vehicle entrances where repeated waiting can affect workflow. Sectional doors provide insulated rigid closure, flexible track arrangements, and practical integration with loading docks and regular industrial entrances.
For many industrial buildings, there is no reason to choose one system for every doorway. Evaluating each opening according to traffic frequency, insulation requirements, exterior exposure, loading dock configuration, installation space, and long-term operating needs leads to a more practical decision and avoids paying for performance that the application does not require.
