Dock shelters and dock seals perform the same basic task: reducing the open gaps between a truck or trailer and the warehouse during loading and unloading.
However, they achieve this in very different ways.
A Mechanical Dock Shelter uses flexible side and top curtains that contact the exterior of the trailer while leaving most of the rear opening available for loading.
A Foam Dock Seal uses compressible foam pads that press directly against the rear of the trailer to create a closer-fitting seal.
An Inflatable Dock Shelter uses inflatable side and top sections that extend toward the trailer after it is parked, providing another option where stronger sealing and greater vehicle flexibility are required.
The right system therefore depends on much more than asking which product “seals better.”
Trailer width and height variation, warehouse door dimensions, forklift clearance, dock bumper projection, truck stopping position, environmental requirements, and loading frequency all influence the final choice.
For this article, Dock Shelter refers to Mechanical Dock Shelter unless Inflatable Dock Shelter is specifically mentioned.
The most important difference is how the product interacts with the trailer.
A dock shelter mainly surrounds and overlaps the trailer body.
A dock seal mainly compresses against the trailer body.
That difference changes trailer compatibility, available loading clearance, wear patterns, and sealing performance.
What Is a Dock Shelter?

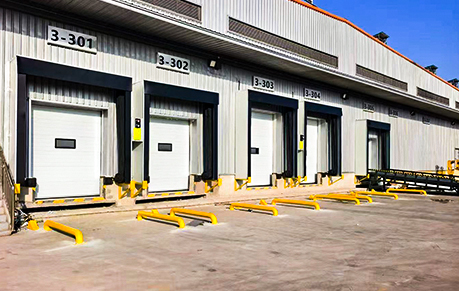

A mechanical dock shelter is installed around the loading dock opening and normally includes two side curtains and a top curtain supported by a projecting frame.
When the trailer reverses toward the building, it passes between the side curtains.
The curtains flex against the trailer sides while the upper curtain overlaps the top portion of the trailer.
Because the sealing effect does not depend on compressing thick foam pads to one exact trailer size, a mechanical shelter can accommodate a reasonable range of trailer widths and heights.
This is one of the main reasons it is commonly selected for logistics warehouses and distribution facilities receiving trucks from multiple carriers.
However, “flexible” does not mean unlimited.
If the smallest trailer barely touches the curtains or the largest trailer pushes too deeply into the shelter structure, the system is outside its intended vehicle range.
Trailer dimensions still need to be confirmed before the shelter is sized.
A foam dock seal normally uses two vertical side pads and a top pad or header section.
When the trailer backs toward the dock, its rear surface compresses the foam.
This compression closes the space between the trailer and building.
A foam dock seal needs sufficient trailer contact to create the intended sealing effect.
Too little compression can leave gaps.
Too much compression can increase stress on the foam pads, fabric covers, mounting structure, and trailer.
This is why dock seals are usually easier to specify when the regular trailer fleet has relatively consistent dimensions.
Before choosing either system, first establish the range of vehicles that will actually use the loading bay.
This is one of the most important steps in dock sealing selection.
Trailer width determines where the side curtains or foam pads will contact the vehicle.
Do not rely on one “standard truck width” if the warehouse works with several logistics providers.
Instead, collect representative dimensions from the actual fleet.
If the trailer is too narrow relative to the shelter opening, the side curtains may not overlap the vehicle enough to provide useful coverage.
If the trailer is too wide, it may create excessive curtain deflection or contact with the shelter frame.
The shelter opening therefore needs to fit the usable trailer-width range, not simply the warehouse door width.
With a dock seal, the side pads occupy part of the rear loading area.
The remaining clear space needs to accommodate the trailer rear opening, forklift, pallet, and normal loading movement.
This becomes particularly important where the warehouse door is already relatively narrow.
Trailer height determines how the top curtain, top foam pad, or inflatable head section contacts the vehicle.
If the fleet includes both lower and taller trailers, the top sealing system needs enough adjustment range or coverage.
A fixed foam header may work very well with a consistent trailer height.
The same configuration may perform poorly if trailer heights vary significantly.
A mechanical shelter with suitable top-curtain coverage offers more flexibility, while an inflatable top section can be considered where a closer seal is required across a wider vehicle range.
Two trailers with similar overall dimensions may still have very different rear structures.
Door hinges, locking bars, steps, refrigeration equipment, rear frames, lights, bumpers, and other protrusions can influence how the shelter or seal contacts the vehicle.
For unusual trucks, dimension sheets alone may not show all possible contact points.
Rear and side photographs help identify components that could interfere with foam compression or curtain contact.
This is particularly useful when evaluating refrigerated trailers, containers, and mixed third-party fleets.
The warehouse door opening and the trailer rear opening are related, but they are not the same measurement.
Both need to be considered.
The door must provide enough usable width for the forklift and load.
A sealing system should not reduce this working clearance to the point where operators need to slow down excessively or risk contacting the side structure.
Foam side pads compress against the rear edges of the trailer.
Depending on their dimensions and the trailer opening, part of the available rear access area may be occupied by the foam.
This matters when the operation involves:
Wide pallets
Large cartons
Machinery
Oversized loads
Wide forklifts
Limited trailer door clearance
Before selecting a dock seal, calculate the expected usable opening after the foam pads contact the trailer.
The warehouse door should also provide enough vertical clearance for the forklift, mast, pallet, and cargo.
The sealing system then needs to cover the space above the trailer without creating interference.
The actual relationship includes:
Warehouse door height
Trailer height
Dock height
Truck parking position
Top sealing structure
A large warehouse opening does not automatically require an equally large fixed foam header.
The top sealing element should be designed around where the actual trailers sit relative to the building.
Dock bumpers are often treated as separate impact-protection accessories.
In reality, their projection directly affects dock shelter and dock seal performance because they establish how close the trailer stops to the dock face.
When the trailer reverses into the dock, the bumpers prevent it from moving indefinitely toward the building.
Their thickness and projection establish the final relationship between the trailer and sealing system.
If the trailer stops too far away, the foam may not compress enough.
If the trailer is allowed to move too far toward the building, the foam may be excessively compressed.
This can reduce sealing consistency and increase pad wear.
Bumper projection and foam depth should therefore be selected together.
A mechanical dock shelter needs enough projection for the curtains to contact the trailer correctly.
If the shelter projects too little, curtain contact may be weak.
If it projects excessively relative to the trailer stopping position, curtain folding and structural contact may become more severe.
The bumper, shelter frame, and trailer should be treated as one geometric system.
A warehouse receiving third-party carriers often cannot control the exact dimensions of every arriving trailer.
In this situation, vehicle variation becomes one of the strongest arguments for using a shelter-based system.
Mechanical dock shelters are particularly useful where the warehouse receives several common trailer sizes but does not require extremely tight environmental sealing.
They provide flexible coverage while keeping most of the loading opening available.
There is still a practical compatibility range.
Very small trucks, unusually tall trailers, vehicles with special rear structures, or vehicles significantly outside the normal fleet dimensions may require another loading position.
Trying to design one shelter around every possible vehicle can result in poor performance for the vehicles that use the dock most frequently.
Where the facility needs stronger environmental separation but also receives trailers with different dimensions, an inflatable dock shelter may provide a better balance.
The inflatable sections remain retracted while the trailer approaches and then extend toward the vehicle after it has reached the correct dock position.
Inflatable systems are more adaptable than fixed foam pads in many applications, but the inflatable sections still have an effective operating range.
The smallest and largest expected trailer dimensions should be checked against the available inflation reach.
No inflatable shelter should be assumed capable of sealing an unlimited difference between vehicle heights or widths.
When the same or very similar trailers use a loading bay every day, the sealing system can be designed much more closely around the vehicle.
This is where a foam dock seal can become particularly practical.
If trailer width, height, and stopping position are predictable, the foam pads can be sized to provide controlled compression while preserving the required loading opening.
This reduces the compromises needed for a mixed fleet.
The seal must not create excellent exterior compression while making internal loading difficult.
For a fixed fleet, use the actual trailer rear opening rather than only the trailer outside width.
Then compare that opening with the pallet and forklift dimensions.
A good seal should support environmental separation without unnecessarily restricting the loading route.
Cold storage loading docks place more importance on controlling the open interface between the trailer and refrigerated building.
However, the answer is not automatically “Dock Seal.”
The vehicle fleet still matters.
If refrigerated trailers have consistent dimensions and the dock geometry is stable, a correctly sized foam dock seal may provide effective compression around the trailer.
This can be a practical solution where sufficient rear opening remains available for loading.
If trailer heights and widths vary, a fixed foam configuration may not provide consistent contact across the entire fleet.
An inflatable dock shelter can be considered where both vehicle flexibility and stronger sealing are required.
A dock shelter or seal cannot independently maintain cold-storage temperature.
Overall performance also depends on:
Warehouse door
Trailer position
Dock leveler configuration
Loading duration
Building insulation
Refrigeration system
Operating procedures
The sealing system should support the cold-chain design rather than being treated as a standalone energy-control product.
General warehouses usually prioritize weather protection, practical vehicle compatibility, loading clearance, and reasonable long-term maintenance.
Where trailers come from different carriers, a mechanical dock shelter is often a practical starting point.
Flexible curtains can help reduce direct rain, wind, and outdoor exposure around the trailer during loading.
They also accommodate normal vehicle variation better than a closely fitted foam seal.
A general dry warehouse does not necessarily need the same sealing system as a refrigerated distribution center.
Selecting a more complex system without a corresponding environmental requirement increases cost and maintenance without necessarily improving the actual loading operation.
Food and pharmaceutical facilities may place greater importance on environmental separation, moisture control, cleanliness, and controlled material movement.
The correct sealing system still depends on trailer consistency.
Where trailer dimensions are controlled, a foam dock seal can be designed around a predictable vehicle envelope.
Where different carriers and refrigerated vehicles use the same bay, an inflatable dock shelter may provide more flexibility.
A dock shelter or seal can help reduce uncontrolled outdoor exposure around the trailer.
It does not independently create a hygienic, cleanroom, or contamination-free loading environment.
Facility cleaning procedures, airflow, building design, doors, employee practices, and other systems remain part of environmental control.
Logistics centers often process vehicles from several transport providers and may experience relatively high truck turnover.
In these facilities, trailer compatibility and durability may matter more than achieving maximum compression around one standardized truck.
A mechanical shelter provides a relatively wide usable vehicle range while maintaining a clear loading opening.
This can make it practical for general distribution centers where vehicle dimensions vary within a known range.
Some distribution facilities combine mixed truck traffic with temperature-controlled products.
In these cases, a more adaptable inflatable system may be worth considering.
The decision should still be based on measured trailer dimensions rather than the facility type alone.
Dock shelters and dock seals wear in different ways because their contact with the trailer is different.
Typical inspection points include:
Side curtain wear
Top curtain wear
Tears or abrasion
Frame alignment
Mounting brackets
Structural deformation
Fasteners
Contact caused by misaligned trailers
If the same side curtain or frame is damaged repeatedly, simply replacing the material may not solve the root cause.
The truck approach path, bumper condition, parking alignment, and shelter dimensions should also be checked.
Dock seals should be checked for:
Foam deformation
Loss of rebound
Torn fabric covers
Excessive compression
Uneven pad wear
Loose mounting
Water or contamination damage
If one part of the seal compresses heavily while another area barely contacts the trailer, the actual vehicle dimensions may not match the original design.
This is especially common when a seal designed around one truck is later used by a wider range of trailers.
Inflatable systems add air bags, blower components, ducts, and controls to the sealing system.
These components should be inspected together with the outer contact surfaces.
Inflation and retraction should remain smooth, and damaged fabric should be repaired before the problem affects a larger section of the system.
Many poor sealing results begin with incorrect project information rather than the product itself.
Door dimensions do not describe the trailer.
The sealing product should be based on the relationship between the door, trailer, dock height, bumpers, and actual loading opening.
A warehouse handling several carriers should provide the full regular vehicle range.
Designing around only one truck can create poor sealing or excessive contact with other vehicles.
Bumpers establish how far the trailer remains from the building.
Changing this distance changes shelter contact and foam compression.
A seal can fit the trailer externally while still leaving insufficient loading clearance internally.
Always check the remaining rear opening.
More compression is not automatically better.
Excessive foam compression can increase wear and reduce usable clearance.
The correct objective is controlled contact suitable for the application.
Very broad fleets may require multiple loading positions or different sealing configurations.
Trying to force one standard system to cover every vehicle can reduce performance for the trucks that matter most.
A reliable recommendation should start with actual project dimensions.
Provide:
Minimum trailer width
Maximum trailer width
Most common trailer width
Minimum trailer height
Maximum trailer height
Most common trailer height
Trailer bed height
Rear opening width and height
Rear photographs
Vehicle type
Special rear structures
Do not provide only the extreme minimum and maximum.
Also identify which trailer dimensions represent most of the actual loading volume.
The sealing system should work especially well for the vehicles used most often.
Provide:
Door opening width
Door opening height
Dock height
Available wall space
Distance from door opening to dock edge
Existing structural conditions
Also provide:
Dock bumper projection
Dock leveler type
Dock leveler width
Trailer stopping position
Vehicle restraint position where applicable
Existing shelter or seal dimensions for replacement projects
Photographs should show the complete dock face, door opening, bumpers, leveler, surrounding wall, and representative trailers in the parked position where possible.
This helps identify dimensional relationships that may not be obvious from individual measurements.
Explain:
Loading frequency
Fixed or mixed trailer fleet
Temperature-control requirements
Weather exposure
Forklift dimensions
Pallet dimensions
Maximum cargo width
Required sealing level
Indoor and outdoor conditions
The final recommendation should combine these factors rather than selecting from truck dimensions alone.
The decision becomes much clearer when the trailer fleet and loading opening are evaluated together.
A mechanical dock shelter is generally worth considering when:
Trailer dimensions vary within a reasonable range
Several transport companies use the dock
Maintaining loading clearance is important
General weather protection is required
The facility is a general warehouse or logistics center
Heavy foam compression against the trailer is undesirable
A foam dock seal may be a better fit when:
Trailer sizes are relatively consistent
The rear opening provides enough clearance after pad compression
Closer-fitting compression sealing is required
Truck stopping position is predictable
Bumper projection is correctly matched to the seal
The facility uses a controlled or fixed vehicle fleet
An inflatable dock shelter is worth considering when:
Trailer dimensions vary
Stronger sealing is required
Cold chain or temperature-controlled loading is involved
The effective inflation range covers the expected fleet
The project can support the additional blower and control system
The most useful way to make the final decision is to draw or calculate the vehicle envelope created by the smallest, largest, and most frequently used trailers.
Then compare that envelope with:
Door opening
Dock height
Bumper projection
Forklift clearance
Shelter or seal contact area
This shows whether one system can realistically serve the regular fleet without excessive gaps, excessive compression, or restricted loading access.
Dock shelters and dock seals both reduce the open space between a trailer and warehouse, but they are designed around different vehicle conditions.
A Mechanical Dock Shelter uses flexible curtains and is generally more adaptable to mixed trailer fleets while preserving more of the loading opening.
A Foam Dock Seal relies on controlled compression and can provide effective sealing where trailer dimensions and parking positions are consistent.
An Inflatable Dock Shelter can provide another option when stronger sealing needs to be combined with a wider vehicle range.
The correct choice begins with actual trailer measurements, not with a product catalogue. Trailer width, trailer height, rear opening dimensions, warehouse door size, dock height, bumper projection, forklift clearance, and environmental requirements should all be evaluated together.
When the sealing system is selected around the complete trailer-to-building geometry, the result is more likely to provide consistent contact, practical loading clearance, manageable wear, and reliable long-term performance.
