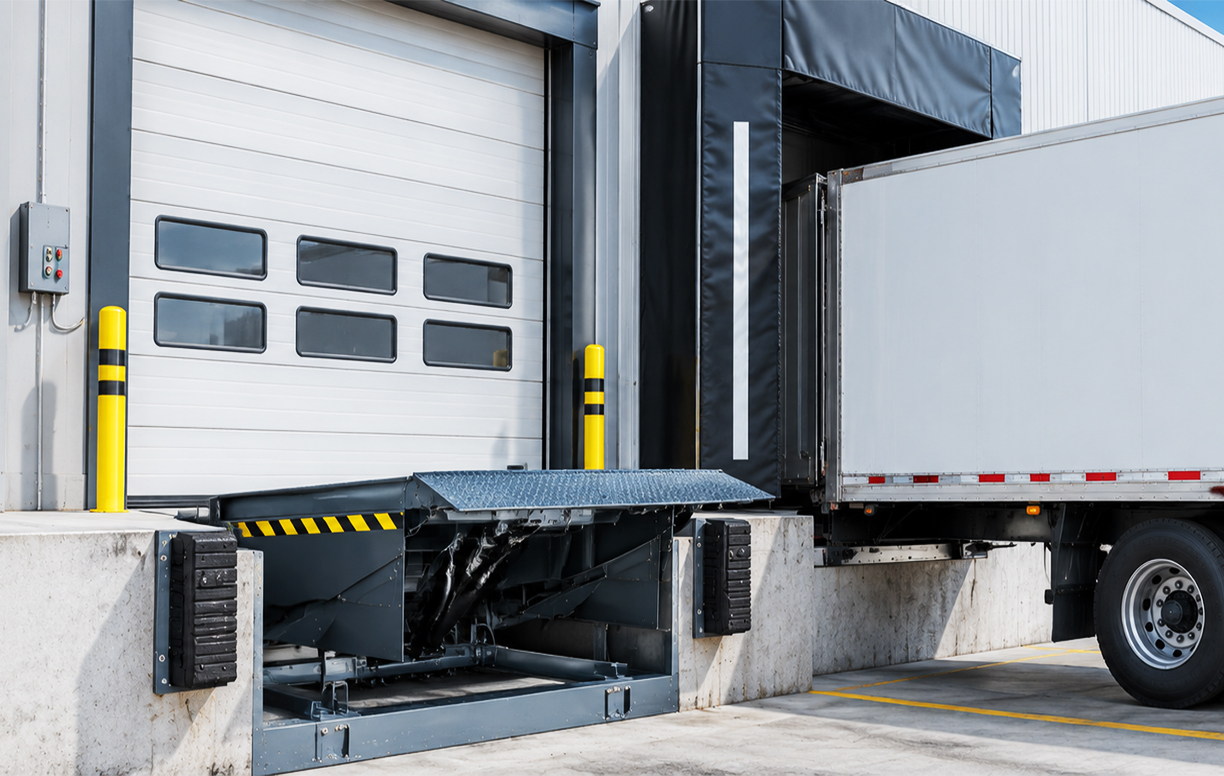

A dock leveler is an important piece of loading dock equipment used to bridge the gap and height difference between a warehouse platform and a truck or trailer.
Truck beds rarely stop at exactly the same height as the warehouse floor. Vehicle suspension, cargo weight, trailer type, and dock height can all create differences between the two surfaces.
Without a suitable transition, forklifts and pallet handling equipment may have difficulty moving safely and efficiently between the warehouse and vehicle.
A dock leveler solves this problem by creating an adjustable bridge.
Today, dock levelers are widely used in warehouses, distribution centers, manufacturing plants, cold storage facilities, food and beverage factories, retail logistics centers, and many other industrial loading environments.
This guide explains what a dock leveler is, how it works, the main types available, and how to select the right solution for different applications.

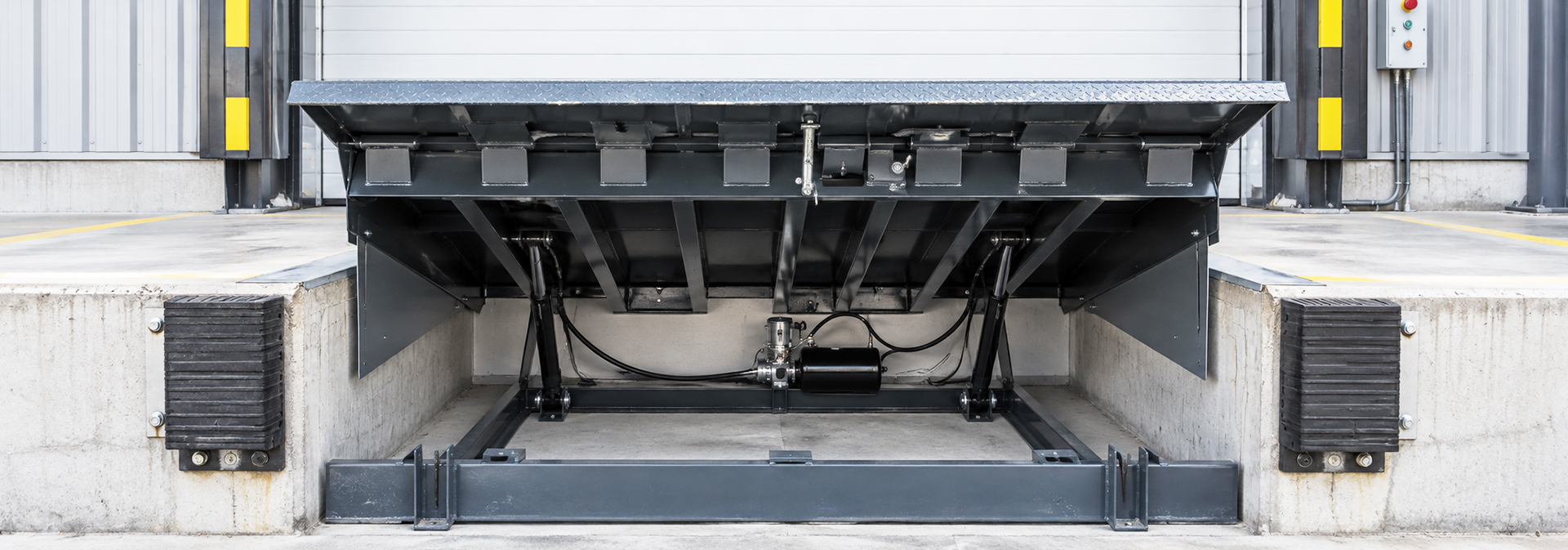

A dock leveler is installed at a loading bay to create a transition between the fixed warehouse platform and the truck bed.
It normally consists of a movable steel platform and a lip that extends or rotates onto the trailer.
The main purpose is to compensate for differences in height and distance between the building and vehicle.
When a truck reaches the loading bay, there is normally a physical gap between the rear of the trailer and the warehouse platform.
The dock leveler spans this gap so forklifts can move between the two surfaces.

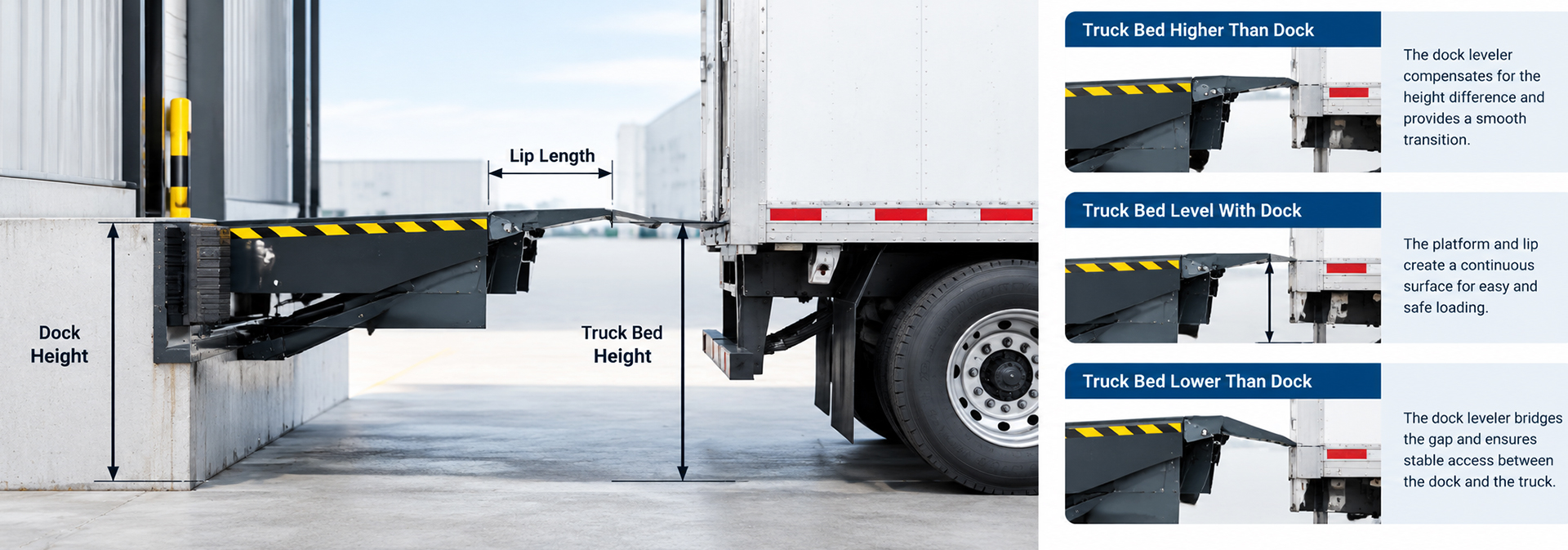

Different trucks do not have identical bed heights.
The dock leveler moves above or below the fixed warehouse floor to meet the trailer bed.
This creates a more practical transition than relying on the warehouse platform height alone.
A fixed loading platform cannot adjust to different vehicles.
An adjustable dock leveler allows one loading bay to serve vehicles with different bed heights, provided they fall within the equipment's designed operating range.
Although different dock leveler types use different lifting systems, the basic operating principle is similar.
The platform moves from its stored position, connects with the vehicle, supports loading operations, and then returns to its original position.
The truck first reverses toward the building and reaches its final loading position.
The truck must stop at an appropriate distance from the warehouse.
Dock bumpers usually help determine this stopping position and protect the dock structure from repeated vehicle contact.
The dock leveler platform is activated after the vehicle is correctly positioned.
Depending on the equipment, the platform may be raised by:
Hydraulic cylinders
Mechanical spring systems
Airbag lifting systems
The objective is to raise the platform high enough for the lip to clear the trailer bed.
After the platform rises, the lip moves toward the trailer.
The lip rests on or extends onto the vehicle bed.
The platform then lowers until it forms a transition between the dock floor and trailer.
Forklift loading and unloading can then begin.
Truck height can change slightly during loading.
As weight is added to or removed from the trailer, the truck suspension may move.
A properly designed dock leveler can follow reasonable vertical movement while remaining connected to the vehicle.
After loading is complete, the equipment is returned to its stored position.
For a conventional pit-mounted dock leveler, the platform returns to the horizontal stored position, ready for the next truck.

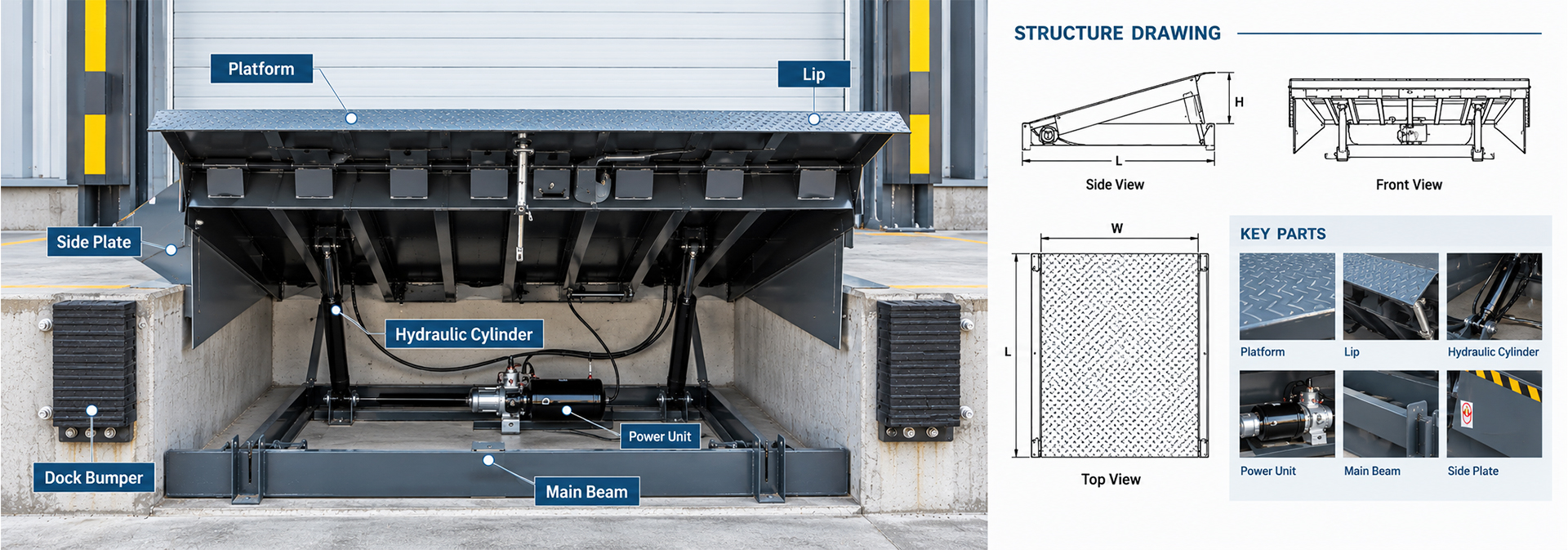

Understanding the main components makes it easier to compare different designs.
The platform is the main steel surface that moves between the warehouse and truck.
The platform supports forklifts and cargo during loading.
Its design should therefore reflect actual capacity, traffic frequency, and wheel loads.
The lip is the part that makes direct contact with the truck bed.
The lip needs sufficient overlap with the vehicle bed to create a stable transition.
The required length depends on the dock design, vehicle position, bumper projection, and leveler type.
The platform needs a mechanism to raise and lower it.
Hydraulic cylinders, airbag lifting systems, or mechanical components can be used depending on the dock leveler design.
Controls may range from simple push buttons to integrated loading dock control systems.

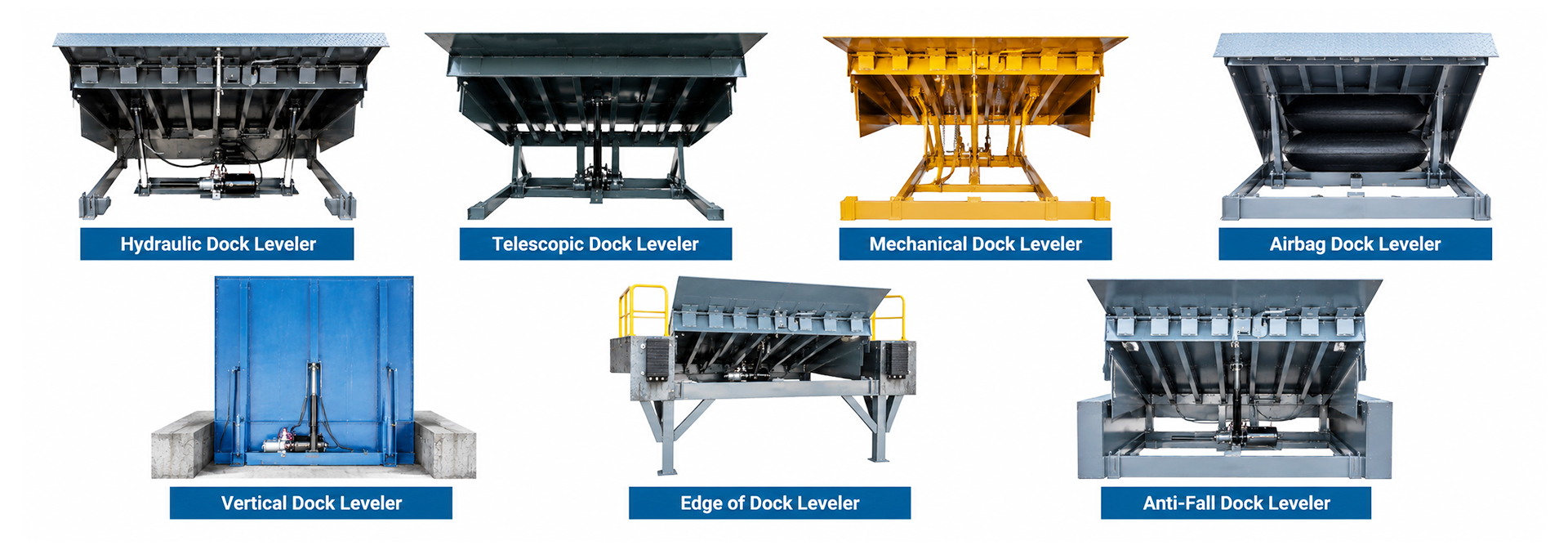

There is no single dock leveler suitable for every loading bay.
Different designs solve different operational problems.
Hydraulic dock levelers use a hydraulic power unit to control platform and lip movement.
They are widely used in:
Warehouses
Distribution centers
Manufacturing plants
Logistics facilities
Retail warehouses
Hydraulic operation provides straightforward push-button control and is suitable for many regular forklift loading applications.
A telescopic dock leveler uses a lip that extends horizontally toward the truck.
The operator can control how far the lip extends.
This is useful when vehicle positions vary or when more precise overlap with the trailer bed is required.
Mechanical dock levelers use spring-assisted mechanical systems instead of hydraulic power.
They can provide a practical solution where a simpler operating system is preferred.
However, operating effort, maintenance requirements, traffic frequency, and application conditions should be considered before selection.
Airbag dock levelers use an inflatable lifting system beneath the platform.
When activated, the airbag expands and raises the platform.
Airbag levelers can be used in many standard warehouse and distribution applications where the vehicle and loading conditions are suitable.
Vertical dock levelers are stored upright inside the building instead of horizontally across the pit.
They are often used in:
Cold storage
Food warehouses
Freezer facilities
Pharmaceutical logistics
Controlled environments
The vertical stored position allows the dock door to remain closed closer to the loading opening until loading operations begin.
An edge of dock leveler is mounted near the edge of the loading platform rather than inside a conventional full-size pit.
This type can be useful for existing warehouses or lower-volume loading areas where vehicle bed heights remain relatively close to dock level.
Its working range is generally more limited than that of a full pit-mounted leveler.
Dock levelers are used anywhere forklifts or material handling equipment need to move between a raised warehouse platform and delivery vehicles.
Different industries create different operating requirements.
General warehouses are among the most common applications.
Dock levelers help forklifts transfer pallets between trailers and warehouse floors throughout receiving and shipping operations.
Hydraulic and telescopic designs are commonly considered for these applications.
Manufacturing plants use loading docks for incoming materials and outgoing finished products.
Raw materials may arrive through one group of loading bays while finished goods leave through another.
The leveler configuration can therefore vary between receiving and shipping areas.
Cold chain facilities have additional environmental requirements.
Vertical dock levelers can be particularly useful because the dock door can remain closed longer before loading begins.
They may be combined with insulated doors and inflatable dock shelters.
Food and beverage logistics often involves frequent pallet handling and cleaning requirements.
The leveler material and surface treatment should be selected according to actual exposure.
Depending on the environment, protective coatings, galvanized surfaces, or stainless steel components may be considered.
Large distribution centers often experience high truck volumes and peak operating periods.
A small delay repeated across many loading cycles can become a significant logistics bottleneck.
Equipment reliability and preventive maintenance therefore become particularly important.
Choosing the correct dock leveler requires more information than simply selecting a platform size.
The vehicle, warehouse, forklift, cargo, and operating environment all matter.
The first consideration is the real operating load.
Do not select the dock leveler only according to cargo weight.
The platform supports the forklift and cargo together while they are moving across the leveler.
Wheel configuration and loading frequency should also be considered.
The leveler must reach the expected vehicles.
Provide:
Minimum truck bed height
Maximum truck bed height
Dock platform height
These values help determine the required above-dock and below-dock working range.
Dock levelers are available in different widths and lengths.
Selection should consider:
Door opening width
Pit dimensions
Forklift width
Vehicle width
Required working range
For renovation projects, existing pit dimensions are particularly important.
Different dock levelers use different lip designs and lengths.
Lip overlap depends partly on how far the vehicle stops from the building.
Dock bumpers, vehicle rear structures, tail lifts, and other components can affect the available connection distance.
A high-volume loading dock creates more equipment cycles and repeated forklift traffic.
A warehouse operating three shifts has different requirements from a facility receiving only several trucks per day.
Traffic frequency should therefore be discussed before the equipment configuration is finalized.
Not all dock levelers operate in dry indoor conditions.
Consider:
Outdoor exposure
Rain
Humidity
Cleaning
Temperature
Corrosive conditions
Surface treatments or alternative materials may be required for demanding applications.
Load capacity is one of the most misunderstood dock leveler specifications.
The equipment does not simply hold a stationary pallet.
A forklift drives onto the platform, changes direction, brakes, and carries concentrated loads through its wheels.
The actual operating condition is therefore more demanding than simply adding the nominal weight of one pallet.
Forklift loads are transferred through relatively small tire contact areas.
Two forklifts with similar total weights may create different platform loading depending on tire type, wheel spacing, and axle configuration.
For demanding applications, these conditions should be discussed with the equipment supplier.
Dock levelers operate in an area where trucks, forklifts, equipment, and employees work close together.
The leveler should therefore be considered as one part of the overall loading dock safety system.
The trailer should remain correctly positioned while a forklift is moving between the warehouse and vehicle.
Vehicle restraint systems, traffic lights, and appropriate operating procedures can help control vehicle movement during loading.
The exact solution should follow local requirements and site safety procedures.
The leveler platform forms part of the forklift travel path.
Wet, icy, damaged, or obstructed loading surfaces can increase operating risk.
Dock areas should be kept clean and inspected regularly.
Modern loading bays can connect several pieces of equipment through control logic.
For example, the dock leveler can remain disabled until the sectional door is fully opened.
Depending on the project, vehicle restraints and traffic lights can also be integrated into the sequence.
Correct installation begins before the equipment arrives at the warehouse.
Most conventional dock levelers are installed inside a prepared concrete pit.
Before constructing the pit, confirm:
Pit width
Pit length
Pit depth
Embedded steel requirements
Cable routes
Correct pit preparation can prevent costly modifications later.
Powered dock levelers require an appropriate electrical supply.
Provide:
Voltage
Phase
Frequency
Control panel location
Cable routing requirements
Integrated control systems may require additional wiring for doors, restraints, signals, or sensors.
A dock leveler carries repeated moving loads, so preventive maintenance is important for reliable long-term operation.
Operators should pay attention to changes in equipment behavior.
Examples include:
Unusual noise
Slow movement
Damaged platform surfaces
Lip problems
Hydraulic leakage
Loose components
Abnormal conditions should be inspected before they become larger problems.
Periodic maintenance should follow the manufacturer's recommendations.
Typical inspection areas include:
Hinges
Hydraulic cylinders
Hoses
Power unit
Lip mechanism
Structural welds
Safety supports
Electrical controls
Maintenance frequency should reflect actual equipment usage.
Many loading dock problems can be avoided before the equipment is ordered.
Two dock levelers of similar dimensions may be designed for different operating conditions.
Review capacity, platform structure, lip type, hydraulic or lifting system, controls, safety features, and after-sales support.
Selecting equipment before measuring trucks can create operating problems.
The lowest and highest truck bed heights are particularly important when confirming the required working range.
The bumper determines how close the truck reaches the building.
A thicker bumper or unusual vehicle rear structure can reduce the effective overlap between the leveler lip and trailer.
This should be checked during project design.
This underestimates the actual operating load.
Forklift weight, wheel configuration, cargo, and loading frequency should all be considered.
The leveler operates together with several other dock components.
Review the dock leveler with:
Industrial door
Dock shelter
Dock bumpers
Vehicle
Vehicle restraint
Controls
A coordinated layout can identify dimensional conflicts before installation.
These two products both bridge loading gaps, but they are not identical.
A dock plate is typically a lighter bridging device used for selected loading applications.
A dock leveler is normally built into or mounted at the loading platform and provides adjustable movement for truck height differences.
For forklift loading operations, equipment must always be selected according to the required load and application.
Accurate project information allows the supplier to recommend a more appropriate configuration.
Provide the dock platform dimensions and existing construction conditions.
Useful information includes:
Dock height
Pit dimensions
Door opening size
Available installation space
The supplier needs to understand what the dock leveler must connect with.
Provide:
Minimum truck bed height
Maximum truck bed height
Vehicle width
Rear bumper or protection structure
Any tail lift configuration
Actual loading conditions determine capacity and configuration.
Provide:
Forklift weight
Maximum cargo weight
Daily loading frequency
Number of working shifts
Indoor or outdoor installation conditions
Photos and drawings are especially useful for renovation projects.
No.
A dock leveler is most useful where forklifts or similar material handling equipment regularly move between a raised loading dock and trucks.
There is no universal lip length suitable for every loading bay.
Vehicle position, bumper thickness, leveler design, truck structure, and required overlap should all be considered.
Neither type is automatically better for every application.
Hydraulic hinged-lip models work well for many standard loading bays.
Telescopic models provide greater control where vehicle position or overlap requirements vary.
Many pit-mounted levelers are designed to operate both above and below the fixed dock level.
The actual operating range depends on platform dimensions and equipment design.
The truck bed height range should therefore be confirmed before selection.
A dock leveler is an adjustable loading dock platform designed to bridge the gap and compensate for height differences between a warehouse dock and truck bed.
Its basic function is simple, but selecting the correct equipment requires understanding the complete loading operation.
The most important fa ctors include:
Truck bed height range
Dock platform height
Forklift weight
Maximum cargo load
Loading frequency
Platform dimensions
Lip requirements
Vehicle rear structure
Operating environment
Required safety and control systems
Hydraulic dock levelers are suitable for many standard warehouse applications. Telescopic dock levelers provide greater control over lip positioning. Vertical dock levelers are particularly useful for selected cold storage and controlled environments, while airbag, mechanical, and edge of dock designs provide additional solutions for different loading conditions.
Most importantly, the dock leveler should not be selected as an isolated piece of equipment.
The leveler, truck, industrial door, dock shelter, bumpers, vehicle restraint, forklift, and control system all interact during loading.
By evaluating the complete loading bay before equipment selection, warehouses and industrial facilities can create a more practical, reliable, and efficient connection between the building and vehicle.
