A modern warehouse loading dock is more than a place where trucks stop for loading and unloading.
It is the physical connection between transportation and warehouse operations. Every pallet entering or leaving the facility must pass through this area, which means the design of the loading dock can directly affect truck turnaround time, forklift efficiency, warehouse traffic, environmental control, equipment reliability, and loading safety.

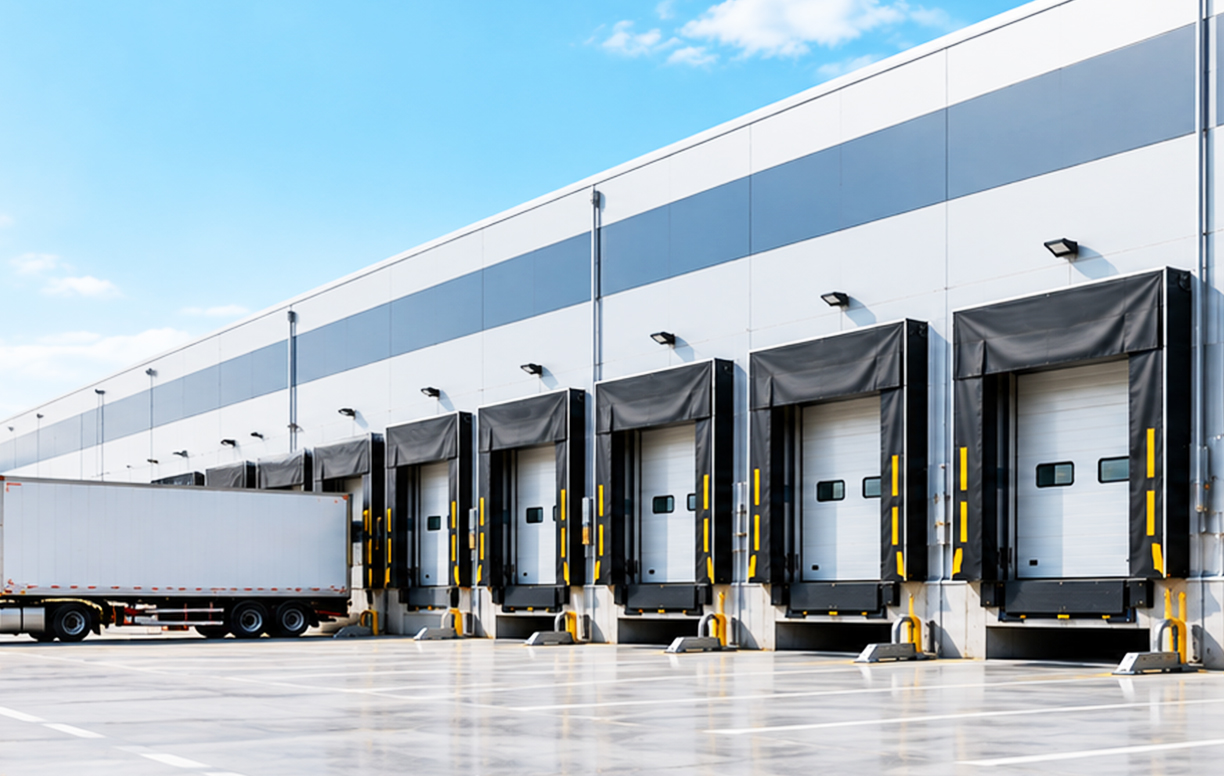

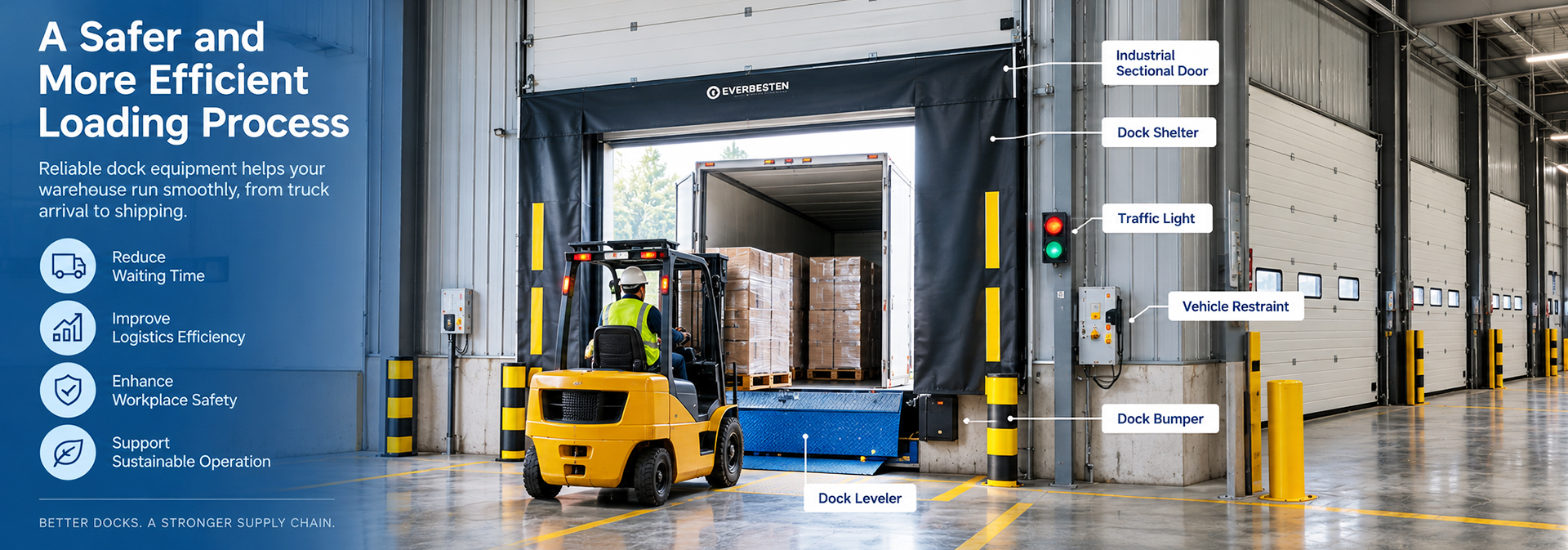

A typical loading bay may include:
Dock levelers
Industrial sectional doors
Dock shelters or dock seals
Dock bumpers
Vehicle restraint systems
Traffic lights
Control systems
Safety devices
High speed doors for internal warehouse areas
The performance of these products depends not only on their individual specifications but also on how well they work together.
For example, the dock bumper determines where the truck stops. That position affects how far the dock leveler lip can reach into the trailer. It also influences the compression of the dock shelter and the operating position of the vehicle restraint.
This is why loading dock equipment should be planned as one complete system.
This guide explains the main design considerations and equipment options for modern warehouses, distribution centers, manufacturing warehouses, and logistics facilities.
A common mistake is to begin a project by asking which dock leveler or dock shelter should be purchased.
The better starting point is the warehouse operation itself.
Before selecting equipment, understand how products arrive, how they move through the building, and how they leave.
Some warehouses mainly receive raw materials.
Others focus on outbound distribution.
Large distribution centers may handle both operations simultaneously.
Important questions include:
How many trucks arrive each day?
How many loading bays operate at the same time?
What types of vehicles use the facility?
How long does each truck remain at the dock?
Are inbound and outbound docks separated?
What type of forklift or pallet handling equipment is used?
Are there peak loading periods?
A loading dock that works well for five trucks per day may not be suitable for a distribution center handling dozens of vehicles during each shift.
Equipment capacity, loading bay quantity, traffic routes, and maintenance requirements should therefore reflect actual operating conditions.
Future growth should also be considered when possible.
Loading dock design begins outside the building.
A truck must be able to enter the site, approach the loading area, reverse into position, and leave without creating unnecessary traffic conflicts.
The space in front of the loading bays should allow the expected vehicles to reverse safely and efficiently.
The required area depends on:
Truck length
Trailer configuration
Road width
Dock angle
Number of adjacent bays
Traffic direction
A logistics facility handling full-size trailers normally requires more maneuvering space than a warehouse receiving small local delivery vehicles.
There is no single apron dimension suitable for every project.
Actual vehicle types should be reviewed during site planning.
The truck is one of the most important parts of the loading dock system.
Different trailers may have different bed heights, widths, body heights, suspension systems, and rear structures.
Before finalizing dock equipment, collect:
Minimum truck bed height
Maximum truck bed height
Minimum vehicle body height
Maximum vehicle body height
Truck width
Trailer length
Rear bumper structure
Rear door configuration
A standard truck drawing may be useful during preliminary planning, but it should not replace real operating data.
Warehouses often receive vehicles from several carriers.
If the dock is designed only around the most common truck, smaller or taller vehicles may create problems later.
The warehouse dock platform should be designed to work with the expected truck bed height range.
The closer the dock height is to the typical truck bed height, the easier it is for the dock leveler to create a suitable transition.
When a truck bed is significantly higher or lower than the warehouse platform, the leveler operates at a steeper angle.
This can affect forklift movement.
Do not evaluate dock height only against an average vehicle.
The design should consider:
Lowest expected truck bed
Highest expected truck bed
Dock leveler operating range
Forklift ground clearance
Load stability
This becomes especially important in facilities serving mixed vehicle fleets.
The dock leveler bridges the height difference and physical gap between the fixed loading platform and the trailer.
Different designs provide different levels of flexibility.

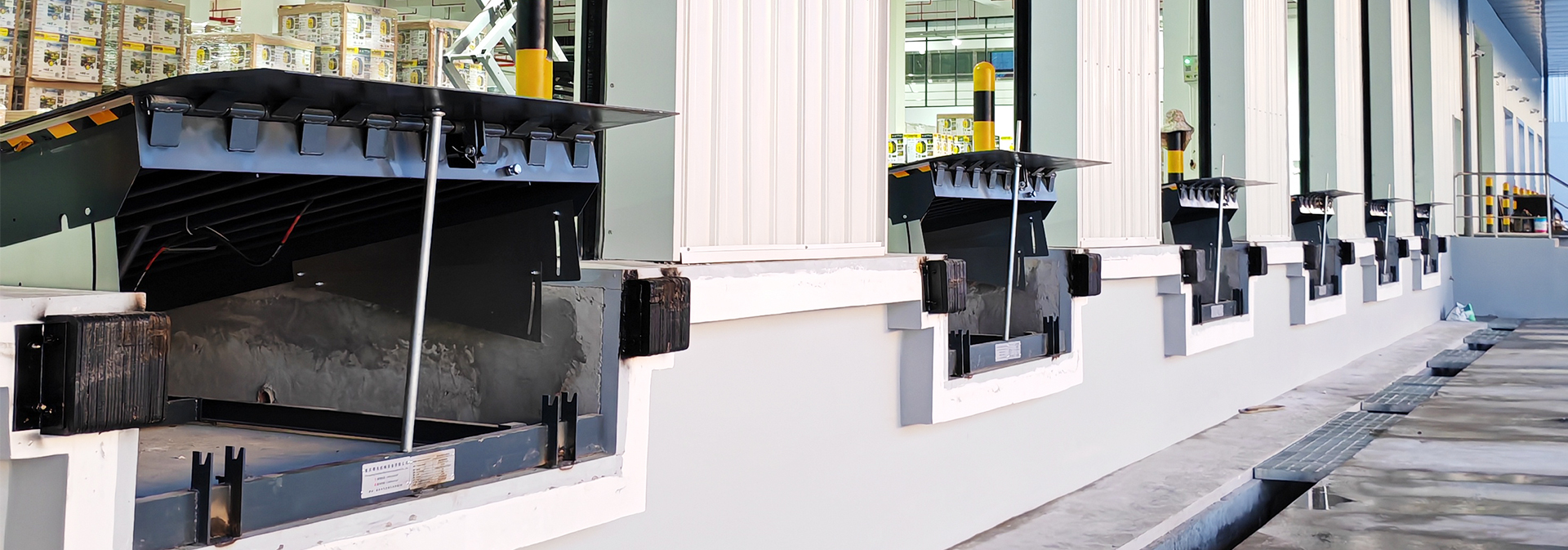

Hydraulic dock levelers are one of the most common solutions for modern loading bays.
The hydraulic system raises the platform while the lip moves onto the truck bed.
They provide:
Controlled operation
Stable platform movement
Good load capacity
Simple push-button control
Suitable operation for regular forklift traffic
Hydraulic dock levelers are commonly used in:
General warehouses
Distribution centers
Manufacturing facilities
Retail warehouses
Logistics centers
Food and beverage warehouses
They are particularly suitable where vehicle dimensions remain within a reasonably predictable range.

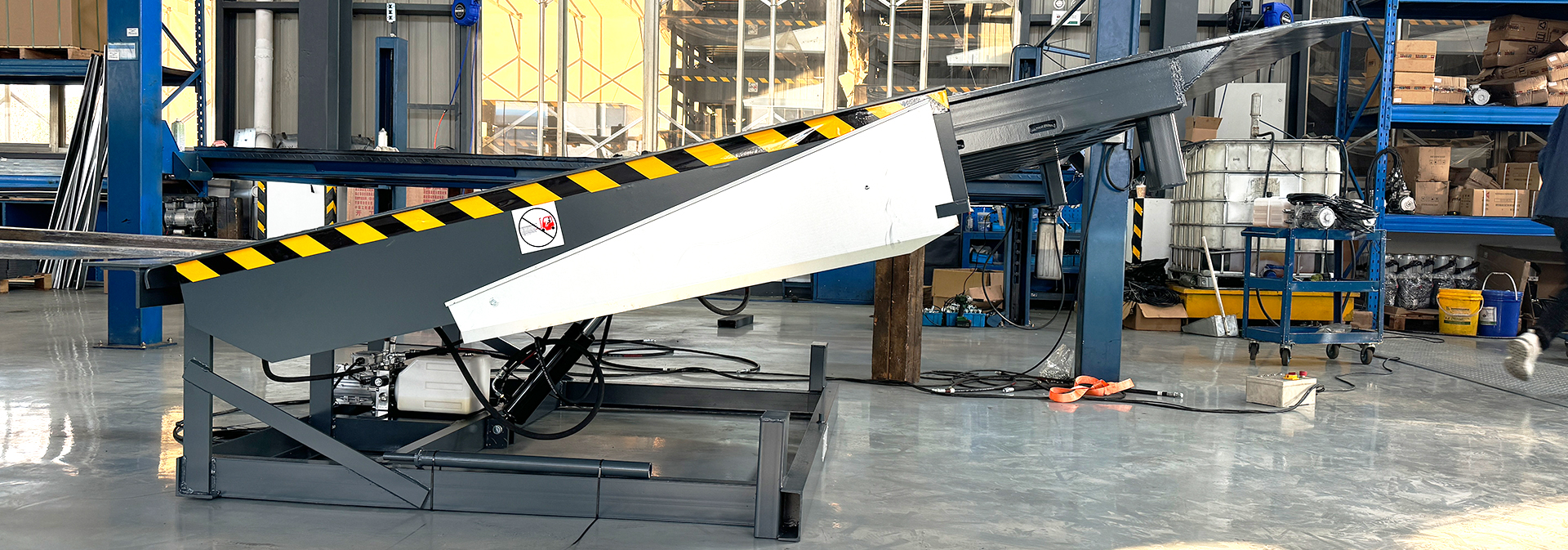

Telescopic dock levelers use an extendable lip that moves horizontally toward the vehicle.
This provides greater control over the amount of overlap between the leveler and truck bed.
A telescopic design can be considered when:
Different truck types use the same loading bay
Vehicle positioning varies
Precise lip placement is important
Goods are positioned close to the rear of the trailer
Greater lip overlap is required
Truck bumpers, tail lifts, rear protection structures, and trailer geometry can affect how the telescopic lip reaches the truck bed.
These dimensions should be reviewed before final equipment selection.

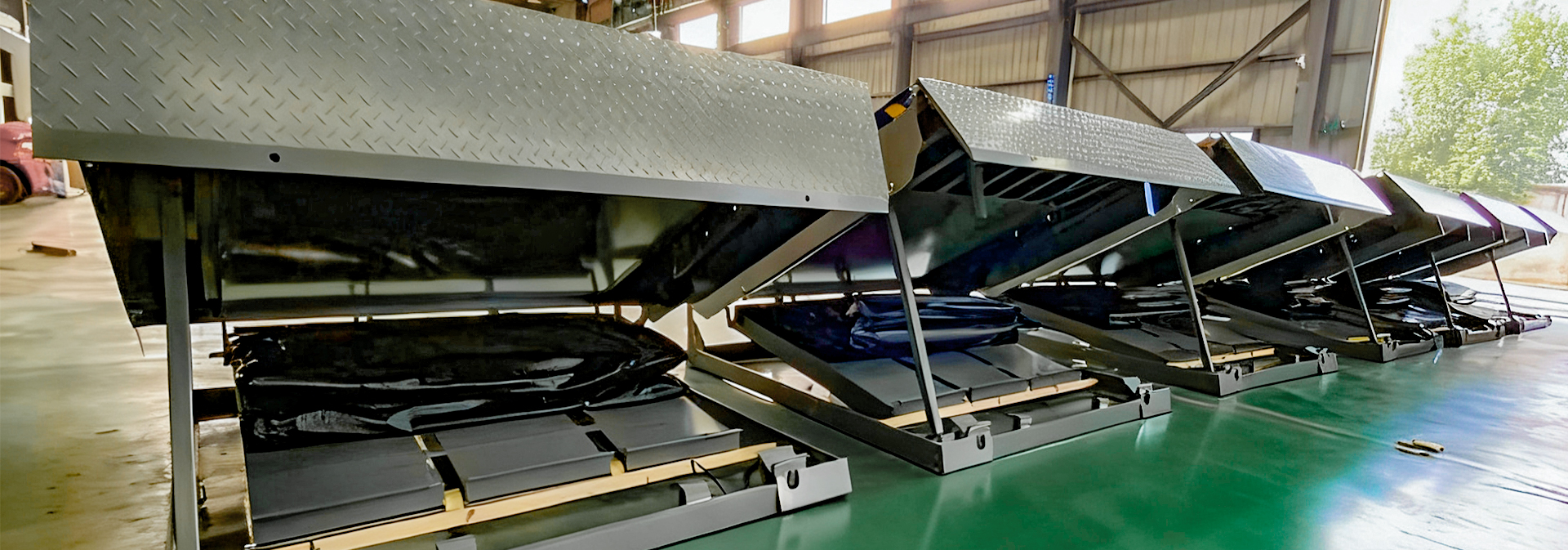

Airbag dock levelers use an air-powered lifting system to raise the platform.
They provide an alternative to conventional hydraulic lifting systems.
They may be used in:
General warehousing
Distribution centers
Retail logistics
Manufacturing warehouses
Standard pallet loading areas
Selection between hydraulic and airbag systems should consider:
Loading frequency
Required capacity
Maintenance preference
Environment
Budget
Available service support
The lifting mechanism should not be the only factor considered.

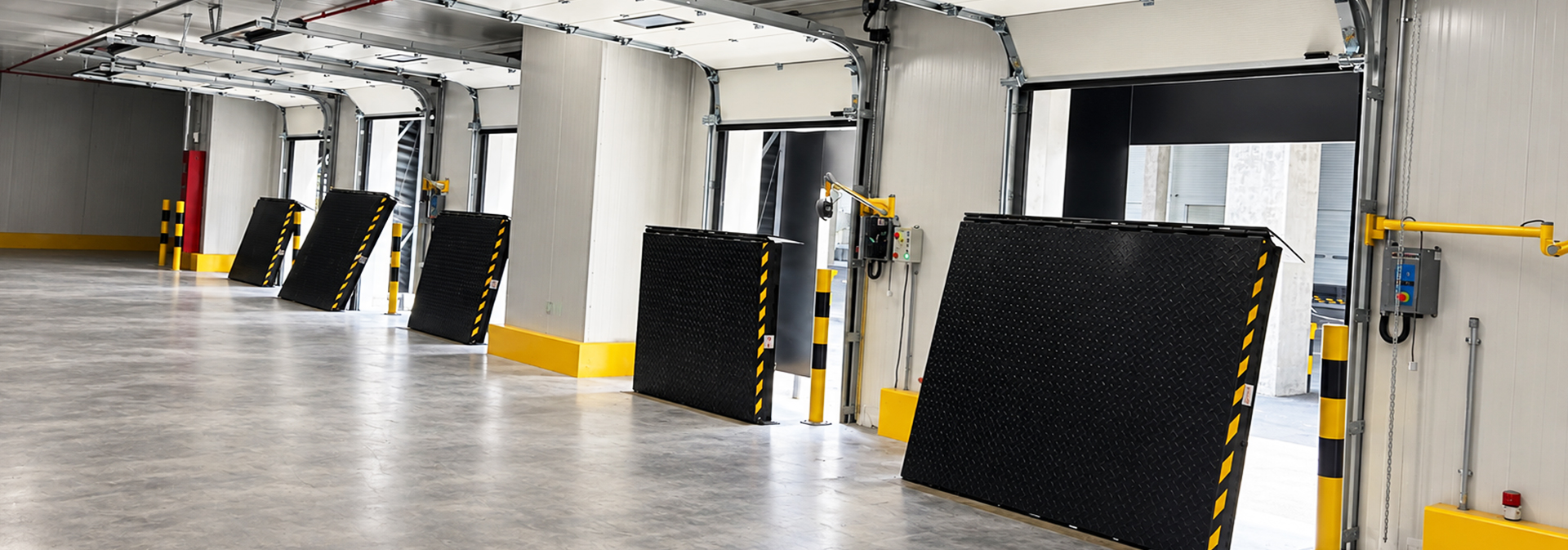

Vertical dock levelers are stored upright inside the warehouse when not in use.
This allows the building door to remain closed closer to the opening.
With a conventional pit leveler, part of the dock opening is connected to the leveler pit.
A vertical design allows the warehouse floor and door arrangement to provide better separation before loading begins.
Vertical dock levelers are often considered for:
Cold storage
Food warehouses
Pharmaceutical logistics
Temperature-controlled distribution centers
Facilities with higher cleaning requirements
They can also make the pit area more accessible for cleaning when stored upright.
Not every warehouse has space for a conventional dock pit.
For lower-volume operations, an edge of dock leveler may sometimes provide a practical alternative.
Applications may include:
Existing warehouses without pits
Lower traffic loading bays
Facilities with relatively consistent truck heights
Compared with a full pit leveler, an edge of dock design generally has a more limited operating range.
It should therefore be selected only after confirming:
Dock height
Truck bed height
Required lip overlap
Vehicle rear configuration
Forklift conditions
Rated capacity should not be determined only from the weight printed on a pallet label.
The dock leveler supports the complete moving system.
Important factors include:
Forklift weight
Cargo weight
Wheel arrangement
Wheel contact area
Travel speed
Number of cycles
A loading bay operating continuously across multiple shifts places different demands on the equipment compared with a warehouse that receives only several trucks each day.
Load capacity and equipment durability should therefore reflect both weight and operating frequency.
Industrial sectional doors are commonly installed at external warehouse loading docks.
They open vertically and move along tracks inside the building.
Typical advantages include:
Insulated panels
Perimeter sealing
Vertical opening
Efficient use of space
Different track configurations
Optional vision sections
Sectional door track configuration depends on the space above and beside the opening.
Before manufacturing, confirm:
Opening width
Opening height
Left-side clearance
Right-side clearance
Headroom
Ceiling structure
The industrial door and dock leveler operate at the same loading bay.
They should therefore be designed together.
If the door track, bottom panel, or other components conflict with the dock leveler, installation problems may appear on site.
A complete loading bay drawing should show:
Door position
Dock leveler
Dock shelter
Bumpers
Vehicle
Available headroom
Reviewing these elements together can identify conflicts before production.
High speed doors are normally used differently from dock sectional doors.
They are particularly useful inside warehouses where frequent forklift traffic passes between operational zones.
These include:
Warehouse zoning areas
Production-to-warehouse passages
Packing areas
Internal logistics corridors
Temperature-controlled zones
High speed doors can be activated using:
Radar sensors
Loop detectors
Pull cords
Remote controls
Push buttons
The activation system should match the actual traffic flow.
Even when the truck is correctly positioned, spaces remain between the trailer and warehouse opening.
Dock shelters and dock seals help reduce these gaps.
Uncontrolled gaps can allow:
Rain
Wind
Dust
Outdoor air
Heat or cold
to enter the loading area.
A general ambient warehouse may require basic weather protection.
A cold storage or food warehouse may require much closer sealing.
The correct solution depends on both environment and vehicle range.
Mechanical dock shelters use flexible side and top curtains that contact the truck body.
Their flexible design can accommodate a range of vehicle sizes.
Before selecting dimensions, confirm:
Truck width range
Truck body height range
Dock platform height
Door opening dimensions
A shelter selected without vehicle data may provide poor sealing for part of the fleet.
Inflatable dock shelters use air-filled side and top sections.
After the truck reaches the dock, the cushions inflate around the vehicle.
They are often considered where stronger sealing is required.
Applications include:
Cold chain warehouses
Food distribution
Pharmaceutical warehouses
Controlled environments
The inflatable system must be able to reach both lower and taller vehicles.
If the vehicle height range is too large, one standard shelter may not seal effectively around every truck.
Dock seals use compressible foam pads around the loading opening.
The trailer presses against the pads when it reaches the dock.
Dock seals can provide effective sealing when vehicle dimensions are relatively predictable.
If vehicle height and width vary significantly, a mechanical or inflatable shelter may offer better adaptability.
Some warehouses receive trucks with wider dimensional variation.
In these situations, adjustable sealing systems may provide more flexibility.
Applications may include:
Multiple transport providers
Mixed delivery fleets
Different trailer heights
Renovation projects
Adjustment alone cannot compensate for unlimited variation.
Minimum and maximum truck dimensions should still be confirmed during design.
Dock bumpers protect the warehouse structure from repeated truck contact.
However, their role is more important than simple impact protection.
When the truck reverses into position, the bumper defines how close the vehicle can approach the building.
The stopping distance influences:
Dock leveler lip overlap
Shelter compression
Vehicle restraint position
Door clearance
Truck-to-building gap
Bumpers should therefore be coordinated with the other dock equipment.
A truck should remain in a stable position while forklifts are entering or leaving the trailer.
Vehicle restraint systems can help control this movement.
Unexpected movement can create a gap between the trailer and the loading dock.
Depending on the system, restraints can be connected to:
Traffic lights
Dock leveler controls
Door controls
Warning signals
This helps create a clearer loading sequence.
Warehouse operators and truck drivers need a simple way to understand loading status.
A typical system may use:
Exterior red and green lights
Interior red and green indicators
For example, the external light can indicate whether the truck should remain at the dock, while the internal signal informs warehouse operators whether loading is permitted.
Modern loading bays can integrate different equipment through control logic.
The dock leveler may remain disabled until the sectional door reaches the required open position.
This can help prevent incorrect operation and reduce the possibility of equipment contact.
The actual logic should always follow the equipment design and site operating procedures.
Loading areas combine trucks, forklifts, pedestrians, elevated platforms, and moving equipment.
Safety planning should therefore begin during design.
Water, debris, damaged pallets, and loose packaging can interfere with forklift movement.
Particular attention should be given to:
Warehouse floor
Dock leveler platform
Leveler lip
Trailer floor
These surfaces form the complete forklift travel path.
When a truck is not positioned at the loading bay, the dock edge may be exposed.
Depending on the project, measures may include:
Dock barriers
Warning markings
Guard systems
Safety gates
Operating procedures
Lighting and floor markings should make the dock edge easy to identify.
Modern warehouses often have high levels of internal traffic.
Pedestrian movement should be organized around loading areas.
Possible measures include:
Floor markings
Guard rails
Designated crossings
Warning signs
Physical barriers
Door openings, trailers, stored pallets, and dock equipment can reduce visibility.
Traffic layout should therefore consider sight lines as well as available space.
Not every warehouse requires the same configuration.
A typical configuration may include:
Industrial sectional door
Hydraulic dock leveler
Mechanical dock shelter
Dock bumpers
Vehicle restraint
Traffic lights
The focus is usually reliable pallet handling and flexible operation.
A cold storage loading bay may require:
Insulated door
Vertical dock leveler
Inflatable dock shelter
Vehicle restraint
Integrated controls
The objective is to reduce unnecessary air exchange while maintaining efficient loading.
A high-volume facility may prioritize:
Reliable levelers
Efficient truck positioning
Interlocked controls
Multiple loading bays
Preventive maintenance
Small delays at each loading bay can become significant when repeated across many trucks.
A manufacturing facility may have both inbound material receiving and outbound finished goods shipping.
Inbound and outbound docks may require different configurations depending on vehicles, loads, and operating frequency.
New warehouse construction provides the best opportunity to coordinate the loading dock before equipment is installed.
Before completing concrete work, confirm:
Dock height
Leveler pit dimensions
Door opening dimensions
Steel structure
Electrical supply
Shelter installation area
Changing a pit dimension after concrete construction is much more difficult than adjusting a drawing during the planning stage.
Existing warehouses create different challenges because many dimensions are already fixed.
Check:
Existing pit size
Dock height
Door opening
Bumper condition
Electrical supply
Building structure
Truck position
A photo showing the actual truck parked at the dock can be especially useful.
It allows the equipment supplier to understand the relationship between the vehicle, building, bumper, shelter, and dock leveler.
Many installation problems can be avoided during planning.
Collect the realistic vehicle range.
Include forklift weight, frequency, and actual operating conditions.
Review the final vehicle stopping position before confirming the dock leveler lip.
Confirm minimum and maximum vehicle height and width first.
Coordinate the sectional door with the dock leveler, shelter, and available headroom.
Leave sufficient space for inspection and service around hydraulic systems, controls, shelters, and door components.
Loading dock equipment should be inspected before problems begin affecting warehouse operations.
Regular inspection may cover:
Platform
Lip
Hinges
Hydraulic system
Safety supports
Electrical controls
Structural fasteners
A loading bay operating multiple shifts may require more frequent inspection than a low-volume dock.
Check:
Door panels
Tracks
Rollers
Seals
Motors
Controls
Safety devices
Minor misalignment can increase wear over time.
Early adjustment can reduce larger maintenance problems.
Check:
Curtain wear
Foam condition
Inflatable cushions
Air hoses
Mounting structure
Vehicle contact areas
A shelter may still appear usable even when worn areas allow substantial gaps around the truck.
Complete project information helps suppliers recommend equipment more accurately.
Provide:
Dock height
Door opening dimensions
Pit dimensions
Wall construction
Available headroom
Available side room
Provide:
Minimum truck bed height
Maximum truck bed height
Vehicle width
Vehicle body height
Rear bumper structure
Provide:
Forklift weight
Maximum load
Loading frequency
Number of trucks per day
Operating shifts
Provide:
Indoor temperature
Outdoor conditions
Rain exposure
Required sealing
Cleaning or corrosion conditions
For new projects, architectural or loading dock drawings can help coordinate dimensions before manufacturing begins.
For renovations, photographs and site measurements are often equally important.
A standard loading bay often includes a sectional door, dock leveler, dock shelter or seal, bumpers, vehicle restraint, and traffic lights.
No.
The equipment should reflect vehicle types, loading frequency, environment, and operational requirements.
There is no single best type.
Hydraulic levelers suit many standard warehouses.
Telescopic levelers provide more positioning flexibility.
Vertical levelers are particularly useful in selected controlled environments.
A mechanical dock shelter generally uses flexible curtains, while a dock seal uses compressible pads.
Facilities handling varied vehicle sizes often benefit from the flexibility of a shelter.
Dock seals can work well where vehicles are more consistent.
The bumper protects the building but also determines where the vehicle stops.
Truck position affects dock leveler overlap, shelter operation, and other equipment clearances.
Yes, depending on the control configuration.
Interlocking can help prevent the leveler from operating before the door reaches the correct position.
Ideally, during the building design stage.
Early coordination allows pit dimensions, door openings, structural requirements, electrical supply, and equipment clearances to be confirmed before construction is completed.
Loading dock design has a direct influence on how efficiently goods move between trucks and warehouses.
A successful loading bay begins with understanding the actual operating conditions:
Vehicle dimensions
Truck bed height range
Dock platform height
Forklift weight
Cargo load
Loading frequency
Warehouse traffic
Environmental requirements
From this information, the appropriate dock leveler can be selected.
Hydraulic dock levelers provide a practical solution for many standard warehouses. Telescopic levelers offer greater control when vehicle positions vary, while vertical dock levelers can support temperature-controlled and hygiene-sensitive operations.
Industrial sectional doors, dock shelters, dock seals, dock bumpers, vehicle restraints, traffic lights, and control systems should then be coordinated around the same loading bay.
The most important principle is to avoid treating these products independently.
The truck, dock bumper, shelter, door, dock leveler, restraint system, building structure, and forklift all interact during every loading cycle.
By designing them as one integrated loading dock system, modern warehouses can achieve smoother forklift movement, better vehicle compatibility, improved environmental protection, safer operations, and more reliable long-term performance.
