A loading dock is not simply a place where a truck stops beside a warehouse. It is a working interface between the building, trailer, forklift, cargo, employees, and several pieces of loading equipment.
A poorly planned dock may still look acceptable on a drawing but create problems once daily operations begin. The dock may be too high for some trailers, the door opening may be too narrow for loaded forklifts, the dock leveler may operate at an excessive angle, or the dock shelter may not match the actual vehicle fleet.
These problems are difficult and expensive to correct after the warehouse is completed.

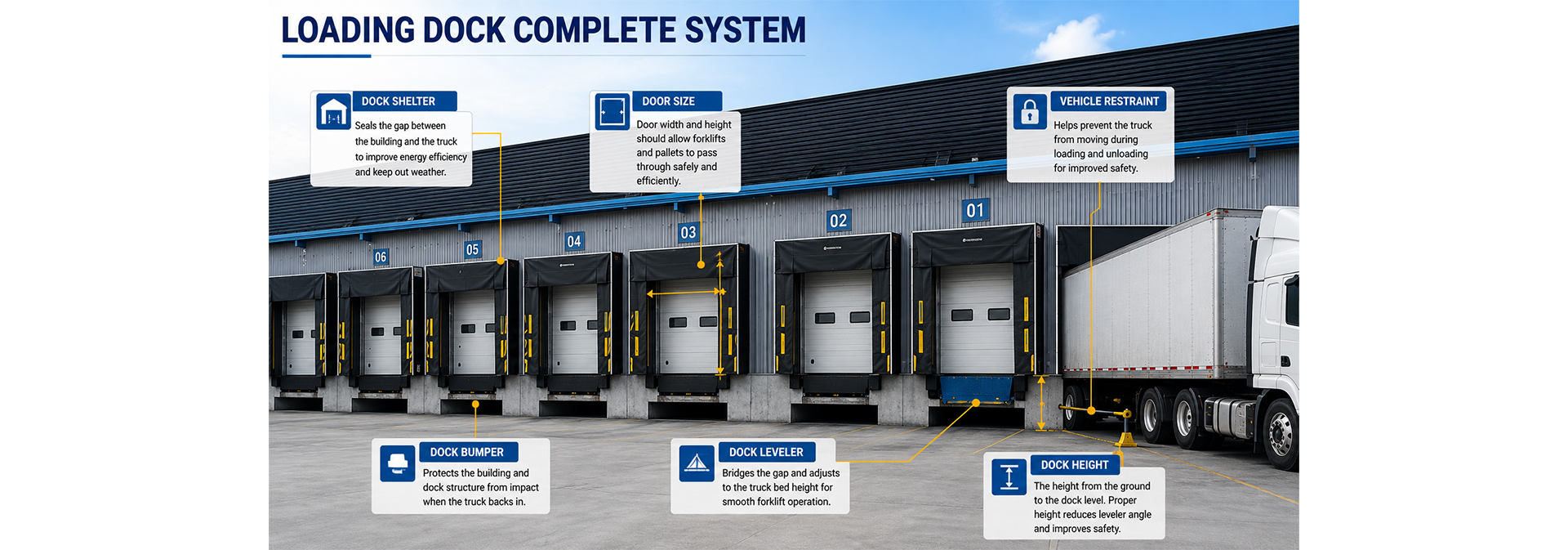

A better approach is to treat the loading dock as one complete system. Truck dimensions, dock height, door size, dock leveler type, capacity, pit construction, sealing equipment, trailer positioning, and safety devices should be considered together before final equipment is ordered.
One of the most common mistakes in loading dock planning is selecting equipment before understanding the vehicles that will actually use the dock.
Truck information affects almost every other decision.
Bed height influences dock leveler travel. Vehicle width affects the door opening and dock shelter. Rear trailer construction can affect dock leveler lip placement and vehicle restraint compatibility.
Do not design the dock around only one “standard truck.”
A warehouse receiving vehicles from several carriers may handle trailers with significantly different bed heights depending on vehicle type, suspension, loading condition, and trailer design.
The most useful information is therefore:
Lowest expected trailer bed height
Highest expected trailer bed height
Most frequently used trailer bed height
Vehicle width
Rear trailer dimensions
Bumper and rear impact guard position
Special rear structures
Frequency of each vehicle type
The difference between dock floor height and trailer bed height determines the working angle of the dock leveler.
If the trailer is much lower than the dock, the platform slopes downward. If the trailer is considerably higher, the platform slopes upward.
A large difference can create a steeper transition for forklifts, particularly when they carry long pallets, low-clearance equipment, or unstable cargo.
The objective is therefore not to make the dock leveler compensate for every imaginable vehicle. It is to design the dock around the real vehicle fleet.
A warehouse handling standard trailers, refrigerated trucks, smaller delivery vehicles, and other vehicle configurations may not be able to serve every truck efficiently from one identical dock position.
In these situations, several approaches can be considered.
Different dock bays may be assigned to different vehicle groups. A dock leveler with a wider usable working range may be selected. Where more precise lip placement is needed, a telescopic dock leveler may be considered.
The important point is to identify the vehicle variation before construction begins.
Dock height is the vertical distance between the finished warehouse floor and the outside vehicle approach area.
It is one of the most important dimensions in loading dock design because it establishes the basic relationship between the building and trailer.
The closer the warehouse floor is to the typical trailer bed height, the less vertical correction the dock leveler needs to provide.
This creates a smoother transition for forklifts and reduces unnecessary slope during loading.
A dock designed much higher or lower than the regular fleet forces the dock leveler to compensate during almost every operation.
Published standard dimensions can provide a useful starting point, but they should not replace real project data.
A food distribution warehouse handling refrigerated trailers may have a different fleet from a manufacturing facility receiving standard freight vehicles.
For new construction, collecting representative vehicle measurements before civil work begins is far easier than correcting dock height after the building has been completed.
Smaller delivery trucks often have lower beds than full-size warehouse trailers.
Trying to make one standard-height loading dock accommodate a very large height range can create uncomfortable dock leveler angles.
Where smaller vehicles form a significant part of the operation, a dedicated lower loading position or another suitable loading solution may be more practical than forcing one dock bay to serve every vehicle.
Loading dock door dimensions should not be based only on trailer width.
The actual object passing through the doorway is usually a forklift carrying a pallet or another load.
Door width should allow enough clearance for the normal forklift and load combination without making the opening unnecessarily large.
Important factors include:
Forklift overall width
Pallet width
Product overhang
Cargo shape
Vehicle approach angle
Driver visibility
Dock shelter position
A forklift that approaches the door in a straight line may require less side clearance than one that must turn immediately before entering the trailer.
A narrow opening can make operators slow down every time they cross the threshold. Over time, it can also increase the likelihood of contact with the door frame, shelter, or load.
However, simply making the opening much wider is not always the best solution.
A larger opening increases the area exposed to outdoor conditions when the door is open and may require a larger door and shelter system.
The correct door size should provide practical clearance without unnecessary oversizing.
Door height should be checked against the tallest normal combination of forklift, mast position, and cargo.
Checking the product height alone may not be enough.
A pallet may fit through the opening while part of the forklift mast or protective structure requires greater clearance.
Changing a finished industrial opening later can require structural modification and replacement of the door system.
If the warehouse has a realistic plan to handle taller products in the future, this should be considered during design.
However, future-proofing should be based on plausible operating needs rather than making every doorway as large as possible.
Door dimensions and door type are separate decisions.
The appropriate industrial door depends on traffic frequency, insulation requirements, available headroom, environmental conditions, and how the dock operates when a trailer is in position.
Industrial sectional doors are commonly used at loading docks because they provide a rigid closure while using vertical and overhead building space.
When no trailer is being loaded, the door can close the warehouse opening. During loading, it rises clear of the forklift path.
Insulated sandwich panels and perimeter seals can also support better closed-door environmental separation.
Sectional doors can use different lift arrangements depending on available headroom.
Before selecting the track system, check:
Roof beams
Pipework
Lighting
Cable trays
Sprinkler systems
Structural columns
Other equipment above the opening
The correct door cannot be designed from width and height alone.
Where the doorway is used repeatedly instead of remaining open during a long loading sequence, a high speed door may be more appropriate.
Shorter operating cycles can reduce forklift waiting and unnecessary doorway exposure.
This is especially relevant for internal logistics routes or other openings where traffic frequency is much higher than at a conventional truck bay.

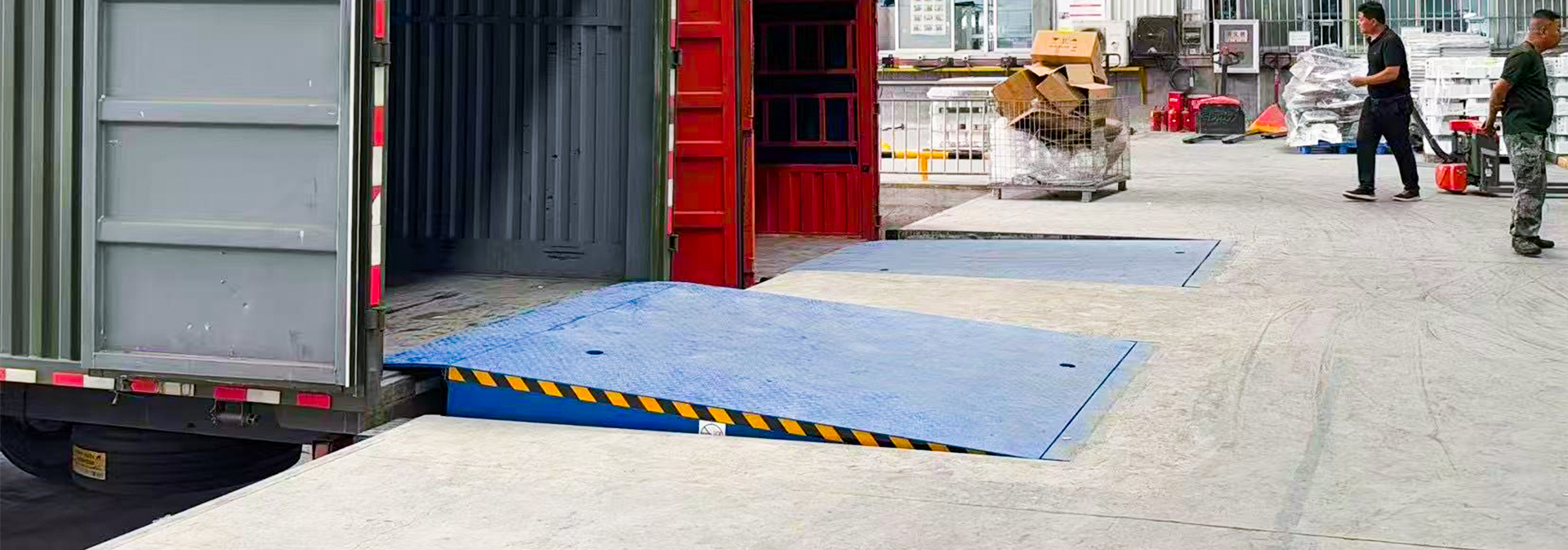

The dock leveler creates the working bridge between the warehouse floor and trailer bed.
Choosing the correct type involves more than selecting a platform that physically fits the pit.
Truck variation, loading frequency, forklift weight, cargo, lip requirement, control method, and existing building conditions should all be considered.
Hydraulic dock levelers use a powered hydraulic system to move the platform and lip.
Push-button operation reduces physical handling and provides a repeatable operating sequence.
For warehouses with regular or frequent truck activity, hydraulic operation can simplify daily dock use.
Hydraulic dock levelers are particularly relevant where:
Loading occurs regularly throughout the day
Forklift traffic is significant
Push-button operation is preferred
Several employees use the same dock
Integration with other dock controls is required
The facility wants a standardized loading sequence
The operating method should still be selected independently from rated capacity. A hydraulic mechanism does not automatically mean the leveler has a higher structural capacity.
Mechanical dock levelers use a spring-assisted or counterbalanced operating mechanism without a hydraulic power unit.
They can be practical where the loading dock is used less frequently and where powered operation provides limited additional value.
Mechanical systems may be considered where:
Loading frequency is relatively low
Electrical supply at the dock is limited
A simpler non-hydraulic system is preferred
Extensive equipment integration is unnecessary
The project needs to control initial investment
The decision should be based on actual dock usage rather than assuming that every modern warehouse automatically requires hydraulic operation.
A telescopic dock leveler uses an extendable lip rather than only a hinged lip.
The operator has greater control over how far the lip projects onto the trailer bed.
This can be useful where trailer configurations vary or where more precise positioning is required.
They are worth considering for mixed vehicle fleets, refrigerated logistics, container-related loading, or applications where available trailer-bed contact needs to be managed more precisely.
The additional lip control should solve a real loading requirement rather than being selected only because the system is more advanced.
An Edge-of-Dock Leveler is installed at the dock edge rather than inside a conventional full pit.
It can provide a practical retrofit option for existing warehouses where major pit construction is undesirable.
However, its available working range is normally more limited than a full-size pit-mounted leveler.
It should therefore be selected only after confirming dock height, trailer bed range, forklift requirements, and the intended loading operation.
One of the most important dock leveler selection mistakes is considering only the weight of the cargo.
During loading, the platform supports much more than the pallet.
The loading condition can include:
Forklift
Operator
Pallet
Cargo
Attachments
Dynamic movement across the platform
A forklift itself may represent a substantial proportion of the load.
For this reason, a dock leveler should not be specified simply because a customer says the cargo weighs a certain number of tons.
A forklift does not remain stationary in the center of the platform.
Its wheel loads move across the deck. It may accelerate, brake, and change direction.
These actions create forces that differ from simply placing a stationary load on the leveler.
Rated capacity and structural design should therefore be evaluated for the actual vehicle and loading process.
For heavier operations, buyers should also consider platform construction, support beams, hinges, lip structure, welding quality, and the complete supporting frame.
Choosing a higher number on the capacity specification without reviewing the structural design does not automatically create a suitable heavy-duty loading system.
For pit-mounted equipment, the pit and dock leveler should be designed together.
Building the pit first and selecting the equipment later is a common source of installation problems.
Pit dimensions influence whether the leveler sits correctly within the warehouse floor and whether the platform has enough space to operate.
The selected model should be confirmed before the final civil drawing is issued.
Platform length affects the transition angle between the dock and trailers at different heights.
Where the vehicle height range is larger, the required platform geometry should be evaluated carefully.
When the leveler is stored, its deck should align correctly with the surrounding warehouse floor.
An incorrectly constructed pit may leave the deck too high or too low, creating an uneven transition even before a trailer arrives.
Replacing an existing dock leveler is different from designing a new project.
The existing pit may have been built for another manufacturer or another model.
Accurate measurements, photographs, front beam details, and surrounding concrete conditions should be reviewed before the replacement equipment is produced.

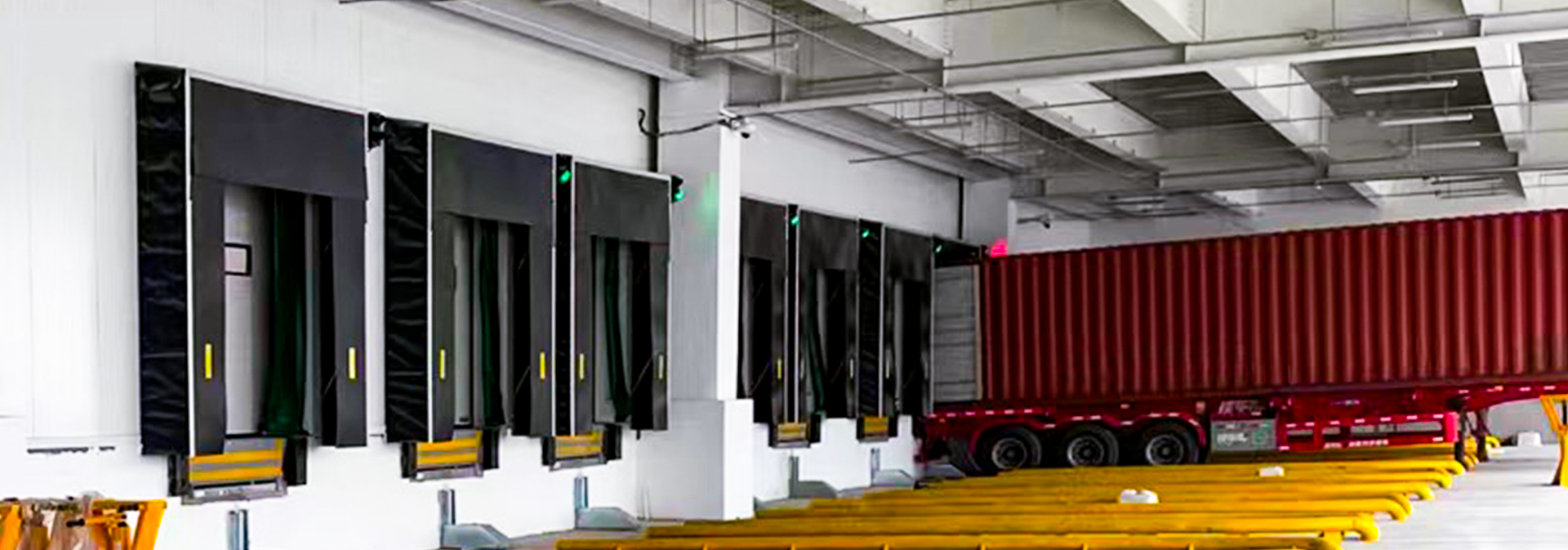

Dock shelters and dock seals reduce the open area between the building and trailer during loading.
Their effectiveness depends heavily on vehicle dimensions and parking position.
A mechanical dock shelter uses flexible side and top curtains around the trailer opening.
Its relatively flexible configuration makes it suitable for many general warehouses and logistics facilities handling a range of vehicle sizes.
A shelter should not be selected only from the building door size.
Trailer width, trailer height, dock height, bumper projection, and required curtain overlap all influence the final dimensions.
A shelter that is too large may provide insufficient contact, while one that is too small can experience excessive trailer interference.
Inflatable dock shelters use air-filled side and top sections that extend toward the trailer after it has parked.
They are particularly useful where improved sealing around different trailer dimensions is important.
This can include cold chain, food, pharmaceutical, and other temperature-controlled loading areas.
A foam dock seal compresses against the rear of the trailer.
It can provide an effective solution where the vehicle fleet is relatively consistent.
When trailer dimensions vary widely, however, the amount and position of foam compression can change significantly.
Fleet variation should therefore be checked before selecting this type of system.
Many loading dock components depend on where the trailer finally stops.
This position influences the dock leveler, shelter, bumpers, door opening, and vehicle restraint.

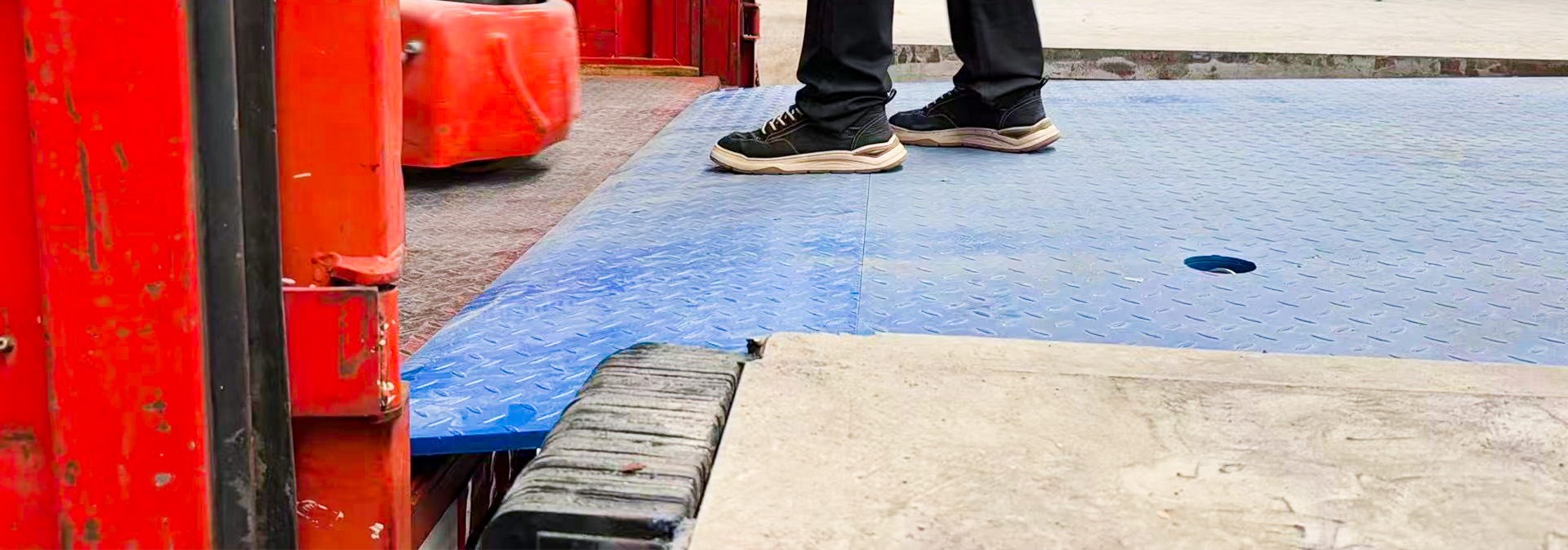

Dock bumpers absorb contact when the trailer reverses toward the building and establish the working distance between trailer and dock face.
Their projection should therefore not be treated as an isolated accessory dimension.
If the bumper projects farther from the dock, the trailer also stops farther away.
That can change:
Dock leveler lip overlap
Shelter contact
Trailer-to-building distance
Vehicle restraint engagement geometry
Bumpers should therefore be considered during the original dock layout rather than selected after all other equipment has been finalized.
Trailer movement during loading can affect the relationship between the dock leveler and vehicle.
Where the loading operation requires greater control of trailer position, a vehicle restraint can become part of the dock safety system.
The dock leveler bridges the height and distance between the building and trailer.
The vehicle restraint helps control trailer movement.
One does not replace the other.
Interior and exterior traffic lights can communicate whether loading is taking place or whether the vehicle may depart.
However, lights themselves do not physically secure the trailer.
Where physical trailer control is required, the restraint and communication system should be treated as separate but coordinated functions.
At more integrated loading docks, equipment can follow a structured sequence.
The trailer arrives, positioning is confirmed, the restraint engages where applicable, loading access is enabled, the dock leveler is deployed, loading takes place, and the sequence is reversed before the trailer leaves.
The exact control logic depends on the facility and selected equipment, but the purpose is always the same: make the operating condition clear to both warehouse employees and the driver.
There is no single equipment package that is ideal for every industry.
The best loading dock system depends on traffic, environmental conditions, vehicle variation, cargo, and operational priorities.
General warehouses usually need practical loading equipment with suitable capacity, reliable door closure, basic weather protection, and clear operating procedures.
A typical configuration may combine a hydraulic dock leveler, industrial sectional door, mechanical dock shelter, dock bumpers, and appropriate communication equipment.
Cold storage loading docks place greater importance on controlling the interface between the refrigerated building and trailer.
Door insulation, shelter sealing, trailer position, and loading sequence become increasingly important.
Instead of evaluating the door or shelter independently, consider how long the warehouse opening remains exposed and where air can enter around the trailer.
Depending on the project, an insulated door, inflatable dock shelter, telescopic or vertical dock leveler, and vehicle restraint may form part of the solution.
Higher truck frequency makes operating convenience and equipment coordination more important.
Hydraulic dock levelers, appropriate industrial doors, vehicle restraints, dock shelters, bumpers, and traffic communication can help create a more consistent loading process.
The final equipment should still be matched to the actual number of trailers and forklifts rather than assuming every logistics center has the same requirements.
The most expensive loading dock mistakes often begin before any equipment is installed.
Choosing the door, leveler, bumpers, shelter, and restraint from separate assumptions can create dimensional conflicts.
The complete loading position should be reviewed together.
A single vehicle cannot represent a mixed fleet.
Use the actual lowest, highest, and most common trailer dimensions wherever possible.
The forklift and dynamic loading conditions also need to be considered.
Pit drawings should follow the confirmed equipment model, not the other way around.
More clearance is useful only when actual traffic needs it.
Oversized openings increase equipment size and environmental exposure.
Future planning is useful when expansion is realistic.
However, future-proofing should mean providing reasonable capacity and flexibility, not simply selecting the largest possible equipment for every dock.
A supplier can provide a much more useful recommendation when the project information describes the complete loading operation.
Provide:
Trailer types
Lowest and highest bed heights
Typical trailer width and height
Rear trailer photographs
Bumper or rear impact guard information
Vehicle frequency
Provide:
Forklift model or weight
Maximum loaded forklift weight
Pallet dimensions
Maximum cargo dimensions
Typical cargo weight
Loading frequency
A request such as “We need a 10-ton dock leveler” does not explain how that capacity was calculated.
Providing forklift and cargo information allows the equipment supplier to review whether the requested capacity is appropriate for the real loading condition.
Provide:
Dock height
Door opening dimensions
Available installation space
Pit dimensions for existing facilities
Wall and concrete structure
Finished floor level
Power supply
Interior and exterior photographs
Also explain whether the facility requires:
Temperature control
Stronger dock sealing
Vehicle restraint
Traffic lights
Safety barriers
Special corrosion protection
Integration between dock equipment
This allows the complete loading dock to be evaluated rather than quoting individual products without understanding how they will work together.
Before confirming the project, check four groups of information.
Do the dock height, leveler working range, shelter, bumpers, and restraint match the actual trailer fleet?
Does the opening provide enough clearance, and does the leveler capacity reflect the complete loaded forklift condition?
Are the pit, structural support, headroom, floor, electrical supply, and equipment positions confirmed?
Do loading frequency, environmental requirements, trailer control, driver communication, and maintenance access match the selected configuration?
The final check should not ask only whether each component meets its own specification.
It should ask whether all components can operate together at the same loading position without dimensional conflict or an unclear operating sequence.
That system-level review is often what separates a loading dock that merely fits on the drawing from one that works reliably in daily warehouse operations.
Good loading dock planning begins with the vehicles and loading process, not with a product catalog.
Truck bed heights determine the required dock geometry and leveler range. Forklift and cargo dimensions influence door opening and leveler capacity. Dock bumpers establish trailer position. Shelters and seals depend on the relationship between the trailer and building. Vehicle restraints and traffic signals support a more controlled loading sequence.
For new construction, these decisions should be made before the dock and pit are finalized. For existing warehouses, accurate site measurements and representative vehicle information should be collected before replacement equipment is ordered.
When dock height, door size, dock leveler, sealing equipment, trailer position, and safety systems are planned together, the loading dock becomes a coordinated working system rather than a collection of individual products.
