E-commerce fulfillment centers are built around movement. Products arrive at receiving docks, travel to storage or picking areas, move through sorting and packing zones, and finally reach outbound staging and shipping areas.
Unlike a conventional warehouse where many goods may remain in storage for long periods, an e-commerce facility often moves a large number of individual orders through several internal processes within a short period of time.
This makes doorway performance more important than it may first appear.
A door located on a busy forklift or material-transfer route can become a repeated stopping point. If it opens too slowly, responds too late, stays open unnecessarily, or requires frequent manual intervention, the delay is repeated every time traffic reaches the opening.
High speed doors are useful in these environments because they can support faster internal movement while still separating different operational areas when traffic is not passing through.
However, selecting the right high speed door requires more than comparing opening speed. Traffic type, sensor logic, doorway dimensions, impact risk, environmental conditions, safety protection, and maintenance requirements all influence how well the door performs in a fulfillment center.
The internal traffic pattern of a fulfillment center is usually more complex than a simple warehouse entrance.
Forklifts, pallet trucks, employees, carts, conveyors, and automated equipment may all move between different areas. Some routes operate steadily throughout the day, while others become extremely busy during receiving, picking, or dispatch peaks.
A doorway on one of these routes must respond to the traffic without becoming a bottleneck.
An order may move through receiving, storage, picking, consolidation, packing, staging, and outbound operations before leaving the facility.
Every transfer between these areas creates another point where people or equipment may need to pass through a door.
Waiting several seconds at one door may not appear important.
But if the same opening is crossed repeatedly by forklifts or carts throughout a shift, the accumulated waiting time can become much more noticeable.
This is why door performance should be evaluated according to traffic frequency rather than looking at one opening cycle in isolation.
A fulfillment center may appear relatively calm during part of the day and then experience concentrated movement when inbound goods arrive or outbound orders are prepared for carrier collection.
Door selection should therefore consider the busiest realistic traffic period.
A system that performs adequately during average traffic may still create queues during the periods when warehouse efficiency matters most.
A forklift approaching at a steady speed needs different activation timing from an employee walking through the same opening.
Automated equipment may require another form of communication entirely.
The door and control system should therefore be designed around the actual users of the doorway.
The most direct benefit of a high speed door in an e-commerce facility is reducing unnecessary waiting at frequently used openings.
This does not simply mean selecting the highest possible opening speed. The complete sequence from traffic detection to full clearance and final closing determines how efficiently the doorway works.
If a forklift reaches the door before the curtain has opened sufficiently, the operator must brake and wait.
A correctly positioned activation device can trigger the door while the vehicle is still approaching.
A faster-moving forklift normally requires earlier activation than a pedestrian.
If detection occurs too late, even a fast door may still create waiting. If it occurs too early, the door may remain open unnecessarily before the vehicle arrives.
Sensor distance and opening speed should therefore be commissioned together.
Not every forklift approaches a door in a straight line.
Some entrances are positioned immediately after a turn, near pallet staging areas, or beside another traffic lane. These conditions can affect when the sensor detects the vehicle.
Testing the final sensor configuration with actual warehouse traffic is more useful than setting the detection field only from the installation drawing.
Fast opening provides little benefit if the door remains open long after traffic has passed.
The closing delay should allow the passage to clear while still returning the doorway to the closed position promptly.
During peak periods, several forklifts may approach the same doorway within a short time.
The system should recognize continuing traffic so that the door does not begin closing between vehicles unnecessarily.
This is usually more effective than simply extending the closing timer for every operating condition.
Leaving the door open for long periods may appear to make traffic easier, but it removes much of the benefit of installing a high speed system.
Correct sensor logic should keep the opening available when traffic is present and allow it to close when the route becomes clear.
Not every doorway in an e-commerce warehouse requires a high speed door.
The greatest value usually comes from installing them at openings where repeated movement, environmental separation, or traffic coordination creates a clear operational need.
Storage and picking zones may experience regular movement of replenishment forklifts, carts, and employees.
A high speed door can separate these areas without creating a major interruption in the transfer route.
Picking locations must be replenished as inventory moves through the facility.
Where replenishment vehicles repeatedly cross the same doorway, rapid automatic activation can reduce unnecessary stopping.
The closed door also creates a visible and physical division between two operational zones.
This can support airflow management, cleaner traffic boundaries, and more structured warehouse layouts where different activities occur close together.
Sorting and packing departments often sit between the storage system and outbound staging.
Goods may arrive continuously from several parts of the facility, making these routes particularly sensitive to congestion.
A high speed door can help maintain separation without forcing material-handling equipment to wait during every transfer.
Outbound areas often experience concentrated movement as completed orders are grouped for specific carriers, routes, or dispatch times.
Door traffic can therefore increase significantly during short windows.
A door used relatively lightly during the morning may become heavily used when outbound pallets or carts begin moving toward shipping areas.
The drive, curtain, sensors, and control logic should be selected with these peak conditions in mind.
Outbound staging areas are often crowded with pallets, cages, carts, or completed orders.
The doorway and detection field should remain clear enough that temporary stored goods do not constantly activate the door or block its safety devices.

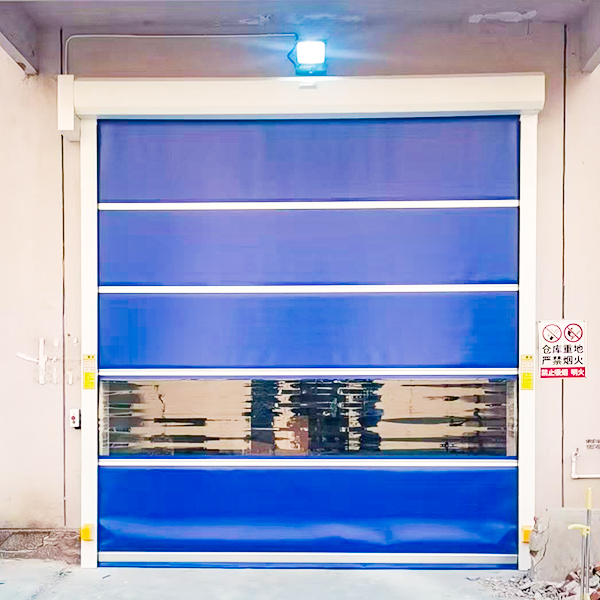

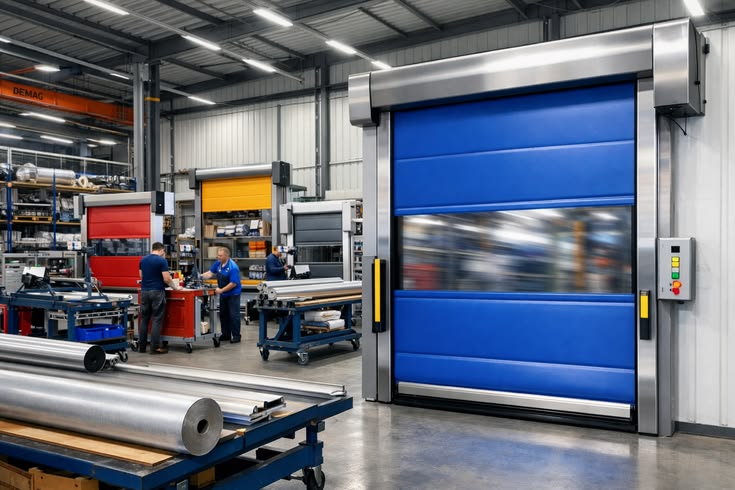

Flexible PVC fabric high speed doors are well suited to many protected internal warehouse openings.
Their lightweight curtain allows rapid vertical movement and makes them practical where the main requirement is frequent access between operational zones.
Internal fulfillment areas generally have less wind and weather exposure than exterior warehouse entrances.
This allows a flexible curtain system to focus primarily on rapid access, separation, and automatic operation.
A standard interior fabric door is not automatically suitable for every part of the building.
Strong pressure differences, large openings, significant airflow, or exterior exposure may require another structure.
The environment should be evaluated before selecting the curtain and guide system.
Where traffic approaches from both sides, transparent viewing sections in the curtain can improve visibility through the closed doorway.
They can help employees see approaching traffic but should not replace safety sensors or established traffic procedures.
Forklift impact is a practical concern in busy fulfillment centers.
A pallet may project beyond the vehicle body, an operator may misjudge the opening, or traffic may approach the doorway during a congested period.
A self-repairing zipper high speed door can be useful where occasional curtain contact is considered likely.
In a zipper-style system, the flexible curtain can leave the guide during certain impacts rather than transferring the entire force into rigid door components.
The curtain can then re-enter the guide during a subsequent operating cycle.
A conventional damaged curtain may require technicians to reset or repair the door before traffic can resume.
Where the self-repairing system successfully restores the curtain, the doorway can return to operation more quickly after minor contact.
For fulfillment centers where one blocked route can affect several downstream processes, reducing this type of interruption can be valuable.
The guide system still needs correct alignment and regular inspection.
Dirt, damaged profiles, packaging material, or physical deformation can interfere with curtain recovery.
A repeated impact at the same doorway should also be investigated because it may indicate a poor traffic layout rather than simply a door problem.
Some fulfillment and distribution facilities contain larger material-transfer openings or entrances exposed to greater airflow.
A folding high speed door uses a vertically stacking curtain structure that can provide greater stability for larger openings.
As door width and height increase, curtain stability and structural support become more important.
A door should not be selected by opening speed alone when a large surface area is exposed to airflow or pressure differences.
The wall structure, guides, curtain reinforcement, and available installation space should all be considered.
A large indoor opening with limited airflow may have different requirements from an opening near an exterior wall or pressure-sensitive area.
The supplier should understand the actual conditions before recommending a folding configuration simply because the doorway is large.
Not every high speed door in an e-commerce facility is located indoors.
Some warehouses require faster access at exterior entrances where the door must also provide a rigid closed barrier.
A high speed spiral door uses rigid insulated panels and a guide system designed for rapid vertical movement.
Compared with a flexible fabric curtain, rigid panels provide a more substantial closed barrier and can offer better thermal separation.
This can be useful at exterior entrances where fast vehicle access must be balanced with weather exposure and insulation requirements.
Wind exposure, opening dimensions, building height, surrounding structures, and local operating conditions all influence the door design.
An exterior high speed door should be selected for the actual site rather than assuming that any high speed model can simply replace an internal fabric door.
Rigid high speed doors are heavier than flexible fabric doors.
The surrounding wall and steel structure must provide suitable fixing points for the guides, drive system, and other components.
Lightweight wall panels may require additional structural support.
Automated guided vehicles and autonomous mobile robots are increasingly used in modern material-handling systems.
For a door to work effectively on an automated route, the vehicle and door need a reliable method of exchanging operating signals.
An automated vehicle cannot rely on visual judgment in the same way as a human forklift operator.
The control sequence should ensure that the door reaches the required open position before the vehicle enters the doorway.
Where the control system allows integration, the door can provide a confirmation signal once it has reached the required opening position.
The automated vehicle or warehouse control system can then allow movement through the opening.
This creates a clearer sequence than relying only on a simple activation pulse.
If the door does not reach its normal open position, the vehicle should not continue automatically into the opening.
The project should define how door faults, sensor faults, or communication interruptions are handled within the automation logic.
Automated traffic routes are often carefully planned.
A sensor field extending into another AGV lane may activate the door for vehicles that do not intend to pass through it.
Door sensors and automation signals should therefore be designed together with the traffic map.
Fulfillment centers often contain areas where warehouse employees and powered equipment share nearby routes.
A high speed door can improve movement, but it does not independently solve traffic-management problems.
A large sensor field designed for forklifts may react every time an employee walks near the doorway.
Where traffic patterns allow it, different activation methods can be used for different users.
For example, vehicle detection can be combined with a separate pedestrian control or designated personnel entrance.
Pallet stacks, racking, equipment, or temporary order staging can create blind areas near doorways.
The traffic route should allow operators and pedestrians enough visibility to react before reaching the opening.
Mirrors, warning indicators, floor markings, or physical separation may be useful where visibility is limited.
High speed doors move quickly, so the safety system must be designed around the vehicles, employees, and loads that actually use the opening.
Simply adding one sensor without considering the traffic geometry may leave areas of the doorway insufficiently monitored.
A photocell monitors a defined beam across the opening.
If the beam is interrupted while the door is closing, the control system can respond according to the selected safety logic.
A pallet may extend beyond the vehicle or sit higher than a low detection beam.
Facilities handling irregular or oversized goods should evaluate whether one photocell provides enough detection coverage.
Dust, impact, misalignment, or stored goods around the doorway can interfere with sensor performance.
Maintenance should include checking both the device and the area it is intended to monitor.
Where the opening carries mixed traffic or irregular loads, a light curtain can monitor a larger vertical area.
Broader detection can reduce blind zones within the doorway, although correct installation and unobstructed sensor lines remain necessary.
A safety bottom edge can respond if the lower part of the door contacts an obstruction during closing.
It should complement the non-contact detection system rather than being treated as the only protection at a busy traffic route.
E-commerce fulfillment centers are not always temperature-controlled, but many use HVAC systems and maintain different working conditions between operational areas.
Some facilities also handle goods that benefit from more controlled temperature or cleaner storage conditions.
When a doorway connects two differently conditioned spaces, air moves through the opening while the door is open.
A high speed door reduces the duration of this direct connection.
A fast door that opens unnecessarily or remains open for a long delay may still allow substantial air exchange.
Sensor accuracy and closing settings therefore influence environmental performance as much as maximum opening speed.
Side guides, bottom contact, and surrounding installation conditions determine how much air can continue moving through the opening when no traffic is present.
Door speed and closed-door sealing should be evaluated as separate but related factors.
Packing areas, storage zones, and material-handling routes may experience different levels of dust and airborne debris.
Keeping the door closed between traffic movements can help reduce unrestricted transfer between these areas.
The door should support the facility’s cleaning and environmental procedures rather than being presented as an independent contamination-control system.
The motor and curtain are only part of a high speed door.
The controller determines how the door accelerates, where it stops, how long it remains open, how sensors are interpreted, and how the system communicates with external equipment.
Opening height, closing delay, activation logic, and operating behavior can be configured according to the project.
These settings should be established during commissioning using real traffic whenever possible.
If normal forklifts require less than the maximum clear opening height, the door may be configured to open only to the required operating position where the control system supports this function.
This can reduce unnecessary vertical travel while maintaining suitable clearance.
The fastest possible setting should not automatically be used.
Door dimensions, traffic speed, curtain stability, sensor response, and operating environment should determine the final configuration.
A fulfillment center may need the door to connect with AGV controls, access systems, traffic lights, conveyors, or other automation.
Integration should have a clear operational purpose.
Adding complex connections that do not improve the traffic sequence can increase commissioning and maintenance requirements without providing meaningful benefits.
High speed doors operate repeatedly, which means small installation errors can become more noticeable over time.
Guide alignment, structural support, floor condition, electrical supply, and service access should be confirmed before the door is commissioned.
The guides and drive system need stable mounting points.
Concrete, structural steel, masonry, and insulated wall panels provide different fixing conditions.
Where the existing wall cannot support the required loads, additional steel reinforcement may be necessary.
The lower edge of the curtain closes against the finished floor.
An uneven threshold, slope, drain, or damaged surface can create a permanent gap or cause uneven contact.
These conditions should be addressed during installation instead of trying to correct them only through controller adjustments.
Motors, controls, sensors, guides, and other components need access for inspection and repair.
Warehouse racks, conveyors, cable trays, or future equipment should not be installed in a way that makes routine service unnecessarily difficult.
A high speed door may continue operating while small problems are already developing.
Regular inspection helps identify changes before they create unexpected downtime during an important warehouse shift.
New vibration, unusual noise, slower operation, or inconsistent closing positions can indicate mechanical or control issues.
Repeatedly resetting the controller without investigating the cause may allow a minor problem to become more serious.
Flexible curtains can tolerate certain minor contacts better than rigid structures, but every significant impact should still be checked.
Damage to guides, curtain edges, lower bars, or sensors can affect later operation even if the door initially continues working.
Packaging film, labels, cartons, dust, and temporary staging can interfere with detection devices.
Busy fulfillment centers should include door sensor areas in normal housekeeping procedures.
One common mistake is selecting the same high speed door for every opening simply because all of them are inside the same building.
An internal packing-area passage, AGV route, exterior forklift entrance, and large distribution opening may require very different structures and controls.
Another mistake is choosing only by maximum opening speed. Traffic efficiency also depends on sensor distance, opening height, closing delay, route geometry, and how closely vehicles follow one another.
Buyers should also avoid assuming that a self-repairing curtain removes the need to investigate repeated collisions. Frequent impact may indicate an inadequate opening size, poor forklift approach, blind corner, or badly positioned staging area.
Finally, complicated automation should not be added simply because the facility is highly automated. The door interface should solve a defined traffic or control requirement and remain practical to troubleshoot.
The selection process should begin with the actual function of the doorway.
Estimate how often the door is used during peak periods and identify whether the route is used by forklifts, employees, AGVs, carts, or mixed traffic.
This information helps determine the required operating speed, activation method, safety coverage, and control logic.
Provide the clear opening width and height, available side room, available headroom, wall structure, finished floor condition, and photographs of the surrounding area.
For exterior openings, weather and wind exposure should also be considered.
Determine whether the opening simply separates warehouse zones or whether it also divides areas with different temperatures, airflow, cleanliness, or pressure conditions.
This influences the curtain structure, sealing, and whether a flexible or rigid high speed door is more appropriate.
If the opening is narrow, traffic turns immediately before the doorway, or forklifts frequently carry wide loads, impact risk should be considered during selection.
A self-repairing zipper high speed door may be useful in certain internal applications, but the traffic layout should still provide sufficient clearance.
A useful quotation should be based on the application rather than only the door dimensions.
Provide the opening width and height, indoor or outdoor installation, wall structure, traffic type, largest vehicle and load dimensions, estimated peak traffic frequency, preferred activation method, safety requirements, electrical supply, and any required connection with AGV or warehouse control systems.
Site photographs are also valuable, particularly when the doorway is close to racks, conveyors, columns, pipework, or other equipment.
When the supplier understands the actual traffic route, it becomes much easier to recommend the appropriate door type and control configuration instead of quoting a standard high speed door that may not fit the operation.
High speed doors can provide real value in e-commerce fulfillment centers when they are installed at the right openings and configured around actual warehouse traffic.
Their main contribution is not simply faster movement. A well-planned door can reduce repeated forklift waiting, support smoother movement between operational zones, coordinate with automated vehicles, limit unnecessary open time, and reduce downtime caused by minor impact or poorly configured traffic control.
PVC fabric high speed doors, self-repairing zipper doors, folding high speed doors, and rigid spiral doors each serve different conditions. The correct choice depends on traffic frequency, opening size, environment, impact risk, automation requirements, and building structure.
For fulfillment centers, the most effective approach is to evaluate each doorway as part of the material-flow system. When the door type, sensors, safety devices, controls, and installation conditions all match the workflow, the high speed door becomes part of the fulfillment process rather than simply another piece of warehouse equipment.
