Two high speed doors with exactly the same opening size can receive very different quotations.
That does not necessarily mean one supplier is expensive and another is cheap.
A high speed door is not priced only by square meters. The final quotation reflects the type of door, where it will be installed, how often it operates, what environmental conditions it faces, which control and safety systems are included, and what installation work is required.
A simple PVC Fabric High Speed Door between two indoor warehouse zones is a very different product from a rigid Spiral High Speed Door installed on an exterior wall.
Before comparing prices, the more useful question is:
Are the suppliers actually quoting the same solution?
Width and height affect the amount of material used, but they do not tell the whole pricing story.
As a door becomes wider or taller, other components may also need to change.
A wider opening increases the area exposed to airflow and pressure.
Depending on the door structure, this can affect:
Guide strength
Curtain stability
Shaft size
Bottom structure
Motor selection
Frame reinforcement
A taller door also requires longer guides and more curtain or panel travel.
Two doors can have similar square-meter areas but require different structures.
A wide, low opening may need more reinforcement than a narrow, tall opening.
That is why a simple “price per square meter” comparison can be misleading.
The term High Speed Door includes several different products.
The correct door family should be selected before price is compared.

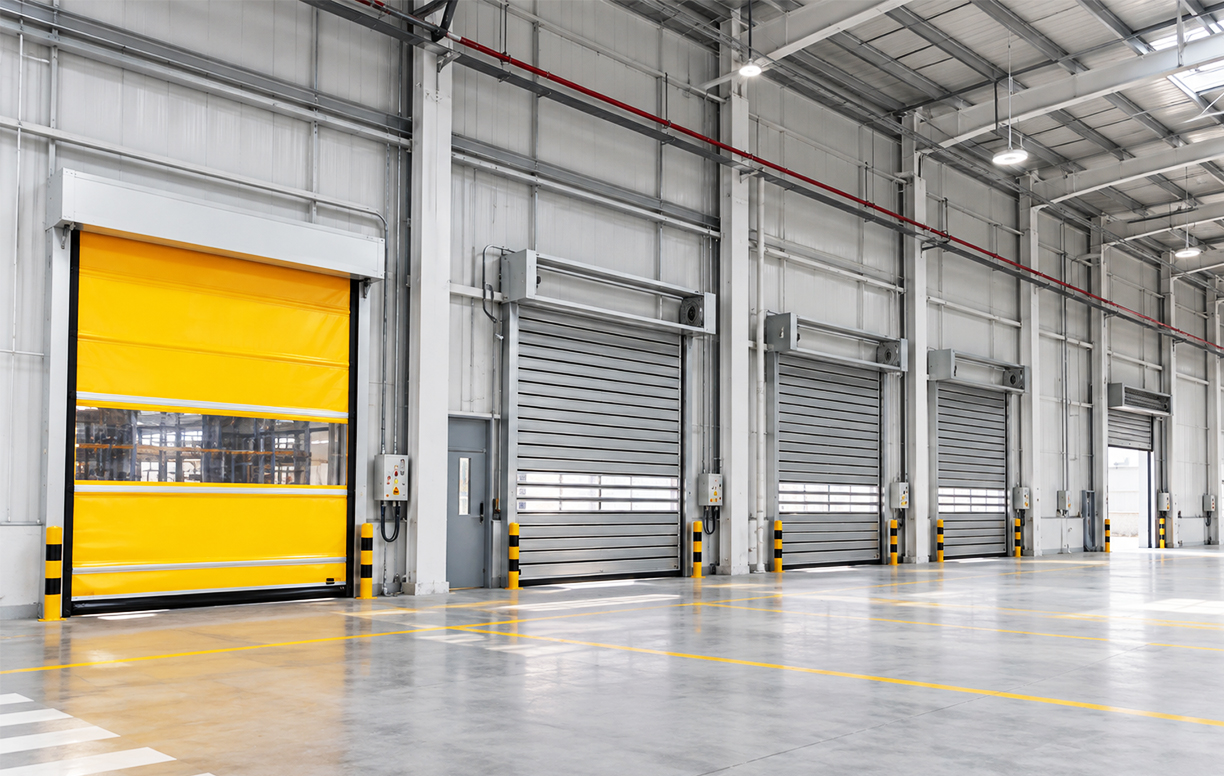

PVC Fabric High Speed Doors are mainly used for protected indoor passages.
Their flexible curtain and relatively lightweight structure make them one of the more economical high speed door solutions.
They are practical where the main requirement is:
Fast indoor access
Forklift traffic
Area separation
Basic airflow control
Straightforward installation
For many standard warehouse and production openings, this type already provides the required function.
A Zipper High Speed Door adds a self-repairing side guide system.
Its value becomes more obvious where forklifts or goods may occasionally contact the curtain.
The zipper structure helps the curtain return to its guide after certain light impacts.
At an important logistics passage, this can reduce manual intervention and downtime.
At a low-risk indoor opening, however, the additional configuration may not provide enough practical value to justify the higher price.
A Folding High Speed Door is used where a larger opening or stronger curtain stability is required.
The folding structure normally includes additional reinforcement and lifting components.
This increases the load on the motor and the amount of structural material required.
It should therefore be compared with a standard PVC Fabric Door only when both are genuinely suitable for the same opening.
A Spiral High Speed Door uses rigid aluminum panels instead of a flexible PVC curtain.
Its higher price comes not only from the panels, but also from the guide system, stronger frame, drive components, upper track structure, and more demanding installation requirements.
A Spiral Door may combine:
Fast access
Rigid closure
Better wind resistance
Insulated panels
Exterior protection
If the opening is on an exterior wall, this may justify the additional cost.
Installing the same Spiral Door on a simple indoor passage may be unnecessary.
Cold storage doors require a different pricing logic.
Depending on temperature and humidity, they may require insulated curtains, improved sealing, heated guides or sealing areas, and low-temperature-compatible components.
A chilled room and a low-temperature freezer should therefore not automatically receive the same quotation.
Location is one of the first questions a supplier should ask.
A protected warehouse passage normally faces less wind, rain, sunlight, and temperature variation.
A standard PVC Fabric or Zipper High Speed Door may therefore be sufficient.
An exterior opening may require:
Greater wind stability
More rigid construction
Improved weather resistance
Corrosion protection
Stronger fixing
Better insulation
If one supplier quotes an indoor PVC Fabric Door while another recommends a Spiral High Speed Door for the same exterior opening, the two prices should not be compared directly.
The difference comes from the application requirement, not simply from supplier margin.
Wind is especially important for exterior openings.
A flexible indoor curtain should not automatically be used where significant wind pressure is expected.
A larger opening exposes more surface area to pressure.
This may require stronger guides, panels, fixings, or supporting structure.
An entrance facing an open yard can experience different conditions from one protected by surrounding buildings.
A useful quotation should consider the actual opening dimensions, building condition, fixing structure, and site exposure.
Buyers should be cautious when two suppliers quote the same “wind-resistant door” without explaining how that performance is achieved.
Two doors may look similar in photographs while using very different materials.
Curtain cost can be influenced by:
Fabric construction
Coating quality
Thickness
Reinforcement
Vision windows
Special temperature requirements
A heavier curtain increases the load on the drive system.
For a normal indoor opening, using the thickest available material may add cost without improving the application significantly.
The curtain should match the actual working conditions.
Spiral High Speed Doors use more complex rigid panel systems.
Insulation, surface finish, special colors, and transparent sections can all affect the quotation.
Because the panels require more precise production than flexible curtain material, they naturally create a different price level.
The frame is another area where quotations that look similar may not actually be equivalent.
For normal dry industrial environments, galvanized or coated steel is a practical standard option.
It provides a balance between cost and durability.
Stainless steel may be selected for food processing, humid environments, washdown areas, or projects with higher corrosion-resistance requirements.
One quotation may provide stainless steel only for visible covers.
Another may include stainless steel guides, frame components, covers, fasteners, and other parts.
Both may be described simply as a “stainless steel high speed door,” while the actual material scope is very different.
The drive system has a major influence on how the door accelerates, stops, reverses, and responds to sensors.
Motor selection depends on door size, weight, speed, and mechanical structure.
A smaller motor is not automatically cheaper in the long term if it is poorly matched to the door.
At the same time, installing an unnecessarily large motor does not automatically improve performance.
A basic control system may support normal opening, closing, photocells, and automatic closing delay.
A more advanced system may include:
Radar integration
Interlocking
Access control
Warning lights
Customized operating logic
If a warehouse only needs one-way forklift access, a complex control system may not be necessary.
If two doors separate controlled areas and must operate as an interlock, the additional hardware and programming become justified.
How the door opens can significantly affect the final quotation.
These are simple and economical activation methods.
They can be practical where operators intentionally control the door.
Radar is useful for automatic forklift access.
It can improve traffic flow, but detection range and direction should match the actual approach route.
An induction loop can detect vehicles reliably, but installation may require floor cutting, wiring, and sealing.
The sensor itself is only one part of the cost.
Civil work or electrical preparation may be supplied by another contractor and may not appear in the door quotation.
Safety devices are not simply optional decorative accessories.
Different quotations may include very different safety scopes.
Photocells detect obstacles across a defined position in the opening.
A wireless safety edge provides additional protection if the lower part of the moving door contacts an obstacle.
Depending on the traffic condition, more extensive sensing systems may also be used.
When comparing quotations, ask:
What type of sensor?
How many?
Where are they installed?
What happens when they are triggered?
A door with one basic sensor should not automatically be treated as equivalent to a more complete configuration.
A door quotation does not always include all structural work required on site.
A lightweight PVC Fabric Door places less demand on the building than a rigid Spiral Door.
However, both require a stable mounting surface.
A heavy rigid door should not automatically be fixed directly to a sandwich panel if the panel cannot provide adequate support.
Additional steel reinforcement may be required.
One site may already have suitable columns and beams around the opening.
Another may require a complete supporting steel frame.
The same door can therefore result in different installed costs at different buildings.
Headroom and side clearance should be confirmed before production.
If enough space is available, the supplier can use the normal motor, guide, and upper structure arrangement.
Beams, pipes, ducts, lights, or other equipment may prevent a standard configuration.
The manufacturer may need to modify motor position, covers, tracks, or supporting structure.
Sometimes relocating a building obstacle is cheaper than customizing the entire door.
This should be evaluated before production.
Ordering more doors can improve unit pricing, but standardization matters.
If several doors share the same dimensions, curtain, frame, motor, and controls, production becomes more efficient.
Drawings, material preparation, programming, and testing can be repeated.
Ten doors with different sizes and specifications remain ten customized products.
Where practical, using the same motor, sensors, control system, and common specifications across a facility can reduce both initial production complexity and future spare-parts requirements.
A factory quotation and a delivered quotation represent very different scopes.
Long guide tracks, panels, shafts, and frames require suitable export packaging.
The door may not be extremely heavy, but its dimensions can occupy significant transport space.
EXW, FOB, CIF, DDU, and DDP quotations do not include the same services.
A low EXW price should not be compared directly with a delivered quotation.
Before deciding which offer is cheaper, confirm whether the price includes:
Export packaging
Local transport
Ocean or air freight
Customs-related services
Final delivery
Buyers can shorten the quotation process by providing useful project information from the beginning.
Provide:
Width
Height
Headroom
Side room
Wall structure
Site photos
Explain:
Indoor or outdoor
Wind exposure
Temperature
Humidity
Cleaning requirements
Explain whether the opening is used by:
Pedestrians
Forklifts
Vehicles
Automated equipment
Also describe traffic direction and frequency.
Confirm voltage, phase, and frequency before production.
This often helps more than asking for “the best configuration.”
For example:
Reduce forklift waiting
Recover after curtain contact
Resist outdoor wind
Control temperature
Improve corrosion resistance
Protect an exterior entrance
Once the main requirement is clear, unnecessary options can be removed and important ones are less likely to be missed.
A useful comparison starts with configuration, not price.
Make sure suppliers are quoting the same type of door.
PVC Fabric, Zipper, Folding, Spiral, and Cold Storage models should not be considered identical products.
Compare curtain or panel construction, frame material, finishes, windows, and structural reinforcement.
Confirm motor type, control system, activation method, sensors, safety edge, and other included equipment.
Confirm:
Packaging
Delivery terms
Structural steel
Electrical work
Installation
Commissioning
Warranty
Technical documentation
If two suppliers have not included the same door structure and scope, the final numbers do not represent the same purchase.
Align the specification first.
Compare price second.
High speed door prices are influenced by much more than width and height.
The biggest differences normally come from the door type, application environment, materials, drive and control system, safety configuration, building conditions, and project scope.
A standard PVC Fabric High Speed Door can be the right economical solution for a protected indoor passage.
A Zipper Self-Repairing Door may justify additional cost where accidental curtain displacement can interrupt an important forklift route.
A Spiral High Speed Door belongs in a different price category because it can provide rigid construction, exterior performance, insulation, and stronger wind resistance.
The most useful way to compare quotations is therefore not to ask:
“Which supplier has the lowest price?”
Ask instead:
“Are these suppliers quoting the same door for the same working condition, with the same configuration and responsibilities?”
Once those conditions are aligned, the true price difference becomes much easier to understand.
