When buyers compare high speed doors, opening speed is often one of the first specifications they look at. A higher number appears to mean shorter waiting times, better traffic flow, and greater energy savings.
In practice, however, maximum opening speed is only one part of door performance.
A door may look impressive during a factory test but still perform poorly in a real warehouse if the radar detects vehicles too late, the closing delay is too long, or the curtain moves aggressively near the top of the opening. A slightly slower door with better detection and smoother control may allow forklifts to pass more efficiently.
The correct speed is therefore not simply the highest speed available. It is the speed that matches the opening size, traffic pattern, door structure, safety system, and operating environment.
A product specification normally shows the maximum speed the door can reach under suitable conditions. The actual operating cycle also includes acceleration, deceleration, stopping, and automatic closing time.
A door does not reach maximum speed immediately after receiving an opening signal. It must accelerate from a stationary position, travel through the opening, and slow down before reaching the upper limit.
A door with smooth but responsive acceleration may feel faster than a door with a higher maximum speed but a long acceleration period.
This is especially noticeable on lower openings. The curtain may begin decelerating before it has enough travel distance to reach the advertised maximum speed.
For this reason, buyers should evaluate the complete opening time rather than looking only at one speed figure.
The door must slow down before reaching the fully open position. If it stops too suddenly, the curtain, shaft, belts, frame, motor, and mounting points receive additional mechanical stress.
Controlled deceleration may add a small amount of time to the cycle, but it helps reduce vibration, noise, and long-term component wear.
Many high speed doors open faster than they close.
Fast opening reduces waiting time and clears the passage quickly. Closing is normally more controlled because the door must monitor people, forklifts, carts, and objects that may remain inside the opening.
Increasing the closing speed may shorten the exposed time, but it can also create more frequent safety reversals if vehicles are still passing through.
A door that repeatedly closes too early and reverses may remain open longer overall than a door with a slightly slower, better-timed closing cycle.
A fast-opening door can still waste energy if it remains open for a long time after traffic has passed.
The automatic closing delay should match the actual passage time. A short delay may suit individual forklifts, while closely spaced traffic may require a longer hold-open period or more intelligent presence detection.
The correct opening speed depends heavily on what approaches the door and how that traffic moves.
A pedestrian passage, forklift route, automated vehicle path, and exterior truck entrance should not automatically use the same speed or sensor configuration.

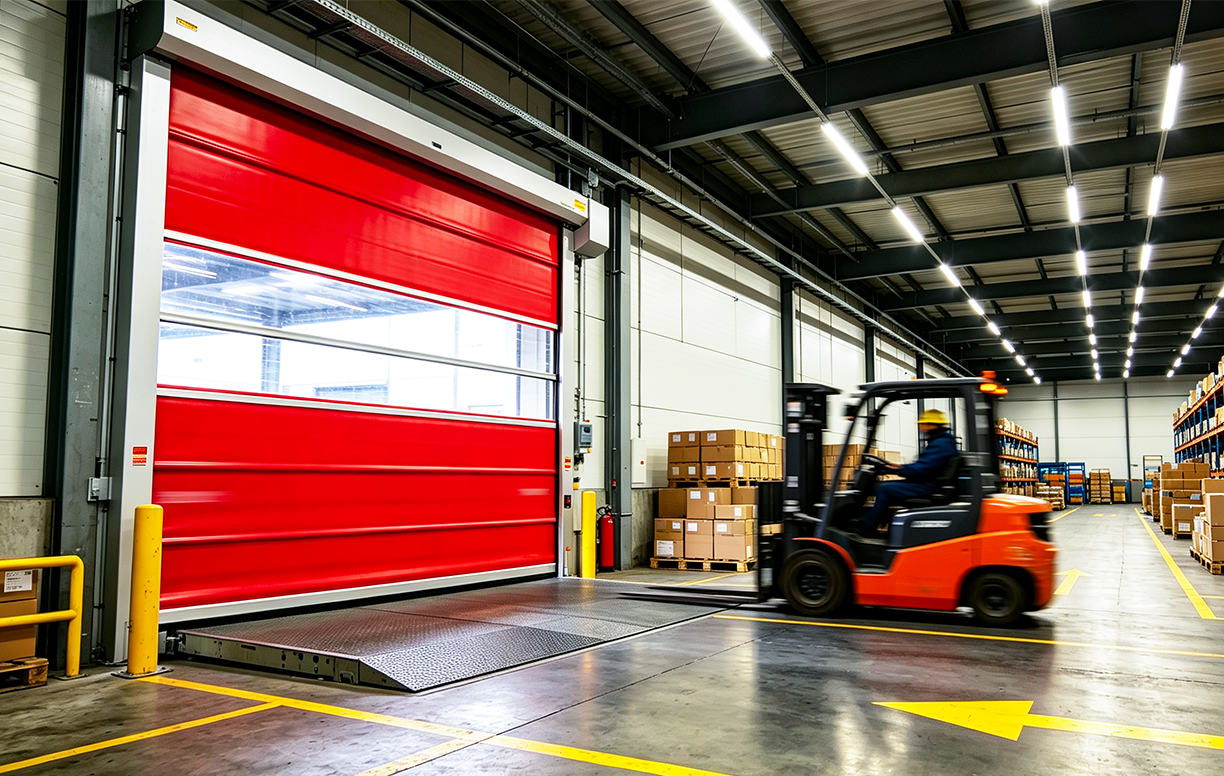

Forklift drivers should not need to stop directly in front of the door and wait for it to rise. The activation system should detect the vehicle early enough for the door to clear the required height before the forklift reaches the opening.
This does not mean the radar should detect everything moving near the door. The detection area should follow the actual approach route.
A slow-moving forklift may pass comfortably through a moderate-speed door. A faster vehicle needs earlier detection or a faster opening cycle.
If the radar detects both vehicles at the same distance, the faster vehicle has less time before reaching the opening. Increasing door speed may help, but adjusting the detection distance is often equally important.
The door does not always need to reach its fully open position before the forklift enters. It only needs to clear the highest part of the vehicle and load safely.
However, the required clear height should include a reasonable safety margin. Loads may extend above the forklift mast, and uneven floors can affect vehicle height during movement.
Pedestrian passages require stable, easy-to-understand door behavior. A very aggressive opening cycle may create unnecessary noise or air movement in areas where people work close to the opening.
The door should react early enough that employees do not walk into a moving curtain or hesitate in front of the opening.
A radar with an excessively wide detection field may open the door whenever someone walks past rather than through it.
This increases operating cycles, energy loss, and component wear. In some pedestrian applications, push buttons, card readers, or directional radar may provide better control than simple motion detection.
Mixed traffic creates more complex safety requirements because people and vehicles approach at different speeds.
The opening speed, detection zone, photocells, warning lights, and closing delay should be considered together. A high maximum speed cannot compensate for poor traffic separation or incomplete sensor coverage.
Automated guided vehicles and other unmanned systems depend on repeatable signals. The door must receive the command, open to the required height, and return a confirmation signal before the vehicle enters.
In this type of application, consistent response is often more important than achieving the highest possible opening speed.
The vehicle controller, door controller, safety system, and position feedback may exchange several signals before passage begins.
A very fast door will not improve traffic if the communication logic creates a long delay before movement starts.
Automated routes may operate throughout the day with little variation. The motor and control system must handle the required cycle frequency without overheating or losing position accuracy.
The selected speed should support long-term repeated operation, not only short demonstration cycles.
Door dimensions influence the time required to clear the opening and the amount of material the motor must move.
A speed setting that works well on a smaller internal passage may create vibration, curtain instability, or excessive mechanical load on a large industrial opening.
A taller curtain must travel a greater distance before the opening is completely clear. Increasing the speed can reduce this time, but the motor still needs sufficient distance for acceleration and deceleration.
The door may also need a stronger shaft, larger drive system, and more stable guide structure.
On a low opening, the door may accelerate and then immediately begin slowing down. The maximum speed shown in the specification may only be reached for a brief moment or not reached at all.
For these openings, responsive acceleration and correct sensor timing may influence performance more than the headline speed.
A tall curtain stores more material around the shaft or upper structure. Sudden stopping near the fully open position can create additional force in the curtain, drive, and frame.
The speed profile should become smoother near the upper limit rather than treating the entire travel distance as one constant-speed movement.
As the door becomes wider, the curtain is exposed to more airflow and has a greater tendency to flex.
High speed movement can increase this instability if the curtain, lower bar, guides, and frame are not designed for the opening size.
A standard interior PVC fabric door may be suitable for moderate openings with limited air pressure. Larger or more exposed openings may require a stacking door, reinforced curtain, or rigid spiral system.
Reducing the speed of an unsuitable door does not always solve the structural problem. The door type itself must match the opening.
A closed curtain receives wind across its full surface. As it opens, the pressure and airflow around the curtain change.
The control system should maintain stable movement during these changes. A speed that works in calm factory testing may need adjustment after the door is installed in an exposed building.
Different high speed door designs move in different ways.
Flexible PVC curtains, self-repairing zipper systems, stacking doors, rigid spiral doors, and cold storage doors cannot be judged by one universal speed standard.
PVC fabric doors use lightweight flexible curtains and are commonly installed on interior passages.
Their low curtain weight supports rapid movement, but the actual speed should reflect the curtain size, guide design, airflow, and traffic frequency.
In a controlled interior passage with limited wind pressure, a PVC high speed door can usually operate quickly and efficiently.
The main goal is often to reduce waiting time and separate production or warehouse zones. A responsive opening cycle combined with automatic closing can provide strong operational value.
Exhaust fans, ventilation systems, air curtains, and nearby loading entrances can push the flexible curtain sideways.
At very high speeds, this movement may become more noticeable. The solution may involve reducing speed, adjusting the guides, changing the curtain structure, or correcting the airflow around the opening.
Zipper doors use flexible curtain edges that reconnect with the guides after certain impacts.
They are often selected for busy forklift areas where minor contact may occur.
The curtain edges need to move smoothly through the guide entrances. Excessive vibration, poor alignment, or abrupt movement can affect how the curtain travels inside the zipper profiles.
A properly adjusted speed should allow rapid access without causing repeated guide release during normal operation.
The reset function helps reduce downtime after impact, but it should not be treated as permission to run the door at an unsuitable speed.
Repeated release still increases wear on the curtain edges and guide system. Traffic management and sensor timing remain important.
Stacking doors raise the curtain in horizontal folds using lifting belts and reinforcement sections.
Their structure provides greater stability for larger openings, but the added curtain weight and folding movement affect the speed profile.
Both sides of the door must rise evenly. If one belt moves differently from the other, increasing speed can make the imbalance more severe.
The door should first demonstrate stable, level folding before higher speed settings are considered.
Wind bars improve curtain stability, but they also add weight to the lifting system.
The motor, belts, frame, and control system must be designed for this additional load. A stacking door may operate differently from a lightweight PVC model even when both are described as high speed doors.
Spiral doors use rigid aluminum slats that move through side tracks and an upper spiral system.
They combine rapid operation with better wind resistance, insulation, security, and exterior performance.
Aluminum slats are heavier than PVC fabric. The drive system must accelerate and decelerate the rigid curtain smoothly to reduce stress on panel connections, tracks, and structural supports.
A well-controlled spiral door may feel fast even when its movement is less aggressive than a lightweight fabric curtain.
Rigid panels cannot flex around major guide misalignment. If the tracks or supporting frame move, high speed operation can create scratching, vibration, and panel damage.
The installation structure must be stable before the final speed is commissioned.
Cold storage doors are selected to reduce air exchange, condensation, and energy loss around chilled or frozen areas.
Fast opening is valuable, but the closing logic and sealing performance are equally important.
A deep-freeze opening may benefit from rapid passage because warm, moist air entering the room can create frost and ice.
However, a very fast closing cycle may cause repeated reversals if pallets or forklifts remain in the opening. The complete traffic sequence should be reviewed.
Curtains, seals, wireless batteries, sensors, and lubricants may behave differently in low-temperature conditions.
A speed setting that works at normal room temperature should be tested again under the actual cold storage environment.
The faster a door moves, the more important it becomes to detect traffic early and control the closing cycle accurately.
Safety should not be added after the speed has already been selected. Both should be designed as one system.
Photocells create a beam across the opening. If the beam is interrupted, the controller can stop or reverse the closing door.
Their position should reflect the type of traffic using the passage.
A low photocell can detect wheels, pallets, and people near the floor, but it may not detect a load projecting above the beam.
Mixed traffic or irregular loads may require additional photocells or a larger detection field.
A poorly aligned photocell may send intermittent signals while the frame vibrates.
At higher operating speeds, delayed or unstable signals can create repeated stopping and reversal. The sensor mounts and frame should remain stable during the complete cycle.
A safety edge on the lower bar can stop or reverse the door when it contacts an obstacle.
This provides an additional layer of protection when an object is not detected by the photocells.
A safety edge responds after physical contact occurs. Photocells and light curtains can detect the obstacle before contact.
For busy passages, both types of protection may be required rather than relying only on the bottom edge.
Wireless safety edges depend on batteries, transmitters, receivers, and stable communication.
The door speed should not be increased until the safety edge has been tested repeatedly under actual operating conditions.
Light curtains use multiple beams to cover more of the opening height.
They can provide more complete detection for mixed forklift and pedestrian traffic.
A larger detection field can identify objects that pass above or below a single photocell beam.
This is useful where loads vary in size or where people and vehicles share the opening.
Even an advanced light curtain can be affected by poor mounting, contamination, vibration, or obstructions around the opening.
The protection system should be tested with realistic traffic rather than only with an empty doorway.
A door cannot begin opening until it receives a signal.
If the sensor detects traffic late, increasing the opening speed may produce only a small improvement. Earlier and more accurate activation may reduce waiting more effectively.
Radar sensors are widely used for automatic forklift and pedestrian activation.
Their mounting angle, sensitivity, direction recognition, and detection distance influence the complete opening cycle.
When the radar detects an approaching forklift at a suitable distance, the door can begin opening before the vehicle reaches the entrance.
This allows the driver to maintain a controlled speed instead of braking sharply and accelerating again.
A detection zone that is too large may respond to traffic moving beside the door or away from the opening.
The door then operates more frequently, increasing wear and air exchange. Sensor accuracy is therefore part of speed optimization.
Induction loops are installed beneath the floor and respond to forklifts or other metal vehicles.
They can provide reliable vehicle activation when the approach path is clearly defined.
A loop installed too close to the door may not provide enough time for the opening to clear.
A loop installed too far away may trigger the door for vehicles that turn away before entering. The position should reflect the approach speed and traffic route.
Some loop systems can detect whether a vehicle remains near the opening.
This allows the controller to keep the door open until the vehicle has cleared the passage rather than relying only on a fixed timer.
Push buttons, pull cords, remote controls, and card readers provide intentional activation.
They may be more suitable where automatic sensors would detect too much unrelated movement.
In a low-traffic internal passage, a push button or pull cord may provide better environmental control than radar.
The door only opens when someone intends to pass through it.
A pull cord positioned too close to the opening may force forklift drivers to stop before activating the door.
Moving the activation point can improve traffic flow without increasing the door’s mechanical speed.
Buyers often compare only the curtain speed in meters per second. The facility experiences the complete cycle, including detection, controller response, acceleration, travel, deceleration, passage time, and closing delay.
Improving any one of these stages may make the door more efficient.
The useful performance measurement begins when the vehicle or person is detected, not when the curtain starts moving.
A delay between the sensor signal and motor movement can affect the total waiting time.
The door should begin moving promptly after receiving a valid opening command.
A noticeable delay may indicate programmed logic, interlock conditions, communication issues, or control-system limitations.
For vehicle traffic, the useful opening time ends when enough clearance is available for the vehicle and load.
The door may continue rising after the forklift begins passing. This should be considered when evaluating actual traffic efficiency.
The opening should remain available long enough for traffic to pass safely, but it should not remain open unnecessarily.
The timer and presence sensors should reflect the real traffic pattern.
A fixed short delay may cause the door to begin closing between two forklifts.
Presence detection, directional radar, or a longer delay may provide smoother operation during busy periods.
Some controllers can use different closing logic according to sensor status or operating mode.
The door may close promptly after isolated traffic while remaining open during continuous vehicle movement.
Opening speed influences how long conditioned air, dust, humidity, noise, and odors can move through the passage.
However, the door must also close at the right time and seal correctly.
A slow door may cause forklifts to wait while the opening remains partially exposed.
Faster clearing reduces this waiting period and allows the door to begin its closing cycle sooner.
A fast door that opens for unrelated movement may waste more energy than a slower door with accurate detection.
The number of unnecessary cycles can be as important as the duration of each opening.
Opening speed cannot compensate for damaged side seals, a worn bottom seal, or poor floor contact.
Energy performance depends on both the open cycle and the closed-door condition.
Temperature-controlled facilities often benefit from fast operation, but extremely aggressive settings may increase mechanical wear or safety reversals.
The selected speed should reduce exposure without making the door unstable.
A laboratory opening test does not show how long the door stays open while a forklift passes.
Observe real passage time, sensor behavior, and closing delay to understand the actual environmental exposure.
Airlocks and clean production entrances may use two doors to reduce direct air exchange.
The opening speed, interlock timing, and closing confirmation should work together. A faster single door does not automatically improve the complete airlock cycle.
Choosing a high speed door according to one catalogue figure can lead to disappointing performance.
The speed must be evaluated together with installation conditions, traffic, controls, and long-term operation.
The highest setting may appear to offer the best performance, but it can increase curtain movement, frame vibration, motor load, noise, and maintenance.
The door should operate only as fast as the application genuinely needs.
If the radar detects the forklift late, increasing the curtain speed may save only a small amount of time.
Improving the detection point could create a larger operational improvement with less mechanical stress.
A door that closes too quickly may repeatedly detect traffic and reopen.
The result is more cycles, longer exposure, and greater wear rather than improved efficiency.
A speed suitable for a small interior PVC door may not be appropriate for a large stacking or spiral door.
Moving weight, curtain stability, track design, and building support all influence safe operation.
The maximum published speed may apply only to certain dimensions or configurations.
Larger doors may require different motors, acceleration profiles, or reduced operating speeds.
A perfectly designed door cannot run smoothly on misaligned guides or an unstable support frame.
The final speed should be commissioned after the installation has been checked and adjusted.
A very aggressive speed may be acceptable when the door is new, but small amounts of wear and misalignment can become more noticeable over time.
A practical setting should remain stable throughout normal service conditions.
Curtain replacement, guide repair, motor changes, and controller updates can affect movement.
The door should be recommissioned rather than automatically using the previous speed settings.
New noise, slower movement, curtain vibration, or repeated reversals may indicate that the selected speed is no longer suitable under current conditions.
Early adjustment can prevent larger mechanical problems.
The final speed should be established during commissioning at the actual facility.
Factory settings provide a starting point, but the installed environment determines whether the door operates safely and efficiently.
The initial setting should allow technicians to confirm guide alignment, curtain movement, sensor response, and stopping positions.
Once the door operates consistently, the speed can be increased gradually if the application requires it.
Check whether the curtain or panels move evenly and whether the lower bar remains level.
Uneven movement should be corrected before increasing speed.
Knocking, scraping, rattling, and sudden vibration may show that the speed profile is too aggressive or that the structure is not correctly aligned.
The cause should be investigated rather than covered by control adjustments.
A successful empty-door test does not confirm that the complete application works correctly.
Forklifts, pedestrians, loads, and automated vehicles should be included during controlled commissioning.
Vehicles may approach from different angles and at different speeds.
The door should open early enough for the normal route without reacting excessively to traffic that is not entering.
Observe what happens when two vehicles approach with a short gap.
The door should not close between them or remain open for an unnecessarily long period after both vehicles have cleared the opening.
Photocells, safety edges, light curtains, emergency stops, and reversal functions should be tested at the selected operating speed.
The door should also stop accurately at the fully open and fully closed positions.
A single successful cycle is not enough to confirm stable operation.
Repeated testing can reveal intermittent sensor signals, vibration, heat, position drift, or control problems.
Opening speed, closing speed, acceleration, deceleration, closing delay, sensor settings, and position values should be documented.
These records help technicians restore the correct configuration after future maintenance or controller replacement.
The right high speed door opening speed is not simply the highest number available.
It should match the door type, opening dimensions, traffic speed, sensor position, safety system, environmental requirements, and cycle frequency. A well-selected speed allows traffic to move smoothly while protecting the curtain, motor, frame, and surrounding workers.
The best result comes from testing the complete door cycle under real operating conditions and adjusting the speed, detection, and closing logic as one coordinated system.
